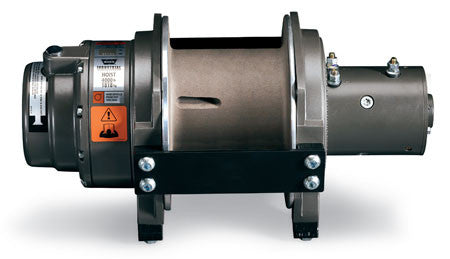

Warn 89833 INDUSTRIAL HOIST DC4000 12v
Original price
$ 0.00
-
Original price
$ 0.00
Original price
$ 0.00
$ 2,946.95
$ 2,946.95
-
$ 2,946.95
Current price
$ 2,946.95
| /
Availability:
Only 2 left!
INDUSTRIAL HOIST DC4000 12v
| |
|
| INDUSTRIAL HOIST DC4000 |
- Powerful series-wound DC motor with robust sealing
- Proven 3-stage all-metal gear train with permanent grease lubrication for years of trouble-free service
- Large-frame design with a cast aluminum drum provides plenty of wire rope capacity
- Automatic disc brake holds full rated load
- Durable powder-coated finish stands up to the elements
|
| DC4000 SPECS/PART NUMBERS |
|
Part Number: 89833 (12V) |
|
Part Number: 90124 (24V) |
|
Rated Capacity: 4000 lbf (1814 kgf) |
|
Drum Barrel Diameter: 6.40 in (163 mm) |
|
Drum Flange Diameter: 10.0 in (254 mm) |
|
Distance Between Flanges: 5.94 in (151 mm) |
|
Recommended Maximum Wire Rope Diameter: 3/8 in (9.5mm) |
|
Recommended Minimum Wire Rope Breaking Strength: 14400 lbf (6532 kgf) |
|
Approximate Shipping Weight: 89.0 lb (40.4kg) |
|
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m) |
|
Mounting Bolt Torque: 35 - 40 ft*lbf (47 - 54 N*m) |
|
Maximum Layers of Wire Rope: 3 |
|
Gear Reduction: 315 |
|
Brake Type: Automatic Disc |
|
Contactor/Remote Type: Not Included |
|
| ACCESSORIES |
|
Control Pack-12V: PN 39602 |
|
Control Pack-24V: PN 39603 |
|
Contactor Only-12V (Standard bracket): PN 34969 |
|
Contactor Only-24V (Standard bracket): PN 34970 |
|
Contactor Only-12V (w/ bracket for cover): PN 34975 |
|
Contactor Only-24V (w/ bracket for cover): PN 34976 |
|
Contactor Cover (with remote plug): PN 36648 |
|
Contactor Cover (no plug): PN 35169 |
|
Remote Control Only: PN 88528 |
| PERFORMANCE BY LAYER - 12V |
| Drum Layer |
Line Load * |
No Load Line Speed |
Drum Capacity |
| lbf |
kgf |
kN |
ft/min |
m/min |
ft |
m |
| 1 |
4000 |
1814 |
17.8 |
27.5 |
8.4 |
25 |
7.6 |
| 2 |
3601 |
1633 |
16.0 |
30.5 |
9.3 |
53 |
16.2 |
| 3 |
3275 |
1486 |
14.6 |
33.6 |
10.2 |
83 |
25.3 |
| * Never exceed the Rated Capacity. Installation of a Rated Capacity Limiter is recommended. |
| FIRST LAYER PERFORMANCE - 12V |
| Line Load |
Current Draw |
Line Speed |
Duty Cycle |
| lbf |
kgf |
Amps |
ft/min |
m/min |
min/10min |
| 0 |
0 |
89 |
27.5 |
8.4 |
6.5 |
| 1000 |
454 |
132 |
19.3 |
5.9 |
3.5 |
| 2000 |
907 |
176 |
15.0 |
4.6 |
2.5 |
| 3000 |
1361 |
215 |
12.6 |
3.8 |
1.9 |
| 4000 |
1814 |
257 |
10.8 |
3.3 |
1.5 |
| PERFORMANCE BY LAYER - 24V |
| Drum Layer |
Line Load * |
No Load Line Speed |
Drum Capacity |
| lbf |
kgf |
kN |
ft/min |
m/min |
ft |
m |
| 1 |
4000 |
1814 |
17.8 |
34.0 |
10.4 |
25 |
7.6 |
| 2 |
3601 |
1633 |
16.0 |
37.8 |
11.5 |
53 |
16.2 |
| 3 |
3275 |
1486 |
14.6 |
41.5 |
12.6 |
83 |
25.3 |
| * Never exceed the Rated Capacity. Installation of a Rated Capacity Limiter is recommended. |
| FIRST LAYER PERFORMANCE - 24V |
| Line Load |
Current Draw |
Line Speed |
Duty Cycle |
| lbf |
kgf |
Amps |
ft/min |
m/min |
min/10min |
| 0 |
0 |
70 |
34.0 |
10.4 |
3.1 |
| 1000 |
454 |
100 |
27.1 |
8.3 |
2.7 |
| 2000 |
907 |
133 |
21.7 |
6.6 |
2.3 |
| 3000 |
1361 |
162 |
18.5 |
5.6 |
1.9 |
| 4000 |
1814 |
195 |
16.4 |
5.0 |
1.5 |
|
Buy with confidence from Montana Jack's, we are your WARN Authorized Warranty and Service Center.
We are a Factory Direct WARN Distributor and we stand behind our WARN products for the full manufacturer's warranty period.
WRN-89833
|
