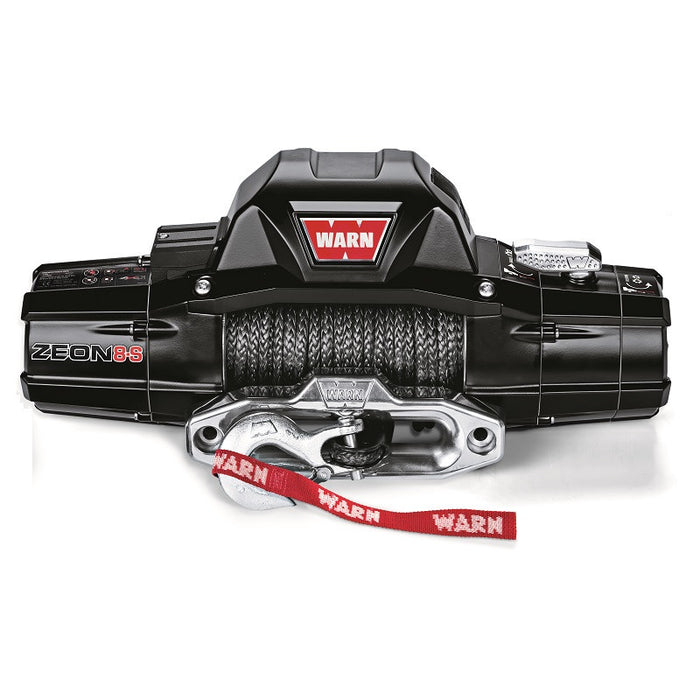

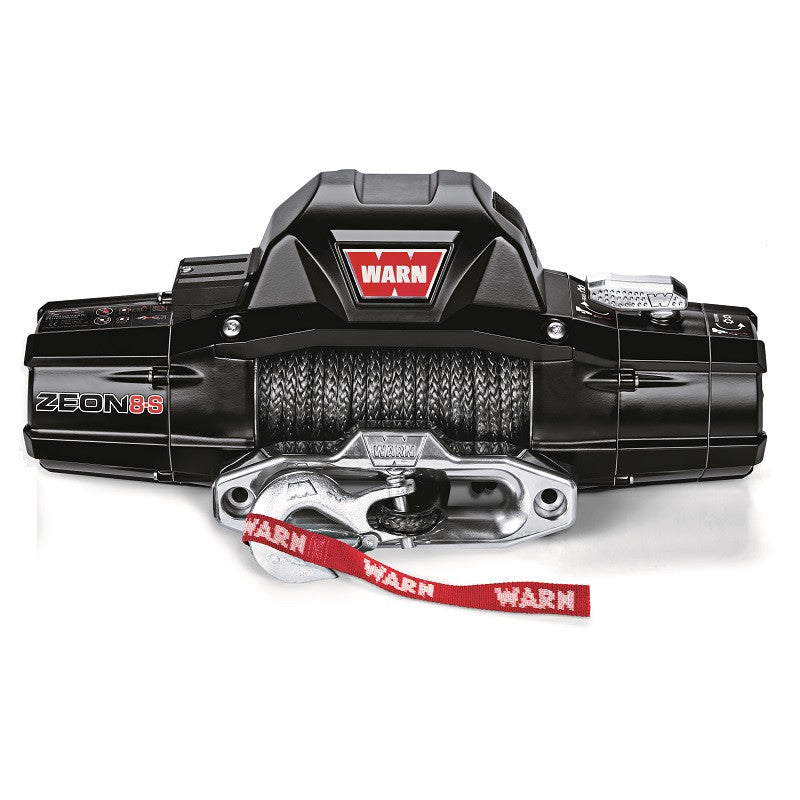

WARN 89305 Zeon 8-S Truck Winch (Synthetic)

$ 1,179.99

WARN Zeon 8-S Truck Winch (Synthetic)

Don't let the good looks fool you. Warn has packed the ZEON 8-S winch with all the performance features off-roaders said they needed most. From a heat-dissipating brake down to an incredibly smooth planetary gear train, this winch is ready to hit the trail.

The 8,000 lb. pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs.

Includes 100' of 3/8" WARN Spydura synthetic rope, which includes a temperature-resistant sleeve on the first layer, a ballistic nylon sliding sleeve for abrasion resistance, and a polished aluminum hawse fairlead.

Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately*).

Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.

Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.

Backed by the WARN Limited Lifetime Warranty

*Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)

ZEON 8-S SPECS/PART NUMBER

Part number: 89305
Rated line pull: 8000 lbs. (3630 kg) single-line
Motor: 12V DC, series wound
Electrical controls: Contactor
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 162:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone
Drum diameter/Length: 3.15"/9.0" (80mm/229mm)
Weight (kit shipping): 75 lbs. (42 kg)
Rope: 3/8" x 100' (9.5mm x 30.5m) Spydura synthetic
Fairlead: Hawse
Recommended Battery: 650 CCA minimum for winching
Battery leads: 25mm gauge, 72" (1.83m)
Finish: Satin-black powder coat
Warranty: Limited lifetime
12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 42 (12.8) 63 amps 1/8000 (3629)
2000 (910) 17.2 (5.2) 167 amps 2/6777 (3074)
4000 (1810) 11.7 (3.6) 255 amps 3/5878 (2666)
6000 (2720) 8.5 (2.6) 335 amps 4/5189 (2353)
8000 (3630) 6.2 (1.9) 413 amps
Above performance specs are based on first layer of drum

Winch Dimensions:
Integrated configuration: 24.25" L x 7.15" D x 10.52" H
(615.9mm L x 181.6mm D x 267.1mm H)
Low-profile configuration: 24.25" L x 7.15" D x 7.84" H
(615.9mm L x 181.6mm D x 199.02mm H)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
ZEON Rope Installation Video
