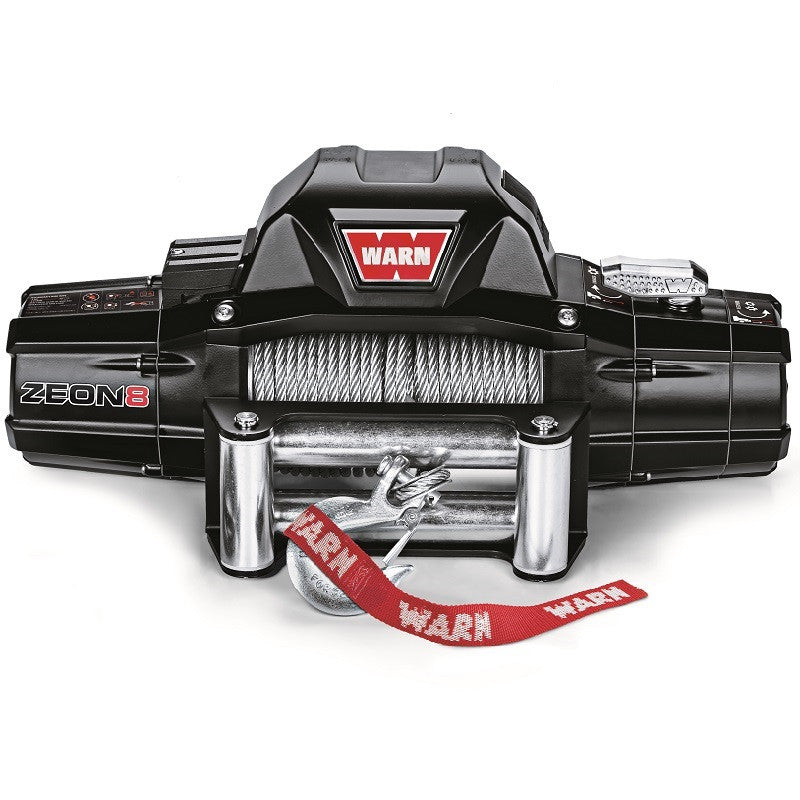

WARN 88980 Zeon 8 Truck Winch

WARN 88980 Zeon 8 Truck Winch, 8000 lb Rating, Lifetime Warranty!

by Warn
$ 0.00 - $ 0.00
$ 0.00
$ 1,134.51
$ 1,134.51 - $ 1,134.51
$ 1,134.51
SKU WRN-88980
Availability:
Only 2 left!



WARN® ZEON® 8

Advanced, capable, and strong
Don't let the good looks fool you. We've packed the ZEON 8 winch with all the performance features off-roaders said they needed most. From a heat-dissipating brake down to an incredibly smooth planetary gear train, this winch is ready to hit the trail. The 8,000 lb. pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs.
  • 8,000 lb. (3630 kg) single-line pulling capacity
  • 100' of durable 5/16" galvanized steel wire rope
  • Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately*).
  • Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
  • Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
  • Backed by the WARN Limited Lifetime Warranty
*Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)
ZEON 8 SPECS/PART NUMBER
Part number: 88980
Rated line pull: 8000 lbs. (3630 kg) single-line
Motor: 12V DC, series wound
Electrical controls: Contactor
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 162:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone
Drum diameter/Length: 3.15"/9.0" (80mm/229mm)
Weight (kit shipping): 94 lbs. (42 kg)
Rope: 5/16" x 100' (8mm x 30.5m) steel
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 25mm gauge, 72" (1.83m)
Finish: Satin-black powder coat
Warranty: Limited lifetime
12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)		 Line Speed
FT./min(M/min.)		 Motor
Current		 Pull by layer
layer/Lbs(Kgs.)
0 35 (12.8) 63 amps 1/8000 (3629)
2000 (910) 17.2 (5.2) 167 amps 2/6777 (3074)
4000 (1810) 11.7 (3.6) 255 amps 3/5878 (2666)
6000 (2720) 8.5 (2.6) 335 amps 4/5189 (2353)
8000 (3630) 6.2 (1.9) 413 amps

Above performance specs are based on first layer of drum
Winch Dimensions:
Integrated configuration: 24.25" L x 7.15" D x 10.52" H
(615.9mm L x 181.6mm D x 267.1mm H)
Low-profile configuration: 24.25" L x 7.15" D x 7.84" H
(615.9mm L x 181.6mm D x 199.02mm H)

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)



Buy with confidence from Montana Jack's, we are your WARN Authorized Warranty and Service Center.
We are a Factory Direct WARN Distributor and we stand behind our WARN products for the full manufacturer's warranty period.
