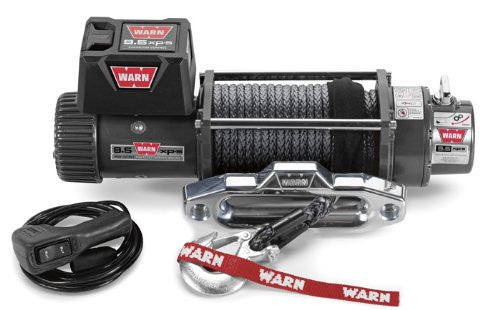

WARN 87310 9.5XP-S 12 Volt Winch w/Synthetic Rope

by Warn
Sold out
Original price $ 0.00 - Original price $ 0.00
Original price $ 0.00
$ 2,621.93
$ 2,621.93 - $ 2,621.93
Current price $ 2,621.93
SKU WRN-87310
Availability:
Out of stock

WARN 9.5XP-S 12 Volt Winch w/Synthetic Rope

Currently ships direct from WARN, usually ships in 2-4 days, please call for availability


WARN 9.5xp-s
Fast, powerful and reliable - for extreme conditions
The fast, powerful 9.5xp Extreme Performance winch is designed for the serious off-roader who demands a winch that will perform under the most extreme conditions in the world. With 9,500 lbs. of pulling power and the fastest line speed of any WARN winch under load, the 9.5xp delivers extreme performance that eats up the competition-even in competition
  • Now available with WARN Spydura synthetic rope with polished aluminum hawse fairlead
  • High-output parallel series wound winch motor is the strongest and most durable in the industry
  • Extreme-duty winch sealing. Enables superior water resistance
  • Exclusive brake design. Provides superior operator control when winching
  • Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls
  • 3-Stage planetary geartrain. Proven to be the most reliable efficient and durable design
  • Remote-mount, next-generation control box allows for various mounting options
  • Remote control with 12' (3.7m) lead
  • High gloss, chip-resistant powder coat finish. Provides superior corrosion resistance
  • 100' of WARN Spydura synthetic rope


9.5xp-s SPECS/PART NUMBERS
Winch model: 9.5xp-s
Part Number: 87310 (9.5xp-s, synthetic rope, 12V, currently not CE compliant)
Rated Line Pull: 9,500 lbs. (4310 kgs) single-line
Motor: 12V 6 hp (4.48kw), High output parallel series wound
Electrical controls: Contactor
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 156:1
Clutch (freespooling): Sliding ring gear
Brake: Automatic mechanical cone brake
Rope: Spydura synthetic -- 100', 3/8" diameter (30m, 9.5mm diam.)
Fairlead: Polished aluminum hawse fairlead
Recommended battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: High-gloss powder coat over primer undercoating
Drum diameter/Length: 2.625"/9.0" (6.67cm/23cm)
Weight: 68 Lbs. (30.8 kg)
12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 37.5 (11.43) 71 amps 1/9500 (4313)
2000 (910) 16.6 (5.06) 169 amps 2/8650 (4927)
4000 (1810) 11.8 (3.60) 248 amps 3/7920 (3595)
6000 (2720) 9.3 (2.83) 328 amps 4/7400 (3359)
8000 (3630) 7.4 (2.25) 413 amps 5/6940 (3150)
9500 (4310) 6.2 (1.89) 482 amps

Above performance specs are based on first layer of drum

Winch Dimensions: 22.7" L. x 6.3" D. x 7.7" H.
(577mm L. x 160mm D. x 196 mm H)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
