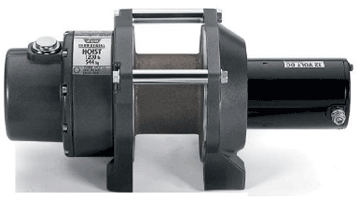

DC WARN DC 1200 Hoist 24 Volt
| |
| INDUSTRIAL HOIST DC1200 |
| The DC1200 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC1200 hoist is built on a compact midsize framed with integrated tie bars that's easy to install. Controls and accessories available separately. |
| DC1200 SPECS/PART NUMBERS |
|
Part Number: 64254 12V |
|
Part Number: 85250 24V |
|
Rated Capacity: 1200 lbf (544 kgf) |
|
Drum Barrel Diameter: 3.5 in (89 mm) |
|
Drum Flange Diameter: 6.0 in (152 mm) |
|
Distance Between Flanges: 2.7 in (69 mm) |
|
Recommended Maximum Wire Rope Diameter: 3/16 in (4.8 mm) |
|
Recommended Wire Rope Breaking Strength: 4200 lbf (1905 kfg) |
|
Approximate Shipping Weight: 27 lb (12.2 kg) |
|
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m) |
|
Mounting Bolt Torque: 32-34 ft*lbf (43 - 46 N*m) |
|
Maximum Layers of Wire Rope: 4 |
|
Gear Reduction: 216:1 |
|
Brake Type: Automatic Cone |
|
Contactor/Remote Type: Not Included |
Standards Compliance:
CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC
ASME B30.5 |
|
| ACCESSORIES |
|
Control Pack-12V: PN 63926 |
|
Control Pack-24V: PN 84710 |
|
Contactor Only-12V (Standard bracket): PN 83321 |
|
Contactor Only-24V (Standard bracket): PN 83322 |
|
Contactor Cover (with remote plug): PN 36648 |
|
Contactor Cover (w/o remote plug): PN 35169 |
|
Remote Control Only: PN 88528 |
| PERFORMANCE BY LAYER - 12V |
| Drum Layer |
Line Load * |
No Load Line Speed |
Drum Capacity |
| lbf |
kgf |
kN |
ft/min |
m/min |
ft |
m |
| 1 |
1200 |
544 |
5.3 |
23.5 |
7.2 |
13 |
4.0 |
| 2 |
1090 |
494 |
4.8 |
25.8 |
7.9 |
27 |
8.2 |
| 3 |
1000 |
454 |
4.4 |
28.2 |
8.6 |
42 |
12.8 |
| 4 |
920 |
417 |
4.1 |
30.6 |
9.3 |
58 |
17.7 |
| * Never exceed the Rated Capacity. Installation of a Rated Capacity Limiter is recommended. |
| FIRST LAYER PERFORMANCE - 12V |
| Line Load |
Current Draw |
Line Speed |
Duty Cycle |
| lbf |
kgf |
Amps |
ft/min |
m/min |
min/10min |
| 0 |
0 |
20 |
23.5 |
7.2 |
2.5 |
| 300 |
136 |
39 |
21.0 |
6.4 |
2.2 |
| 600 |
272 |
57 |
19.0 |
5.8 |
1.9 |
| 900 |
408 |
77 |
17.0 |
5.2 |
1.6 |
| 1200 |
544 |
100 |
15.0 |
4.6 |
1.3 |
| PERFORMANCE BY LAYER - 24V |
| Drum Layer |
Line Load * |
No Load Line Speed |
Drum Capacity |
| lbf |
kgf |
kN |
ft/min |
m/min |
ft |
m |
| 1 |
1200 |
544 |
5.3 |
21.5 |
6.6 |
13 |
4.0 |
| 2 |
1090 |
494 |
4.8 |
23.6 |
7.2 |
27 |
8.2 |
| 3 |
1000 |
454 |
4.4 |
25.8 |
7.9 |
42 |
12.8 |
| 4 |
920 |
417 |
4.1 |
28.0 |
8.5 |
58 |
17.7 |
| * Never exceed the Rated Capacity. Installation of a Rated Capacity Limiter is recommended. |
| FIRST LAYER PERFORMANCE - 24V |
| Line Load |
Current Draw |
Line Speed |
Duty Cycle |
| lbf |
kgf |
Amps |
ft/min |
m/min |
min/10min |
| 0 |
0 |
10 |
21.5 |
6.6 |
2.5 |
| 300 |
136 |
18 |
19.2 |
5.9 |
2.2 |
| 600 |
272 |
26 |
17.5 |
5.3 |
1.9 |
| 900 |
408 |
35 |
16.3 |
5.0 |
1.6 |
| 1200 |
544 |
45 |
14.6 |
4.5 |
1.3 |
