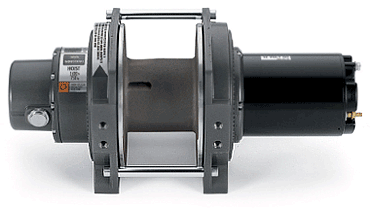

WARN INDUSTRIAL HOIST DC1600 24V
| |
|
| INDUSTRIAL HOIST DC1600 |
The DC1600 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC1600 hoist is built on WARN's robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity. Controls and accessories available separately.
|
| DC1600 SPECS/PART NUMBERS |
|
Part Number: 33503 12V |
|
Part Number: 85159 24V |
|
Rated Capacity: 1600 lbf (726 kgf) |
|
Drum Barrel Diameter: 4.25 in (108 mm) |
|
Drum Flange Diameter: 8.25 in (210mm) |
|
Distance Between Flanges: 3.79 in (96mm) |
|
Recommended Maximum Wire Rope Diameter: 1/4 in (6.4 mm) |
|
Recommended Wire Rope Breaking Strength: 7000 lbf (3175 kgf) |
|
Approximate Shipping Weight: 50 lbs. (22.7 kg) |
|
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m) |
|
Mounting Bolt Torque: 35-40 ft*lbf (47 - 54 N*m) |
|
Maximum Layers of Wire Rope: 5 |
|
Gear Reduction: 261 |
|
Brake Type: Automatic Cone |
|
Contactor/Remote Type: Not Included |
Standards Compliance:
CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC
ASME B30.5 |
|
| ACCESSORIES |
|
Control Pack-12V: PN 40709 |
|
Control Pack-24V: PN 63752 |
|
Contactor Only-12V (Standard bracket): PN 34440 |
|
Contactor Only-24V (Standard bracket): PN 34968 |
|
Contactor Only-12V (w/ bracket for cover): PN 34973 |
|
Contactor Only-24V (w/ bracket for cover): PN 34974 |
|
Contactor Cover (with remote plug): PN 36648 |
|
Contactor Cover (no plug): PN 35169 |
|
Remote Control Only: PN 88528 |
| PERFORMANCE BY LAYER - 12V |
| Drum Layer |
Line Load * |
No Load Line Speed |
Drum Capacity |
| lbf |
kgf |
kN |
ft/min |
m/min |
ft |
m |
| 1 |
1600 |
726 |
7.1 |
14.7 |
4.5 |
16 |
4.9 |
| 2 |
1440 |
653 |
6.4 |
16.3 |
5.0 |
34 |
10.4 |
| 3 |
1312 |
595 |
5.8 |
18.0 |
5.5 |
53 |
16.2 |
| 4 |
1200 |
544 |
5.3 |
19.6 |
6.0 |
74 |
22.6 |
| 5 |
1104 |
501 |
4.9 |
21.2 |
6.5 |
97 |
29.6 |
| * Never exceed the Rated Capacity. Installation of a Rated Capacity Limiter is recommended. |
| FIRST LAYER PERFORMANCE - 12V |
| Line Load |
Current Draw |
Line Speed |
Duty Cycle |
| lbf |
kgf |
Amps |
ft/min |
m/min |
min/10min |
| 0 |
0 |
13 |
14.7 |
4.5 |
Continuous |
| 400 |
181 |
31 |
13.8 |
4.2 |
Continuous |
| 800 |
363 |
53 |
13.4 |
4.1 |
5.8 |
| 1200 |
544 |
74 |
12.9 |
3.9 |
3.6 |
| 1600 |
726 |
95 |
12.5 |
3.8 |
2.6 |
| PERFORMANCE BY LAYER - 24V |
| Drum Layer |
Line Load * |
No Load Line Speed |
Drum Capacity |
| lbf |
kgf |
kN |
ft/min |
m/min |
ft |
m |
| 1 |
1600 |
726 |
7.1 |
14.3 |
4.4 |
16 |
4.9 |
| 2 |
1440 |
653 |
6.4 |
15.9 |
4.8 |
34 |
10.4 |
| 3 |
1312 |
595 |
5.8 |
17.5 |
5.3 |
53 |
16.2 |
| 4 |
1200 |
544 |
5.3 |
19.1 |
5.8 |
74 |
22.6 |
| 5 |
1104 |
501 |
4.9 |
20.6 |
6.3 |
97 |
29.6 |
| * Never exceed the Rated Capacity. Installation of a Rated Capacity Limiter is recommended. |
| FIRST LAYER PERFORMANCE - 24V |
| Line Load |
Current Draw |
Line Speed |
Duty Cycle |
| lbf |
kgf |
Amps |
ft/min |
m/min |
min/10min |
| 0 |
0 |
6 |
14.3 |
4.4 |
Continuous |
| 400 |
181 |
15 |
14.0 |
4.3 |
Continuous |
| 800 |
363 |
23 |
13.8 |
4.2 |
Continuous |
| 1200 |
544 |
33 |
13.3 |
4.1 |
6.8 |
| 1600 |
726 |
43 |
13.0 |
4.0 |
4.6 |
|
|
