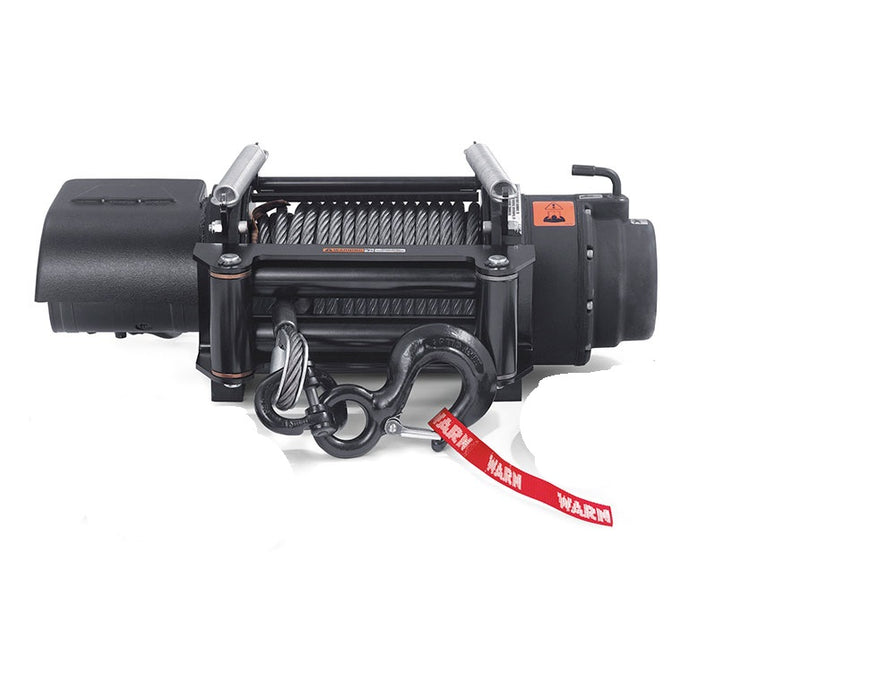

Severe Duty 18 24v Electric Self Recovery Winch
This is an oversized item and requires truck freight, freight charges to the lower 48 states are included in price. Buyer may have to pickup at freight dock or pay extra liftgate/residential charge.
| Severe Duty 18 24V Electric Self Recovery Winch
|
- 24 volt DC electric-powered winch is rated to pull 18,000 lb. (8,165 kg) pull rating
-
Waterproof construction
- Silicone sealing at all motor and gear housing joints
- Double lip, spring sealing at drum supports
- Contactor and motor are potted in a two-part silicone compound and sealed
- Superior corrosion resistance:
- E-coat, CARC coating provides maximum chemical resistance
- Stainless steel fasteners
- 4.5 hp series-wound motor
- 3-stage planetary gear train
- Includes thermal protection switch and compatible with optional Over Load Interrupt module
- Automatic heavy-duty brake
- Industrial contactor and remote control

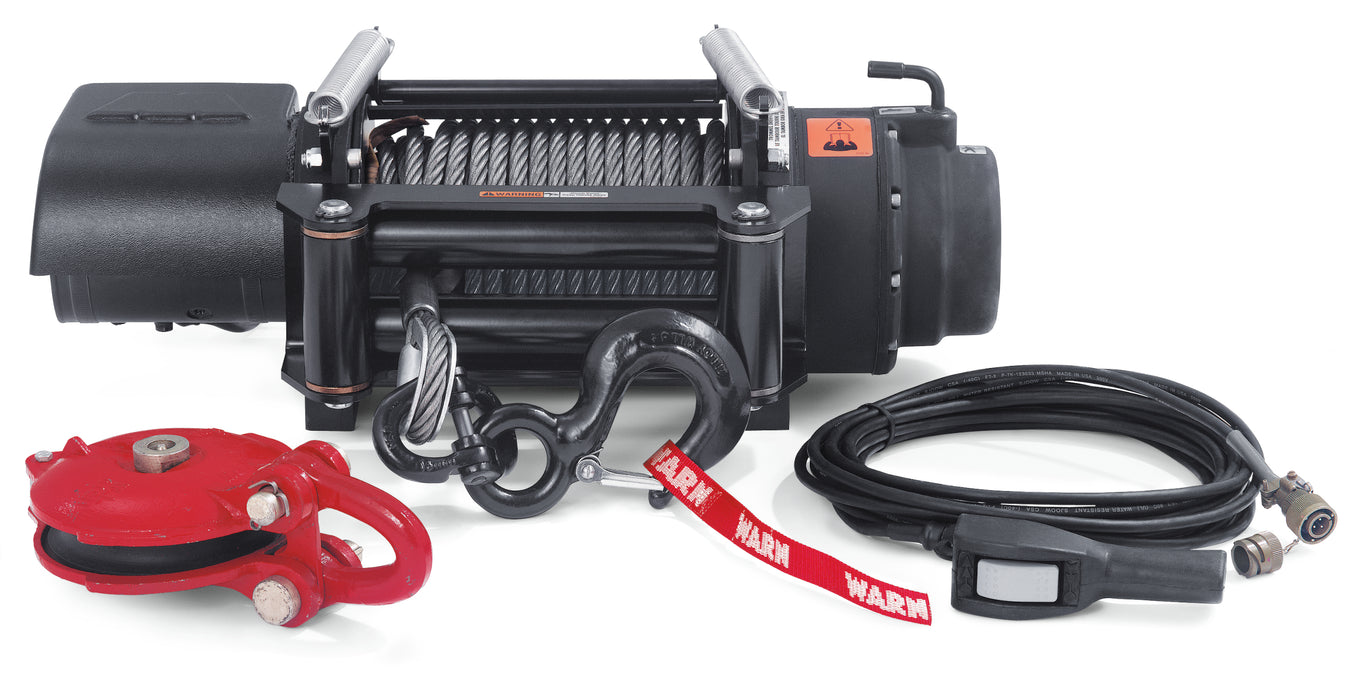

- Available with a range of options including wire rope, snatch block, tensioner, and accessories.
|
| SEVERE DUTY 18 SPECS/PART NUMBERS |
| Part Number: 80907 (call for options) |
| Maximum Rated Load: 18,000 lbs. (8165 kg) |
| Maximum Wire Rope Recommendation: 1/2" (12.7 mm) |
| Drum Barrel Diameter: 4" (101.6 mm) |
| Drum Flange Diameter: 8.24 inches (209.3 mm) |
| Contactor: Industrial type, 3-coil |
| Gear Ratio: 315:1 |
Standards Compliance:
- MIL-STD-339, sec 800, 3.2.2, 3.2.3
- MIL-STD-1184, Type III, Class 1, test method 100 - waterproofing
- SAE J706
- CE Machinery Directive 98/37/EEC and 2006/42/EC
- CE EMC Directive 2004/108/EC
- ASTM B117- 408 hours, Corrosion rating per ASTM D1654
|
|
| PERFORMANCE DATA - First Layer of Drum |
Line Load
lb. (kg) |
Line Speed
ft/min (m/min) |
Motor Current
Amps |
Duty Cycle
min/10 min |
| 0 |
18.1 (5.6) |
58.1 |
4.3 |
| 3000 (1361) |
11.0 (3.4) |
104.0 |
2.0 |
| 6000 (2722) |
8.6 (2.6) |
137.8 |
1.5 |
| 9000 (4082) |
7.1 (2.2) |
169.4 |
1.2 |
| 12000 (5443) |
6.0 (1.8) |
209.7 |
0.9 |
| 15000 (6804) |
4.9 (1.5) |
253.2 |
0.7 |
| 18000 (8165) |
4.6 (1.4) |
278.2 |
0.7 |
| PERFORMANCE DATA - By Rope Layer |
| Layer |
Line Pull
lb. (kg) |
Line Speed
ft. min. (m/min.) |
1/2" Wire Rope Capacity ft. (m) |
| 1 |
18000 (8165) |
18.5 (5.6) |
20 (6.1) |
| 2 |
14727 (6680) |
22.2 (6.8) |
45 (13.7) |
| 3 |
12462 (5653) |
26.7 (8.1) |
75 (22.9) |
|
