WARN 80010 - 1000 lb Utility Winch, 120 volt AC power

by Warn
Sold out
Original price $ 0.00 - Original price $ 0.00
Original price $ 0.00
$ 571.35
$ 571.35 - $ 571.35
Current price $ 571.35
SKU WRN-80010
Availability:
Out of stock

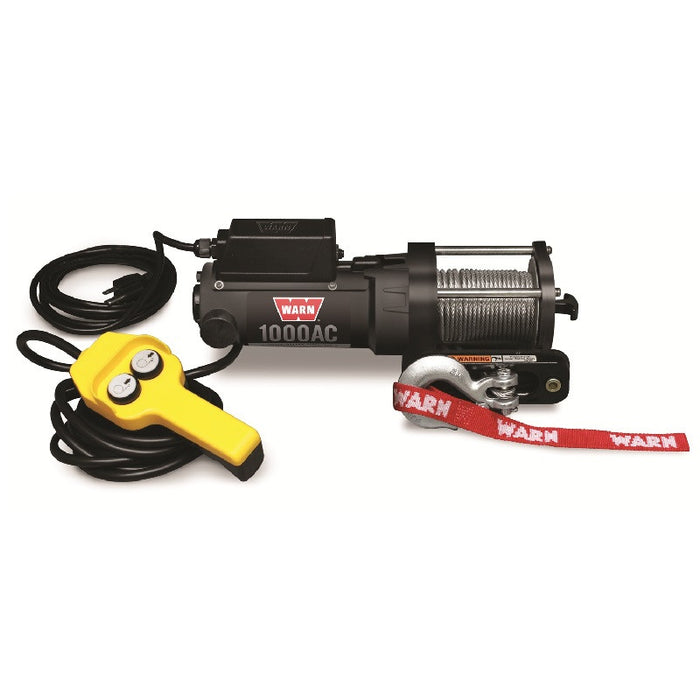

WARN 1000 lb Utility Winch, 120 volt AC power

Includes Hawse Fairlead, Corded 10 ft. Remote Control, 43' x 3/16" wire rope with latched hook, and mounting hardware



WARN 1000AC
Ideal for use anywhere 120-Volt AC power is available
Wherever there is a wall socket, you can now pull or drag just about anything anywhere with the versatile WARN 1000AC Utility Winch. The 1000AC winch delivers 1,000 lbs. of pulling capacity, 43' of wire rope, a long duty cycle and legendary WARN durability make this a tool you can rely on to get the job done.
1000AC SPECS
Part Number: 80010 * Product not sold in Canada
Capacity: 1,000 lbs (454 kg)
Motor: Permanent Magnet
Horsepower: 0.8hp (600w)
Power Source: 120V AC, GFCI
Switch Type:  Remote With 10' (3 m) Lead
Geartrain: Planetary, Differential Planetary
Gear Ratio: 261:1
Clutch (freespooling): Pull & Turn
Brake: Self Braking Transmission
Warranty: 1 year limited
Wire Rope: 3/16" x 43' (4.8mm x 13.1 m)
Length: 15.42" (39.2cm)
Drum Diameter: 2.0" (52mm)
Fairlead: Hawse
Hole Pattern: 4 holes 3.1" x 2.5" (78.8mm x 63.5mm)
Weight: 26.5 lbs (12.0 kgs)
PERFORMANCE SPECS (first layer of drum)
Load
Lbs. (kg)
Line Speed
Ft./min. (M/min)
Motor Current, Amps
(At 120 VAC)
0 (0) 9.8 (3.0) 0.4
250 (113) 7.9 (2.4) 1.8
500 (227) 6.9 (2.1) 3.1
750 (340) 6.1 (1.8) 4.5
1000 (454) 5.5 (1.7) 6


Buy with confidence from Montana Jack's, we are your WARN Authorized Warranty and Service Center.
We are a Factory Direct WARN Distributor and we stand behind our WARN products for the full manufacturer's warranty period.

WRN-80010
