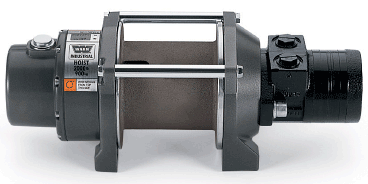

WARN 68032 HY2000 Industrial Hydraulic Hoist

by Warn
Original price $ 0.00 - Original price $ 0.00
Original price $ 0.00
$ 1,912.08
$ 1,912.08 - $ 1,912.08
Current price $ 1,912.08
SKU WRN-68032
Availability:
Only 2 left!

HY2000 INDUSTRIAL HOIST



HY2000 INDUSTRIAL HOIST
The HY2000 hoist combines a powerful and efficient hydraulic motor with robust sealing and our proven 2-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The HY2000 hoist is built on a compact midsize frame with integrated tie bars that's easy to install.

PN 68032
HY2000 SPECS/PART NUMBERS
Part Number: 68032
Rated Capacity: 2000 lbf (907kgf)
Drum Barrel Diameter: 4.25 in (108 mm)
Drum Flange Diameter: 6.25 in (159 mm)
Distance Between Flanges: 4.5 in (114 mm)
Recommended Maximum Wire Rope Diameter: 1/4 in (6.4 mm)
Recommended Wire Rope Breaking Strength: 7000 lbf (3175 kgf)
Approximate Shipping Weight: 40 lbs. (18.1 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)
Mounting Bolt Torque: 32 - 34 ft*lbf (43 - 46 N*m)
Maximum Layers of Wire Rope: 2
Gear Reduction: 26:1
Brake Type: Automatic Cone
Standards Compliance:
CE Machinery Directive 98/37/EC and 2006/42/EC
ASME B30.5
ACCESSORIES
Wire Rope Assy-1/4" x 60ft: PN 71297
Wire Rope Assy-1/4" x 50ft: PN 24891
Wire Rope Assy-1/4" x 40ft: PN 24890
Wire Rope Assy-1/4" x 25ft: PN 24889

PERFORMANCE BY LAYER
Drum Layer Line Load * Line Speed at 10 GPM Drum Capacity
lbf kgf kN ft/min m/min ft m
1 2000 907 8.9 46.0 14.0 20 6.1
2 1800 816 8.0 52.0 15.8 43 13.1
* Never exceed the Rated Capacity. Installation of a Rated Capacity Limiter is recommended.

FIRST LAYER PERFORMANCE
Line Load Pressure Drop
at 5 GPM
Pressure Drop
at 10 GPM
Duty Cycle
lbf kgf psi BAR psi BAR min/10min
0 0 85 5.9 400 27.6 Continuous
500 227 275 19.0 500 34.5 Continuous
1000 454 495 34.1 691 47.6 6.0
1500 680 710 49.0 878 60.5 3.0
2000 907 900 62.1 1065 73.4 2.2


Buy with confidence from Montana Jack's, we are your WARN Authorized Warranty and Service Center.
We stand behind our WARN products for the full manufacturer's warranty period.

WRN-68032
