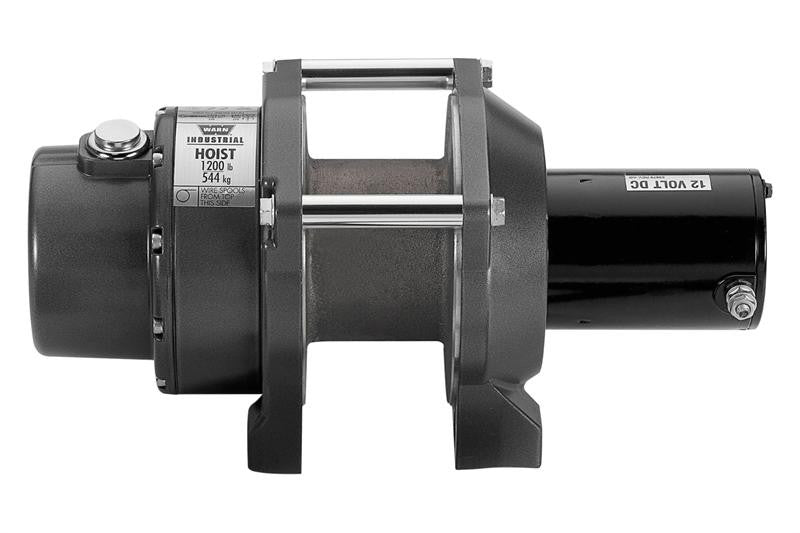

WARN 64254 DC 1200 Hoist 12 Volt, Automatic Cone Type Brake

WARN 64254 DC 1200 Hoist 12 Volt, Automatic Cone Type Brake

by Warn
$ 0.00 - $ 0.00
$ 0.00
$ 1,092.95
$ 1,092.95 - $ 1,092.95
$ 1,092.95
SKU WRN-64254
Availability:
3 in stock, ready to be shipped

WARN DC 1200 Hoist 12 Volt



INDUSTRIAL HOIST DC1200
The DC1200 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC1200 hoist is built on a compact midsize framed with integrated tie bars that's easy to install. Controls and accessories available separately.

DC1200 SPECS/PART NUMBERS
Part Number: 64254 12V
Rated Capacity: 1200 lbf (544 kgf)
Drum Barrel Diameter: 3.5 in (89 mm)
Drum Flange Diameter: 6.0 in (152 mm)
Distance Between Flanges: 2.7 in (69 mm)
Recommended Maximum Wire Rope Diameter: 3/16 in (4.8 mm)
Recommended Wire Rope Breaking Strength: 4200 lbf (1905 kfg)
Approximate Shipping Weight: 27 lb (12.2 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)
Mounting Bolt Torque: 32-34 ft*lbf (43 - 46 N*m)
Maximum Layers of Wire Rope: 4
Gear Reduction: 216:1
Brake Type: Automatic Cone
Contactor/Remote Type: Not Included
Standards Compliance:
CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC
ASME B30.5
ACCESSORIES
Control Pack-12V: PN 63926
Contactor Only-12V (Standard bracket): PN 83321
Contactor Cover (with remote plug): PN 36648
Contactor Cover (w/o remote plug): PN 35169
Remote Control Only: PN 88528

PERFORMANCE BY LAYER - 12V
Drum Layer Line Load * No Load Line Speed Drum Capacity
lbf kgf kN ft/min m/min ft m
1 1200 544 5.3 23.5 7.2 13 4.0
2 1090 494 4.8 25.8 7.9 27 8.2
3 1000 454 4.4 28.2 8.6 42 12.8
4 920 417 4.1 30.6 9.3 58 17.7
* Never exceed the Rated Capacity. Installation of a Rated Capacity Limiter is recommended.

FIRST LAYER PERFORMANCE - 12V
Line Load Current Draw Line Speed Duty Cycle
lbf kgf Amps ft/min m/min min/10min
0 0 20 23.5 7.2 2.5
300 136 39 21.0 6.4 2.2
600 272 57 19.0 5.8 1.9
900 408 77 17.0 5.2 1.6
1200 544 100 15.0 4.6 1.3


Buy with confidence from Montana Jack's, we are your WARN Authorized Warranty and Service Center.
We are a Factory Direct WARN Distributor and we stand behind our WARN products for the full manufacturer's warranty period.
