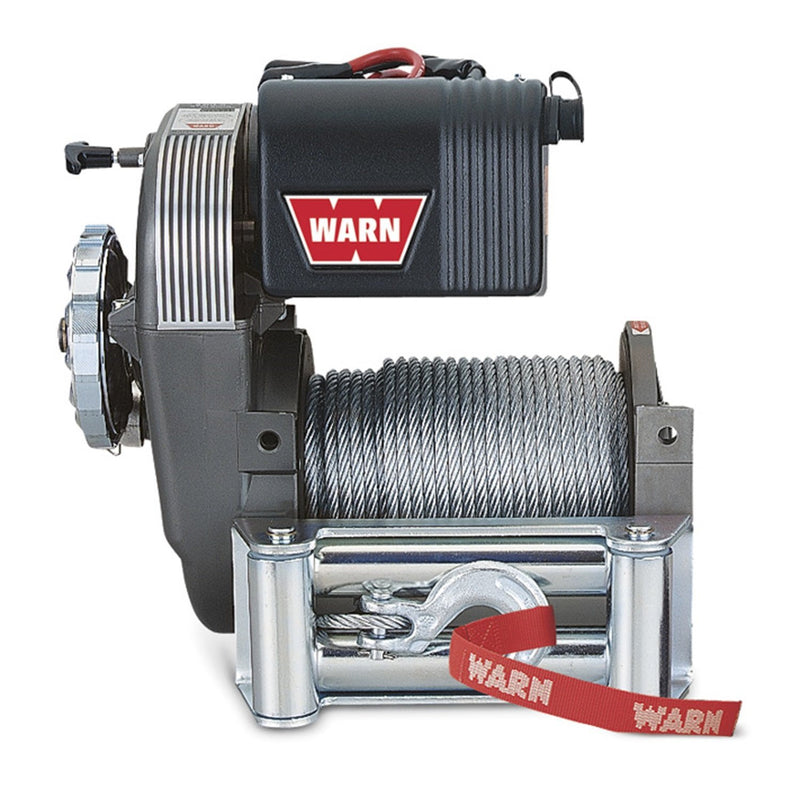

WARN 38631 - 8274-50 Truck Winch 12Volt with 150 foot cable

WARN 38631 M8274-50 DISCONTINUED, see 106170 and 106175 10,000 lb versions!

by Warn
Sold out
$ 0.00 - $ 0.00
$ 0.00
$ 0.00
$ 0.00 - $ 0.00
$ 0.00
SKU WRN-38631
Availability:
Out of stock

WARN 8274-50 Winch ,12Volt ,150 foot wire cable

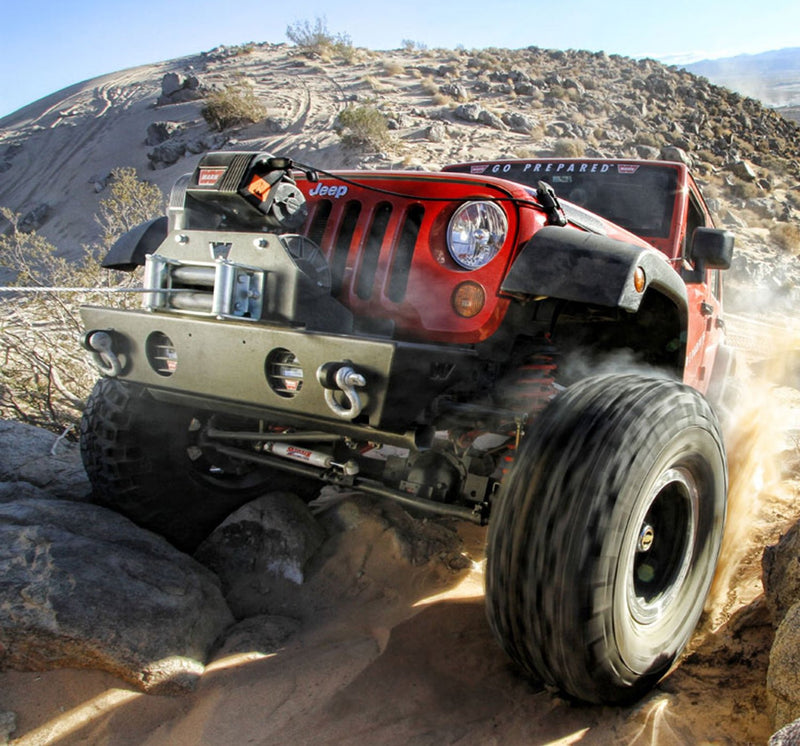

Jeep, Truck & SUV Winches: M8274-50

WARN M8274-50
 Fastest line speed, longest wire rope, legendary performance
Loved by off-roaders who compete, it's our fastest winch. No-load retrieval speed for the M8274-50 is 79.3 feet per minute, and that's not all. At 150 ft. of 5/16" cable, it also has a very long line capacity. Its unique spur gear drivetrain and upright design are totally rugged. Its braking system delivers smooth operation with superior heat dissipation. Roller fairlead, remote control on 12-ft. lead, free spool clutch and battery cables are included.
  • Rugged spur-gear drive train and unique upright design
  • Automatic disc braking system delivers smooth operation with superior heat dissipation
  • Roller fairlead, remote control, free spool clutch, and battery cables are included.
M8274-50 SPECS/PART NUMBERS
Part number: 38631 (12V)
Part Number: 88631 (12V, CE, International sales only)
Part number: 375832 (24V) Contact WARN Customer Service for Availability
Winch model: M8274-50
Rated line pull:  8,000 lbs., (3628 kgs.) single-line
Motor: Series Wound, 12V 4.6 hp/3.43kw, 24V 2.5 hp/3.43kw
Electrical controls: Solenoid
Remote Control: Remote switch, 12' (3.7m) lead
Gear train: Spur Gear
Gear ratio: 134:1
Clutch (freespooling): Sliding Motor Pinion Gear
Brake: Automatic disc type
Drum diameter/Length: 3.5"/8.5" (9cm/22cm)
Weight: 110 lbs. (50kgs.)
Wire rope: 150' ft, 5/16" diameter (46m, 8mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Powder coat with clear coat
12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)		 Line Speed
FT./min(M/min.)		 Motor
Current		 Pull by layer
layer/Lbs(Kgs.)
0 79.3 (22.17) 49 amps 1/8000 (3629)
2000 (910) 23.7 (7.22) 182 amps 2/7460 (3384)
4000 (1810) 16.4 (5.0) 286 amps 3/6980 (3166)
6000 (2720) 12.0 (3.66) 385 amps 4/6620 (3003)
8000 (3630) 8.7 (2.65) 480 amps 5/6290 (2853)
24V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)		 Line Speed
FT./min(M/min.)		 Motor
Current		 Pull by layer
layer/Lbs(Kgs.)
0 65 (19.8) 24 amps 1/8000 (3629)
2000 (910) 23 (7.01) 96 amps 2/7460 (3384)
4000 (1810) 17 (5.18) 149 amps 3/6980 (3168)
6000 (2720) 13 (3.96) 203 amps 4/6620 (3005)
8000 (3630) 7.9 (2.41) 273 amps 5/6290 (2855)
Above performance specs are based on first layer of drum
Winch Dimensions: 16.5" L. x 8.5" D. x 15" H.
(420mm L. x 220mm D. x 381 mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
