WARN 17801 M12 Winch

WARN 17801 M12 Winch

by Warn
$ 0.00 - $ 0.00
$ 0.00
$ 2,642.10
$ 2,642.10 - $ 2,642.10
$ 2,642.10
SKU WRN-17801
Availability:
Only 1 left!

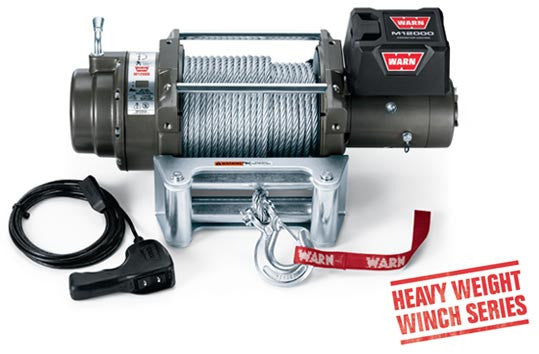

WARN M12 Winch



Jeep, Truck & SUV Winches: M12

WARN M12
A reliable workhorse to meet heavy winching needs
Champion workhorse for heavy-duty winching. 3-stage planetary gear train combined with a 4.6hp series wound motor produce 12,000 lbs. of pulling power. Design is low profile so it fits where you want it.
  • 12,000 lb. (5,440 kg) pulling capacity (single line)
  • Large frame winch design is designed to handle heavier winch loads
  • Series-wound, high-speed motor provides fast line speed and strong pulls
  • Brake provides superior control while winching
  • Remote-mount control box allows for various mounting options
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Remote control with 12' (3.7m) lead
  • Chip-resistant powder-coated finish
  • 125' of 3/8" (38m of 9.5mm) diameter wire rope
M12000 SPECS/PART NUMBERS
Part Number: 17801 (12V)
Part Number: 87801 (12V, CE, International sales only)
Part number: 265072 (24V) Contact WARN Customer Service for Availability
Rated line pull: 12000 lbs., (5440 kgs.) single-line
Motor: Series Wound, 12V 4.6 hp, 24V 2.5 hp
Electrical controls: Contactor
Remote Control: Remote switch, 12 in (3.7m) lead
Geartrain: 3-Stage Planetary
Gear ratio: 261:1
Clutch (freespooling): Rotating Ring Gear
Brake: Automatic mechanical cone
Drum diameter/Length: 3.5 in /8.2 in (9cm/21cm)
Weight: 136 lbs. (62kgs.)
Wire rope: 125 ft , 3/8 in diameter (38m, 9.5mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 in (1.83m)
Finish: Argent Gray Powder Coat
Winch Dimensions: 24.37 in L. x 8.45 in D. x 11 in H. (619mm L. x 214.63mm D. x 279mm H.)
Mounting Bolt Pattern: 10.0 in x 4.5 in (254mm x 114.3mm)
12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)		 Line Speed
FT./min(M/min.)		 Motor
Current		 Pull by layer
layer/Lbs(Kgs.)
0 30(9.14) 67 amps 1/12000(5443)
2000(910) 14(4.27) 140 amps 2/11120(5044)
4000(1810) 8.62(2.63) 210 amps 3/10340(4690)
6000(2720) 6.92(2.11) 250 amps 4/9770(4432)
8000(3630) 5.80(1.77) 320 amps 5/9250(4196)
10000(4540) 4.39(1.34) 370 amps
12000(5440) 3.86(1.18) 440 amps
24V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)		 Line Speed
FT./min(M/min.)		 Motor
Current		 Pull by layer
layer/Lbs(Kgs.)
0 31.94(9.57) 24 amps 1/12000(5443)
2000(910) 11.7(3.57) 105 amps 2/11120(5044)
4000(1810) 9.5(2.90) 129 amps 3/10340(4690)
6000(2720) 8.5(2.59) 152 amps 4/9770(4432)
8000(3630) 7.5(2.29) 175 amps 5/9250(4196)
10000(4540) 6.5(1.98) 198 amps
12000(5440) 6.0(1.83) 221 amps
Above performance specs are based on first layer of drum
Winch Dimensions: 24.37" L. x 8.45" D. x 11" H.
(6.19mm L. x 214.63mm D. x 279mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)



Buy with confidence from Montana Jack's, we are your WARN Authorized Warranty and Service Center.
We are a Factory Direct WARN Distributor and we stand behind our WARN products for the full manufacturer's warranty period.
