WARN Universal Foot Down Winch Mount

Mount your WARN winch to any appropriate flat surface. Black powder coated steel construction.

Predrilled to mount the PowerPlant HP/HD, Endurance 12.0, ZEON 8, 10 & 12, 9.5cti, 9.5xp, XD9i, XD9, VR8, 10 & 12, M8 and M6 winches.

Will accept the new WARN EVO Series winches, but clearance is very tight.  The fairlead bolts must be installed before the winch, with the bolt installed from the rear of the bracket and nut to the front.  There is no room between the bracket and winch for the bolt to come in from the front.  This would make it difficult to use a hawse fairlead with a socket head bolt, the portion of the bolt extending through the nut on the backside would have to be ground off to allow clearance for the winch.

FAIRLEAD NOTES:  Roller fairleads need to be installed with the center mounting hole to line up with the opening in the mount, but this would require the mount to be lifted off the deck about an inch.  If the offset hole is used, the opening in the slot does not line up with the opening in the fairlead.
THE BEST SOLUTION FOR THIS ISSUE IS TO USE A HAWSE FAIRLEAD:
SYNTHETIC ROPE:  multiple designs are available here: WARN Truck Fairleads
WITH STEEL CABLE, must use cast iron hawse fairlead here:  WARN 73850

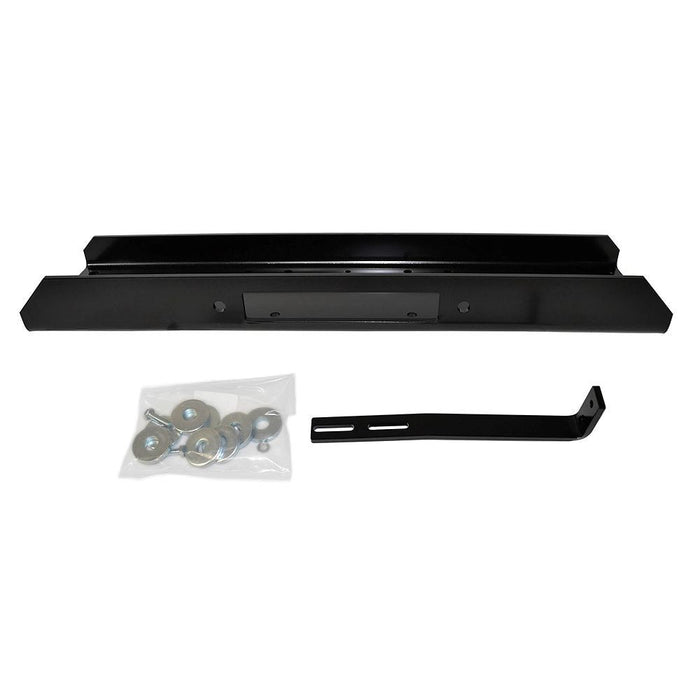

Kit includes:

  • Winch mounting plate
  • Solenoid mounting bracket
  • Hardware kit

Overall dimensions:  27.5" x 7 1/4"

Buy with confidence from Montana Jack's, we are your WARN Authorized Warranty and Service Center.
We are a Factory Direct WARN Distributor and we stand behind our WARN products for the full manufacturer's warranty period.
