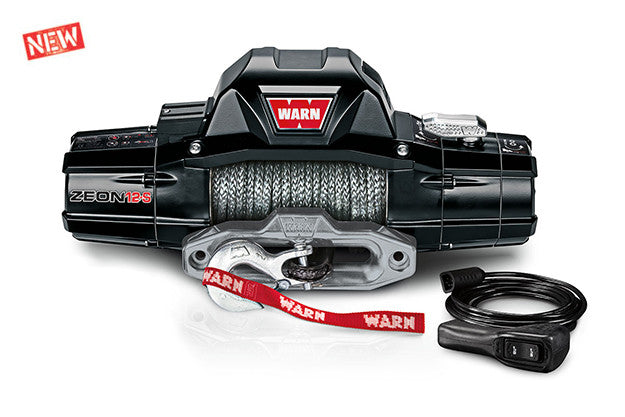

WARN® ZEON® 12-S
The toughest, most technologically-advanced winch on the trail today.
|
The WARN ZEON® has proven itself in the field, and among off roaders. Now you can get the 12,000 pound capacity ZEON winch with Spydura® Pro synthetic rope. The new ZEON 12-S winch trims weight but keeps plenty of muscle for the big jobs, and the toughest rescues. And the light, easy-to-handle synthetic rope makes any winching situation a bit easier. It's the perfect choice for heavily loaded off road vehicles.
- Legendary WARN reliability and performance; 12,000 lb. (5443 kg) capacity - perfect for the bigger vehicles.
- Unique exterior styling and symmetrical design give this winch a look that is advanced, capable, and strong.
- New-design planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power.
- Flat black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion.
- Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks.
- Aluminum winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
- Robust aluminum structure is durable and helps dissipate heat.
- Extreme waterproofing meets rigorous IP68 standards - the highest rating in the WARN Truck/SUV winch lineup.
- Contactor control for extreme reliability and weather resistance.
- Automatic mechanical cone brake holds the full rated load and offers excellent control while winching.
- Ultra-durable metal-reinforced rubberized corded remote with 12' lead.
- Includes 80' of 3/8" Spydura Pro synthetic rope and aluminum hawse failead with powder-coat finish.
- Proprietary and strongest-in-class Spydura Pro synthetic rope is found on many military vehicles. This rope features a urathane-coated 12-strand braid, heat treated under tension. A 20 ft. Nomex™ heat sleeve protects the rope on the layer nearest the drum.
|
| ZEON 12-S SPECS/PART NUMBER |
|
Part number: 95950 |
|
Rated line pull: 12,000 lbs. (5443 kgs) |
|
Motor: 12V DC, Series Wound |
|
Electrical controls: Solenoid |
|
Remote Control: Remote switch, 12' (3.7m) Lead |
|
Geartrain: 3-Stage Planetary |
|
Gear ratio: 216:1 |
|
Clutch (freespooling): Sliding Ring Gear |
|
Brake: Automatic Direct Drive Cone |
|
Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm) |
|
Weight (kit shipping): 80 lbs. (36.3 kgs) |
|
Rope: 3/8" x 80' (9.52mm x 24.38m) Spydura Pro™ synthetic |
|
Fairlead: Aluminum hawse with powder-coat finish |
|
Recommended Battery: 650 CCA minimum for winching |
|
Battery leads: 2 gauge, 72" (1.83m) |
|
Finish: Powder coat over primer undercoating |
|
Warranty: Limited Lifetime |
|
| 12V DC PERFORMANCE SPECS |
Line Pull
Lbs.(Kgs.) |
Line Speed
FT./min(M/min.) |
Motor
Current |
Pull by layer
layer/Lbs(Kgs.) |
| 0 |
30.0 (9.1) |
50 amps |
1/8000 (3629) |
| 2000 (910) |
13.4 (4.1) |
128 amps |
2/7280 (3302) |
| 4000 (1810) |
10.1 (3.1) |
196 amps |
3/6670 (3026) |
| 6000 (2720) |
7.9 (2.4) |
257 amps |
4/6230 (2826) |
| 8000 (3630) |
6.1 (1.8) |
316 amps |
|
| 10000 (4536) |
4.5 (1.4) |
375 amps |
|
| 12000 (5443) |
3.1 (0.9) |
438 amps |
|
|
| |
| Above performance specs are based on first layer of drum |
|

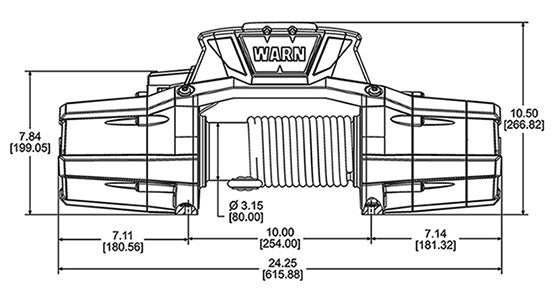

Winch Dimensions:
Integrated configuration: 24.25" L x 6.09" D x 7.15" H
(615.9mm L x 165.6mm D x 181.6mm H)
Low-profile configuration: 24.25" L x 7.15" D x 7.84" H
(615.9mm L x 181.6mm D x 199.02mm H)
|
|
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm) |
|
Buy with confidence from Montana Jack's, we are your WARN Authorized Warranty and Service Center.
We are a Factory Direct WARN Distributor and we stand behind our WARN products for the full manufacturer's warranty period.
WRN-95950
|
