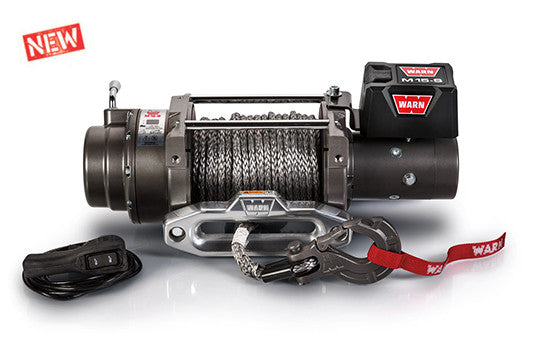

WARN 97730 M15-S GEN II 15,000 lb. Winch, Spydura Synthetic, Lifetime Warranty!

$ 2,013.99

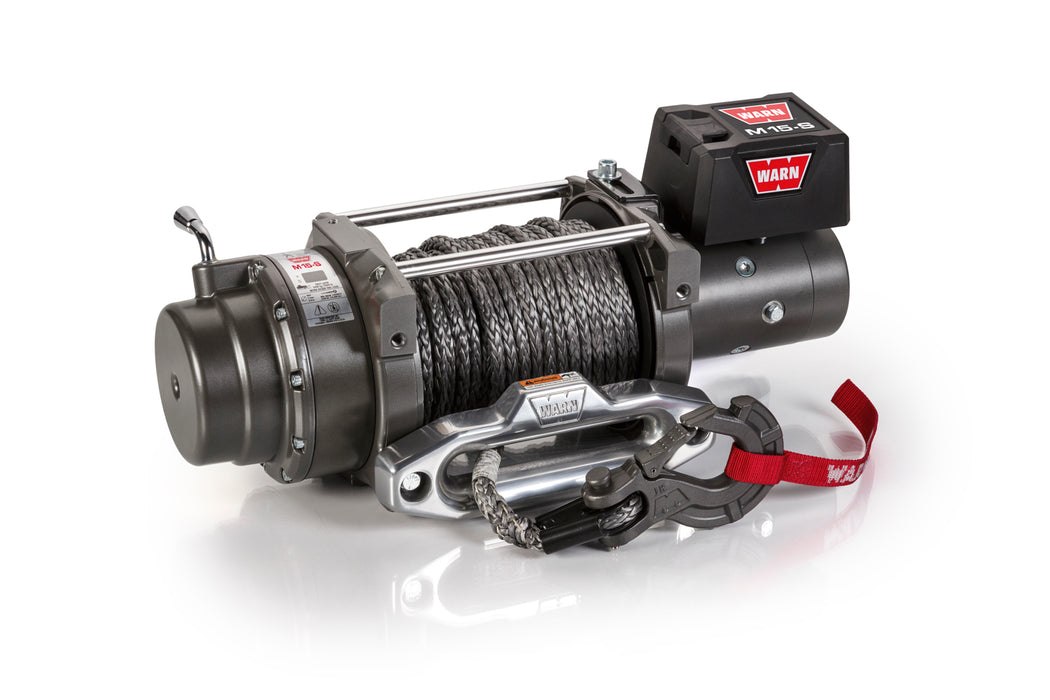

WARN M15-S - 12V - Heavy-Duty Power, Synthetic Rope

The WARN M15-S is a heavy-duty winch with 80' of 3/8" lightweight, easy-to-handle Spydura® Pro synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. And with a hefty 15,000 lb. pulling capacity, this winch is built for performing the long, heavy pulls.

  • 15,000 lb. capacity
  • Includes 80' of 3/8" Spydura Pro synthetic rope
  • Includes 18,000 lb capacity EPIC hook
  • Large-frame winch architecture mounts feet forward
  • Contactor control for the ultimate in reliable electronics
  • Powerful, efficient series-wound motor
  • Durable, smooth three-stage planetary gear train
  • Best-in-class cone brake
  • Limited Lifetime Mechanical Warranty, 7 Year Electrical Warranty

M15-S SPECS/PART NUMBERS

Part number: 97730 (12V)

Rated Line Pull: 15,000 lbs. (6804 kgs) single-line

Motor: Series Wound, 12V 4.6 hp

Electrical controls: Contactor

Remote Control: Remote switch, 12" (3.7m) lead

Geartrain: 3-Stage Planetary

Gear ratio: 315:1

Clutch (freespooling): Rotating Ring Gear

Brake: Automatic mechanical cone

Drum diameter/Length: 3.5 in /8.2 in (9cm/21cm)

Weight: Shipping: 100 lbs. (45 kgs); Net product: 89 lbs. (40kgs)

Rope: Spydura® Pro Synthetic: 80' x 3/8" (9.5mm x 24.3m)

Fairlead: Hawse, polished aluminum

Recommended Battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72 in (1.83m)

Finish: Argent Gray Powder Coat



12V DC PERFORMANCE SPECS

Line Pull
Lbs.(Kgs.)

Line Speed
FT./min(M/min.)

Motor
Current

Pull by layer
layer/Lbs(Kgs.)

0

22.2 (6.77)

67 amps

1/15000 (6804)

2000 (910)

7.27 (2.22)

135 amps

2/13890 (6300)

4000 (1810)

5.41 (1.65)

185 amps

3/11520 (5225)

6000 (2720)

4.43 (1.35)

235 amps

4/9840 (4463)

8000 (3630)

3.79 (1.16)

285 amps

10000 (4540)

3.31 (1.01)

335 amps

12000 (5440)

2.93 (.893)

385 amps

14000 (6350)

2.61 (.796)

435 amps

15000 (6800)

2.48 (.756)

460 amps

 Above performance specs are based on first layer of drum

Buy with confidence from Montana Jack's, we are your WARN Authorized Warranty and Service Center.
We are a Factory Direct WARN Distributor and we stand behind our WARN products for the full manufacturer's warranty period.
