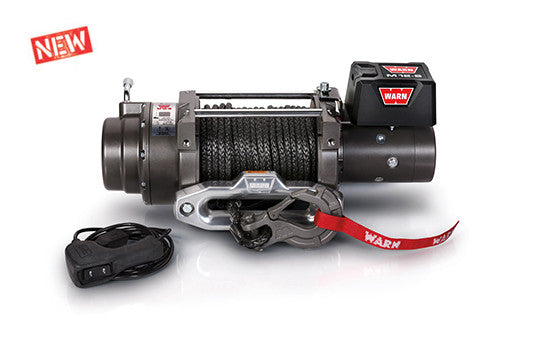

WARN 97720 M12-S GEN II 12,000 lb. Winch w/Spydura Synthetic Rope
WARN M12-S 12,000 lb. Winch - 12V
A Classic Workhorse with Modern Technology
The WARN M12-S combines a proven WARN large-frame winch with 100' of 3/8" state-of-the-art Spydura® synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. The winch's 12,000 lb. pulling capacity makes it great for large pickups and heavier SUVs.
- 12,000 lb. capacity
- Includes 100' of 3/8" Spydura synthetic rope
- Includes 18,000 lb capacity EPIC hook
- Large-frame winch architecture mounts feet forward
- Contactor control for the ultimate in reliable electronics
- Powerful, efficient series-wound motor
- Durable, smooth three-stage planetary gear train
- Best-in-class cone brake
- Limited lifetime warranty
| M12-S SPECS/PART NUMBERS |
| Part Number: 97720 (12V) |
| Rated line pull: 12000 lbs., (5440 kgs.) single-line pull |
| Motor: Series Wound, 12V 4.6 hp |
| Electrical controls: Contactor |
| Remote Control: Remote switch, 12 ft. (3.7m) lead |
| Geartrain: 3-Stage Planetary |
| Gear ratio: 261:1 |
| Clutch (freespooling): Rotating Ring Gear |
| Brake: Automatic mechanical cone |
| Drum diameter/Length: 3.5"/8.2" (9cm/21cm) |
| Weight: Shipping: 100 lbs. (45 kgs); Net product: 89 lbs. (40kgs) |
| Rope: Spydura® Synthetic: 100' x 3/8" (9.5mm x 30m) |
| Fairlead: Hawse |
| Recommended Battery: 650 CCA minimum for winching |
| Battery leads: 2 gauge, 72 in (1.83m) |
| Finish: Argent Gray Powder Coat |
| Winch Dimensions: 24.3 in L. x 8.4 in D. x 11 in H. (619mm L. x 214.6mm D. x 279mm H.) |
| Mounting Bolt Pattern: 10.0 in x 4.5 in (254mm x 114.3mm) |
| 12V DC PERFORMANCE SPECS | |||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 30(9.14) | 67 amps | 1/12000(5443) |
| 2000(910) | 14(4.27) | 140 amps | 2/11120(5044) |
| 4000(1810) | 8.62(2.63) | 210 amps | 3/10340(4690) |
| 6000(2720) | 6.92(2.11) | 250 amps | 4/9770(4432) |
| 8000(3630) | 5.80(1.77) | 320 amps | 5/9250(4196) |
| 10000(4540) | 4.39(1.34) | 370 amps | |
| 12000(5440) | 3.86(1.18) | 440 amps | |
Above performance specs are based on first layer of drum
