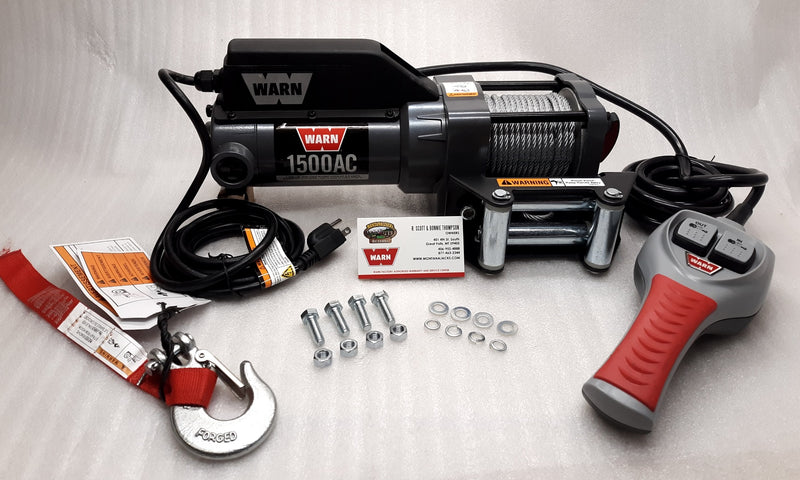

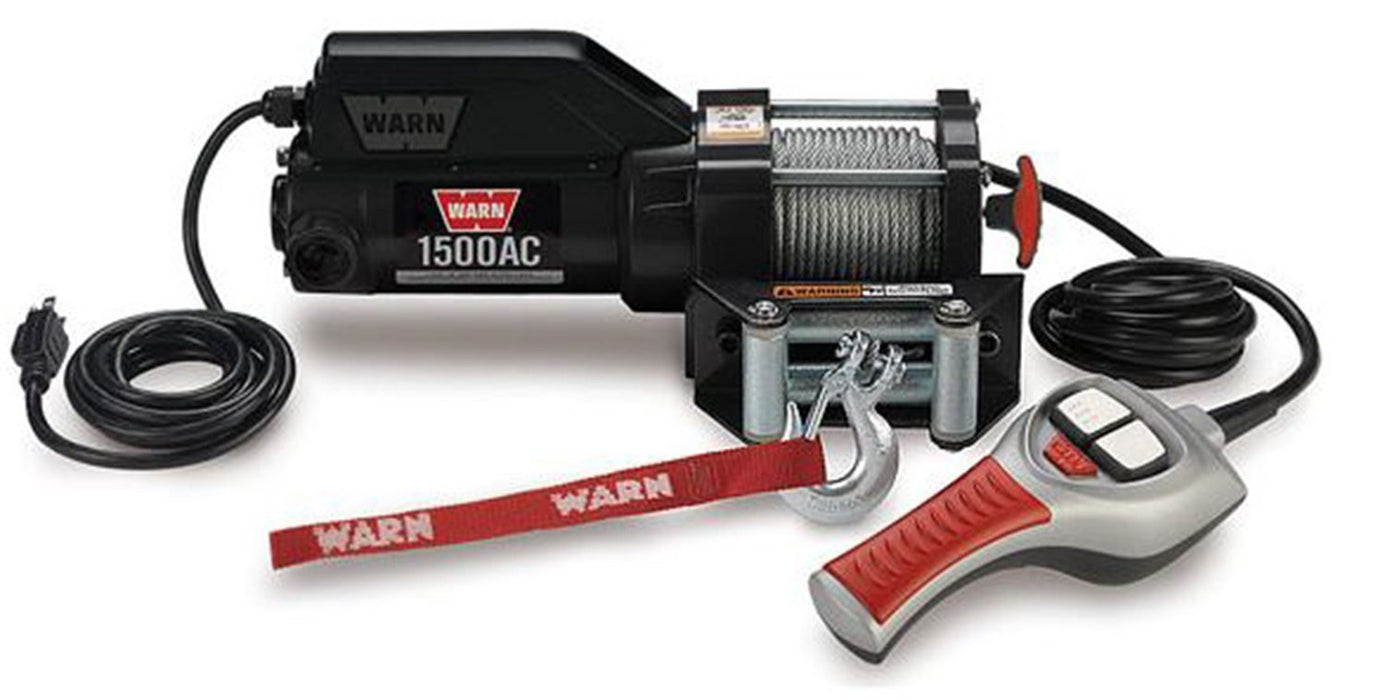

WARN 85330 1500AC Utility Winch with Remote Control

$ 498.52

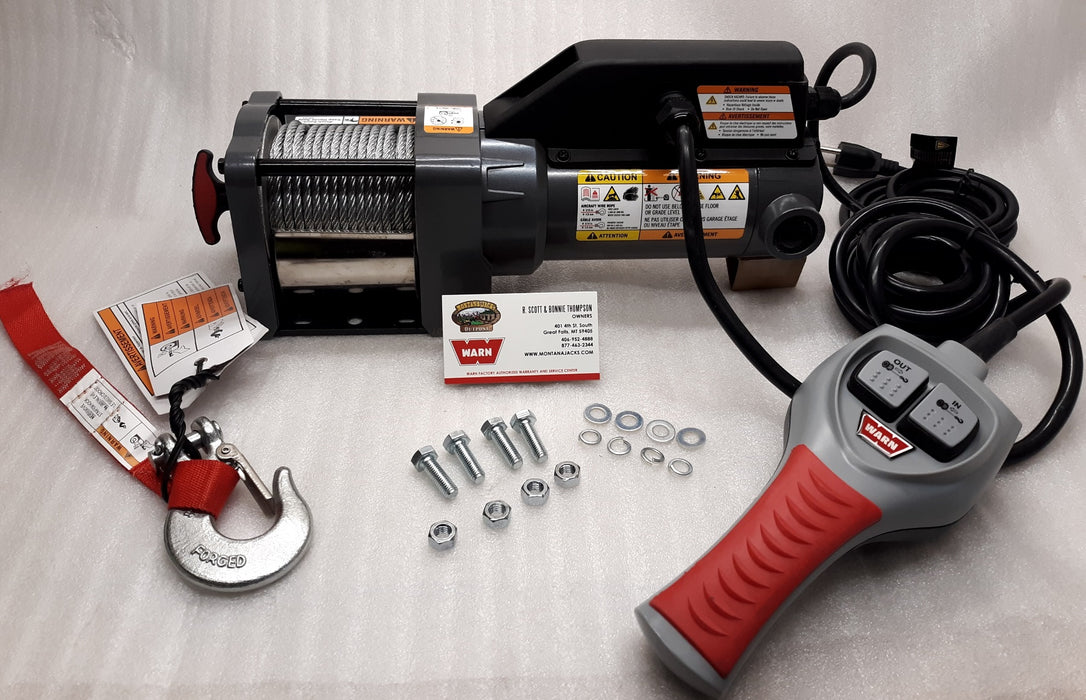

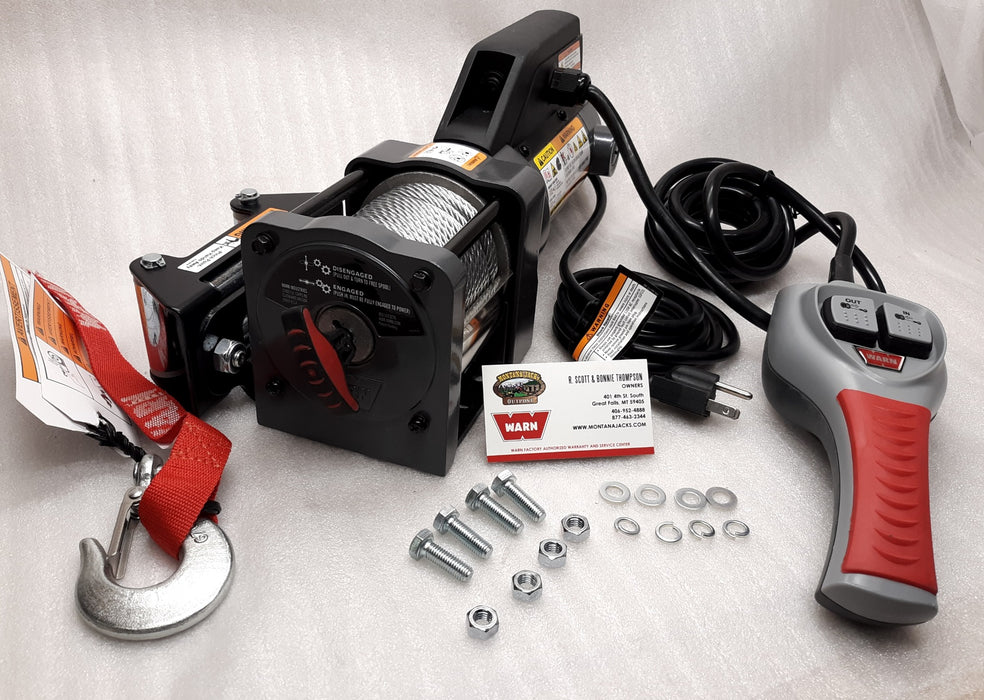

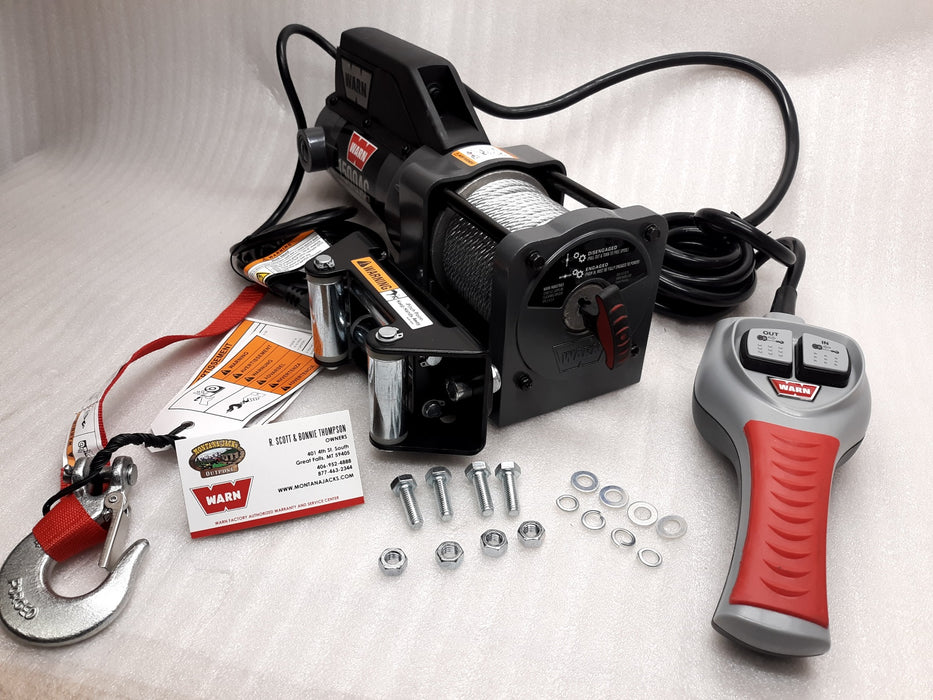

WARN 1500AC WINCH ASSEMBLY

  • 120v AC powered, use wherever you have a standard AC outlet.
  • Corded remote control with 10 foot cord.
  • 43 feet of 3/16 steel rope

An industrial planetary gearing and all-metal housing provides for smooth, reliable operation. With a powerful 0.8-horsepower permanent magnet motor, the winch delivers 1,500 lbs. (680kgs) of pulling capacity. You can now pull or drag just about anything anywhere. A vented motor end cap and externally serviceable brushes provide improved motor cooling, extended run time, and extended motor life.

The WARN 1500AC Utility Winch comes equipped with a 10-foot (3m) power cord which allows the 1500AC to be used wherever a standard 120V AC outlet can be found. The winch is equipped with 43-feet of 3/16' diameter steel rope. And an advanced, sealed pendant remote with 10-foot (3m) lead allows for a great deal of flexibility in use.

1500AC SPECS
Part Number: 85330 * Product not sold in Canada
Rated Line Pull: 1500 lbs. (680kgs)
Motor: 120V AC, 0.8 hp (600W) Permanent Magnet
Controls: Pendant Remote
Gear train: Planetary, Differential Planetary
Gear Ratio: 261:1
Clutch (Freespool): Pull and Turn
Brake: Self Braking Transmission
Drum diameter/length: 2.0"/3.3" (52mm/84mm)
Kit Shipping Weight: 29.1 lbs. (13.2 kgs)
Rope: Galvanized Steel Wire, Ø 3/16" x 43' (Ø 4.8mm x 13.1 m)
Fairlead: Roller
Power: 120V AC, GFCI
Duty Cycle: Intermittent
Finish: Steel Grey Powder Coat
Warranty: One Year
Mounting Bolt Pattern: 3.1" x 2.5" (78.8mm x 63.5mm)
Mounting Bolt: 4 x 8mm
Winch Dimensions: 15.42" L x 5.7" D x 6.73" H (39.2cm L x 14.5cm D x 17.1cm H)
Winch Weight: 28 lbs. (12.7 kgs)



PERFORMANCE SPECS (first layer of drum)
Load
Lbs. (kg)
Line Speed
Ft./min. (M/min)
Motor Current, Amps
(At 120 VAC)
0 (0) 9.7 (2.9) 0.5
250 (113) 7.7 (2.3) 1.8
500 (227) 6.9 (2.1) 3.1
750 (340) 6.1 (1.8) 4.4
1000 (454) 5.4 (1.6) 5.8
1250 (568) 4.9 (1.5) 7.3
1500 (680) 4.4 (1.3) 9.1

Above performance specs are based on first layer of drum

1500AC Dimensions

Buy with confidence from Montana Jack's, we are your WARN Authorized Warranty and Service Center.
We are a Factory Direct WARN Distributor and we stand behind our WARN products for the full manufacturer's warranty period.
