WARN 85160 DC2000 Industrial Hoist, 24v

$ 1,848.47

WARN 85160 DC2000 Industrial Hoist, 24v

The DC2000 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC2500 hoist is built on WARN's robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity.

  • Powerful Permanent Magnet DC Motor With Robust Sealing
  • Proven 3-Stage Planetary Gear Train
  • Permanent Grease Lubrication
  • Automatic Cone Brake That Holds Full Rated Load
  • Large Frame With A Cast Aluminum Drum For Plenty Of Wire Rope Capacity
  • Limited 1 Year Warranty

 TYPE      Electric
RECOMMENDED USE      Industrial
VOLTAGE             24 Volt
MOTOR TYPE      Permanent Magnet
THERMAL SHUTOFF         No
DRIVE GEAR TYPE             Planetary
GEAR REDUCTION RATIO              261:1
FREE SPOOLING No
BRAKE TYPE        Automatic Cone Brake
LINE DIAMETER (IN)        No Rope
LINE LENGTH (FT)             No Rope
LINE MATERIAL  No Rope
FAIRLEAD TYPE  No Fairlead
CONFORMS TO J706 STANDARDS               No
REMOTE TYPE    No Remote
MOUNTING HOLE QUANTITY       8
OPERATION TYPE             Automatic
MOUNTING PATTERN LENGTH (IN)           6 Inch
MOUNTING PATTERN WIDTH (IN)             4-1/2 Inch
INCLUDES MOUNTING HARDWARE           No
COLOR  Black

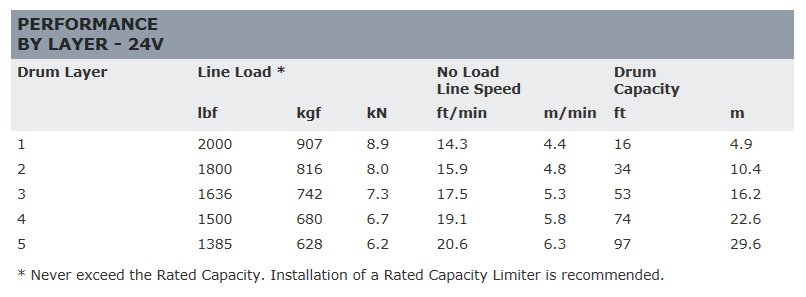

MAX LINE PULL/ LINE SPEED        2000 Pound/ 12.5 Feet Per Minute
MAX AMP DRAW/ LINE PULL        54 Amp Draw/ 2000 Pound

Buy with confidence from Montana Jack's, we are your WARN Authorized Warranty and Service Center.
We are a Factory Direct WARN Distributor and we stand behind our WARN products for the full manufacturer's warranty period.

WRN-85160
