WARN 82467 DC800 Hoist 12v

$ 498.87

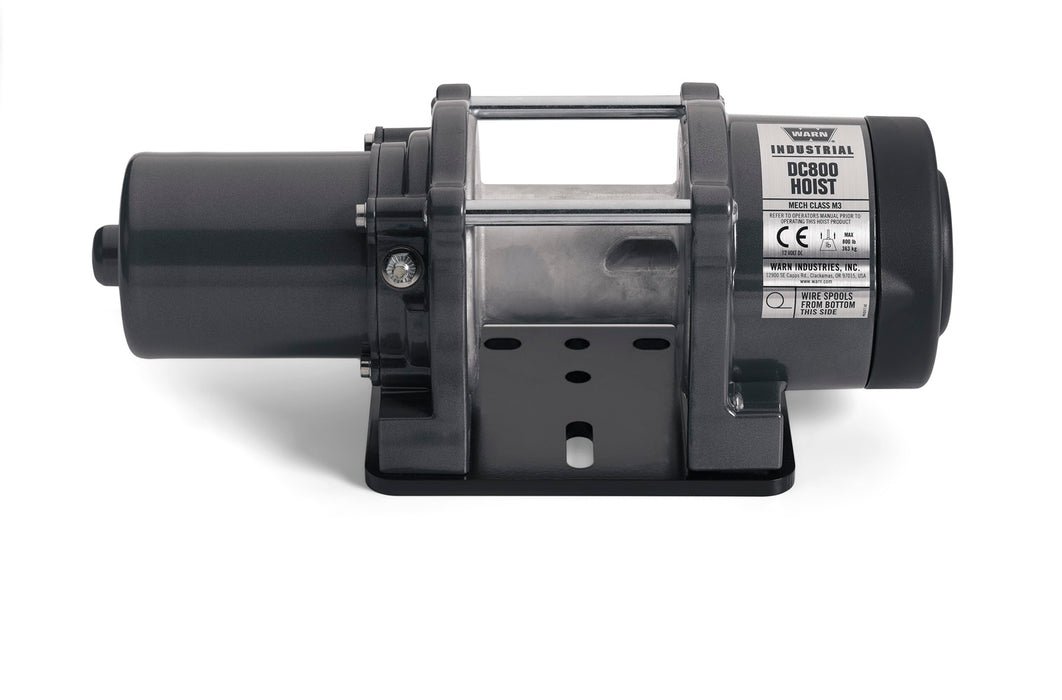

WARN DC800 Hoist 12v

The DC800 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC800 hoist is compact and comes standard with a steel mounting plate and hardware to make installation quick and easy. Controls and accessories available separately.

DC800 SPECS/PART NUMBERS
Part Number: 82467 12V
Part Number: 82468 24V
Rated Capacity: 800 lbf (363 kgf)
Drum Barrel Diameter: 2.0 in (51 mm)
Drum Flange Diameter: 4.1 in (104 mm)
Distance Between Flanges: 3.0 in (75 mm)
Recommended Maximum Wire Rope Diameter: 3/16 in (4.8 mm)
Recommended Wire Rope Breaking Strength: 4200 lbf (1905 kgf)
Approximate Shipping Weight: 16.0 lb (7.3 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)
Mounting Bolt Torque: 11-13 ft*lbf (15 - 18 N*m)
Maximum Layers of Wire Rope: 4
Gear Reduction: 154:1
Brake Type: Disc
Contactor/Remote Type: Not Included
Standards Compliance: CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC



ACCESSORIES
Roller Fairlead: 28929
Wire Rope (3/16" x 50 ft): 60076
Synthetic Rope (3/16" x 50 ft): 73599
Control Pack-12V: 63926
Control Pack-24V: 93926
Contactor Only-12V: 83321
Contactor Only-24V: 83322
Remote Control Only: 88528



PERFORMANCE BY LAYER - PN 82467 (12V)
Drum Layer Line Load * No Load Line Speed Drum Capacity
lbf kgf kN ft/min m/min ft m
1 800 363 3.6 18.0 5.5 10 3.0
2 683 310 3.0 21.0 6.4 21 6.4
3 596 270 2.7 24.0 7.3 33 10.1
4 528 239 2.3 27.0 8.2 50 15.2
* Never exceed the Rated Capacity. Installation of a Rated Capacity Limiter is recommended.



FIRST LAYER PERFORMANCE - PN 82467 (12V)
Line Load Current Draw Load Speed Duty Cycle
lbf kgf Amps ft/min m/min min/10min
0 0 14 18.0 5.5 2.5
500 227 38 16.2 4.9 1.5
800 363 53 13.0 4.0 1.0



PERFORMANCE BY LAYER - PN 82468 (24V)
Drum Layer Line Load * No Load Line Speed Drum Capacity
lbf kgf kN ft/min m/min ft m
1 800 363 3.6 21.0 6.4 10 3.0
2 683 310 3.0 24.5 7.5 21 6.4
3 596 270 2.7 28.0 8.5 33 10.1
4 528 239 2.3 31.6 9.6 50 15.2
* Never exceed the Rated Capacity. Installation of a Rated Capacity Limiter is recommended.



FIRST LAYER PERFORMANCE - PN 82468 (24V)
Line Load Current Draw Load Speed Duty Cycle
lbf kgf Amps ft/min m/min min/10min
0 0 6 21.0 6.4 2.5
500 227 21 18.0 5.5 1.5
800 363 30 14.0 4.3 1.0
