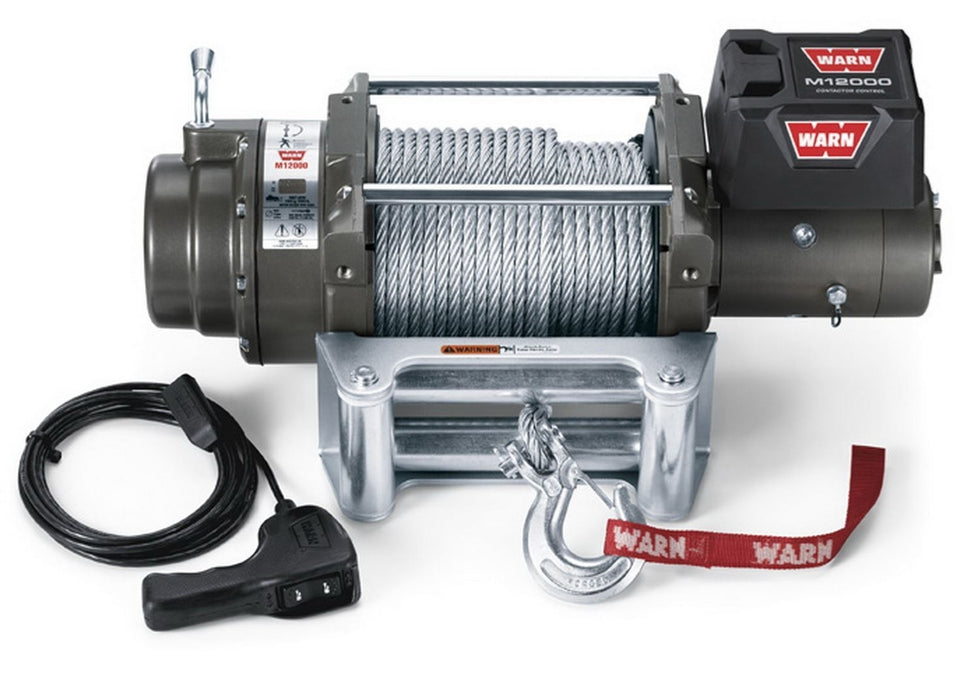

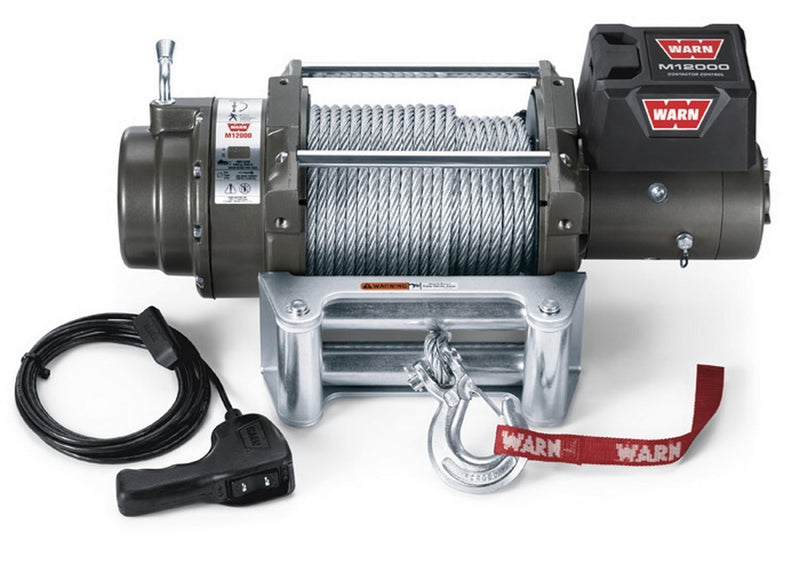

WARN 265072 M12 Winch, 24 volt

$ 2,863.34

WARN 265072 M12 Winch, 24 volt

For heavy duty Winching needs, this Winch is a champion workhorse. Big torque, power and quick no load retrieval speed is 30 Foot per Minute. Its design is low profile, so it'll fit where you want. And it's powered by the 4.6 Horsepower series wound motor and our proven three stage planetary gear train. With 125 Foot of 3/8 Inch wire rope.

  • Most Powerful Winches On The Market
  • Pulling Capacity Up To 16,500 Pounds
  • High Strength Carrier Plates To Handle The Heavy Gear Train Stresses
  • Big Torque Power
  • Quick No Load Retrieval Speed 30 Foot Per Minute
  • Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
MAX AMP DRAW/ LINE PULL 221 Amp Draw / 12000 Pound
TYPE Electric
MOUNT TYPE Vehicle Mounted
RECOMMENDED USE Vehicle Recovery
VOLTAGE 24 Volt
MOTOR HORSEPOWER 2.5 Horsepower
ELECTRICAL CONTROL TYPE Contactors
MOTOR TYPE Series Wound
THERMAL SHUTOFF No
DRIVE GEAR TYPE Planetary
GEAR REDUCTION RATIO 261:1
FREE SPOOLING Yes
BRAKE TYPE Mechanical Cone
LINE DIAMETER (IN) 3/8 Inch
LINE LENGTH (FT) 125 Feet
LINE MATERIAL Steel
FAIRLEAD TYPE Roller
CONFORMS TO J706 STANDARDS No
REMOTE TYPE Handheld Remote Switch
MOUNTING HOLE QUANTITY 4
OPERATION TYPE Automatic
MOUNTING PATTERN LENGTH (IN) 10 Inch
MOUNTING PATTERN WIDTH (IN) 4-1/2 Inch
INCLUDES MOUNTING HARDWARE No
COLOR Gray



Buy with confidence from Montana Jack's, we are your WARN Authorized Warranty and Service Center.
We are a Factory Direct WARN Distributor and we stand behind our WARN products for the full manufacturer's warranty period.
