WARN ZEON 10-S Platinum Synthetic Truck Winch Parts

WARN Zeon 10-S Platinum Synthetic Winch Parts

WARN 10-S Platinum Synthetic Winch Parts

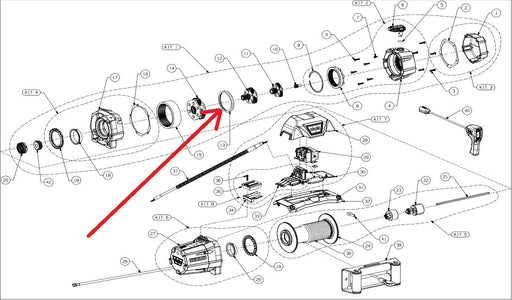

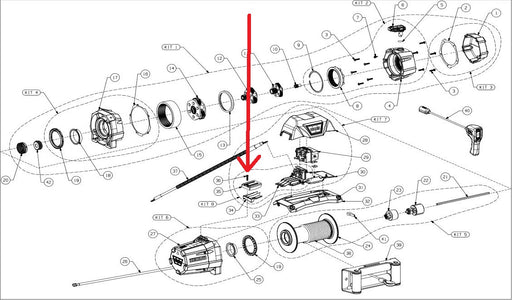

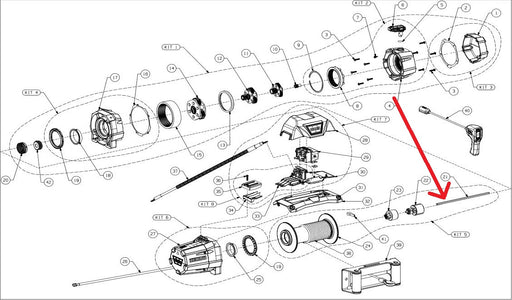

This is a parts list for WARN Zeon 10-S Platinum Synthetic Winch Parts. The numbers in the circles correspond with the parts below. Choose the parts you need from above and order the kit associated with them below. If you don't see the part you need, please call and ask for tech support at 1-877-463-2344 or e-mail us at sales@montanajacks.com.

WARN 10-S Platinum Synthetic Winch Parts

Kit #1 (Part Number 92982) S/P ASSY_ULT PERF_TRANS_216

ITEM #

DESCRIPTION

2

S/P ASSY_END HOUSING_ULT PERF

3

S/P END CAP

4

S/P REMOTE CLUTCH ASSY

5

S/P, DRUM SUPPORT, GEARTRAIN

9

SUN GEAR, 12T

10

CARRIER ASSY, STAGE 1

11

CARRIER ASSY, STAGE 2

12

WASHER, THRUST

13

CARRIER ASSY, STAGE 3

14

RING GEAR, 75T

17

DRIVE SPLINE

19

DRUM DRIVER

21

DRIVE SHAFT

Kit #2 (Part Number 93036) S/P ASSY_END HOUSING_ULT PERF END

2

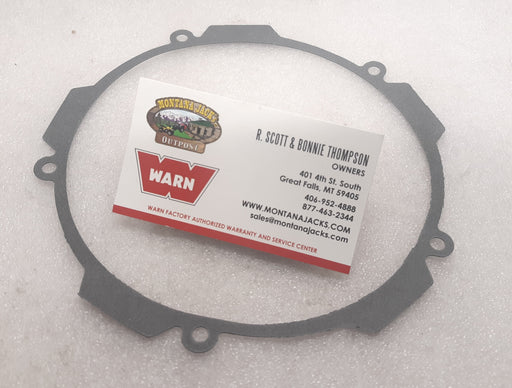

GASKET END CAP

3 (comes with ten)

TORX, PAN HEAD, M5-0.8X25

5

HOUSING_ULT PERF

6

PAWL STOP

7

ROTATING RING GEAR

8

RETAINING RING

15

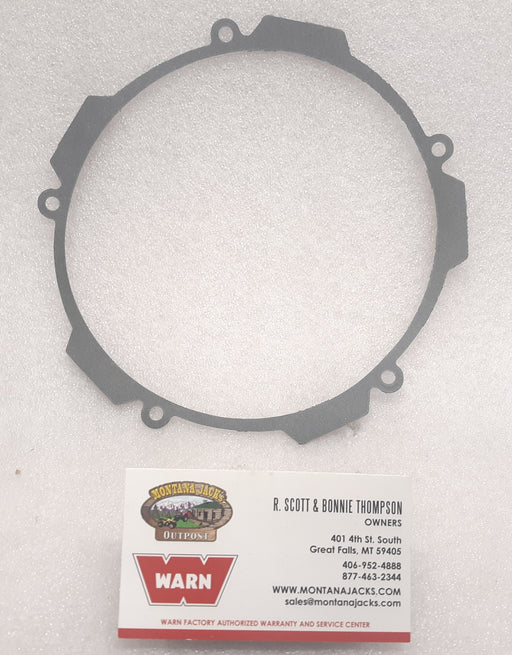

GEARTRAIN GASKET

47

TORX, PAN HEAD, M5-.08X12

Kit #3 (Part Number 93596) S/P END CAP

1

END CAP

2

GASKET, END CAP

3 (comes with five)

TORX, PAN HEAD, M5-0.8X25

Kit #4 (Part Number 93038) S/P ASSY_REMOTE CLUTCH

4

S/P ASSY_REMOTE CLUTCH

Kit #5 (Part Number 89239) S/P DRUM SUPPORT_GEARTRAIN

3 (comes with five)

TORX, PAN HEAD, M5-0.8X25

15

GEARTRAIN GASKET

16

DRUM SUPPORT, GEARTRAN PER

18

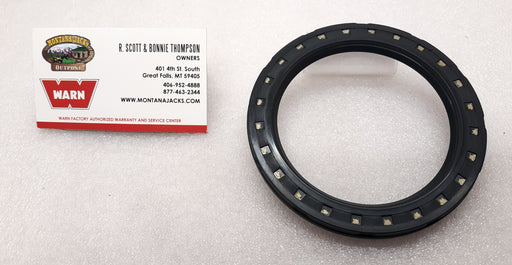

DRUM SEAL

20

DRUM BUSHING

Kit #6 (Part Number 93595) S/P ASSY_MOTOR_HIGH OUPUT

18

DRUM SEAL

25

DRUM BUSHING, MOTOR

27

ASSY_MOTOR_HIGH OUPUT

Kit #7 (Part Number 93041) S/P ASSY_CONTROL SYSTEM

(8)

S/P BUS

26

GROUND CABLE 2GA

28

S/P ASSY_CONTROL PACK COVER

30

S/P 12VDC CONTACTOR PLATE ASSEMBLY

37

POWER CABLE 2GA

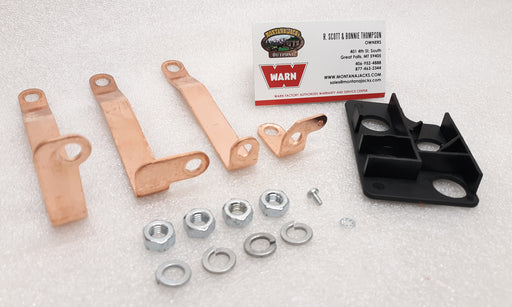

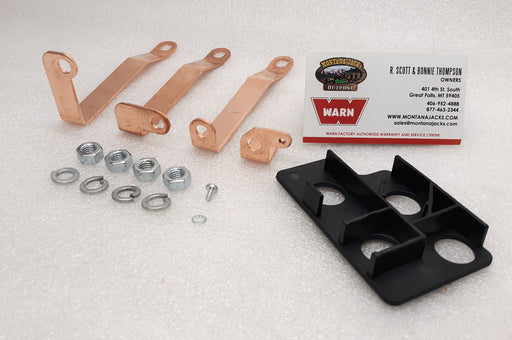

Kit #8 (Part Number 93428) S/P BUS BARS

33

BUS BARS

34

BASE, BUS BAR COVER

35

TOP, BUS BAR COVER

36

TORX, PAN HEAD, M6-1.0X25

Kit #9 (Part Number 93042) S/P BRAKE ASSY

21

DRIVE SHAFT

22

BRAKE ASSY

23

CASTING, MOTOR COUPLER

Kit #10 (Part Number 93043) S/P ASSY_REMOTE

40

REMOTE

41

USB_CHARGER

42

USB_CABLE

INDIVIDUAL ITEMS

ITEM #

PART #

Description

3 (comes with ten)

88371

TORX, PAN HEAD, M5-0.8 x 25

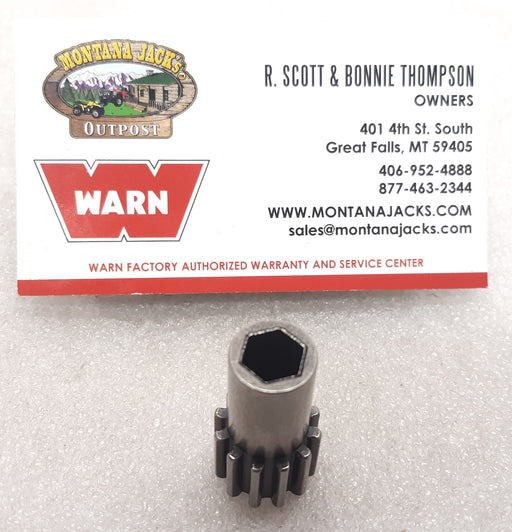

9

13874

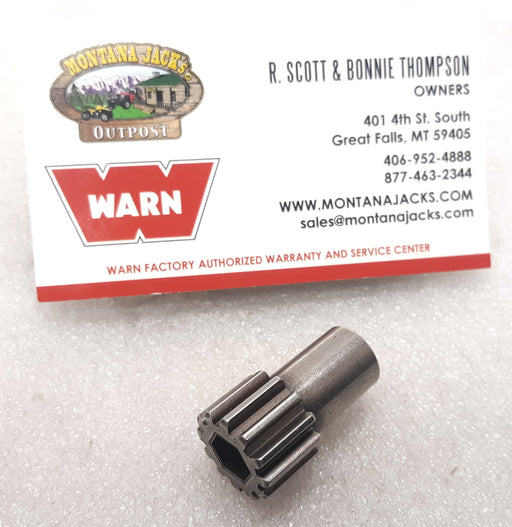

SUN GEAR, 12T

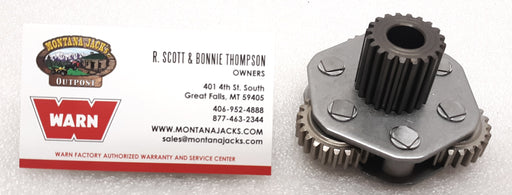

10

88690

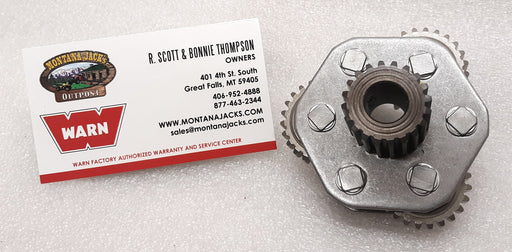

CARRIER ASSY, STAGE 1

11

91048

CARRIER ASSY, STAGE 2

12

88543

WASHER, THRUST

13

91051

CARRIER ASSY, STAGE 3

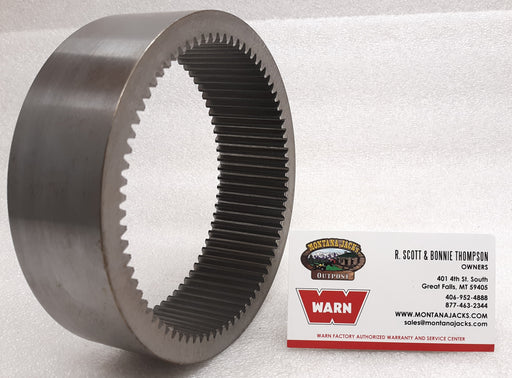

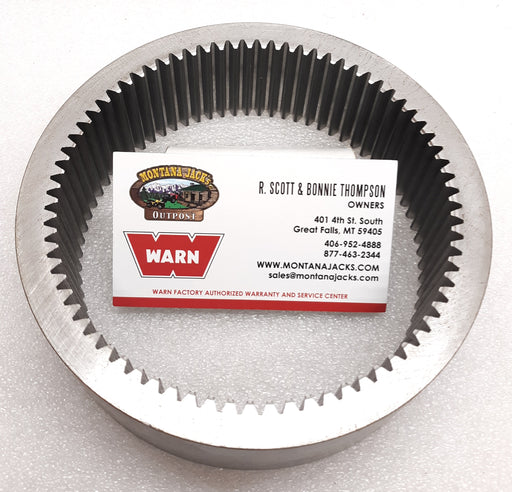

14

88252

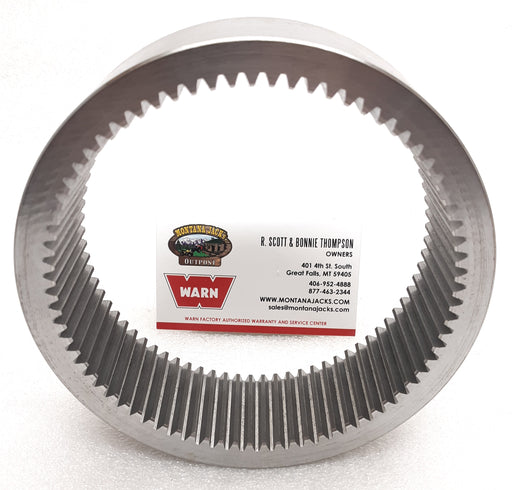

RING GEAR, 75T

17

90281

DRIVE SPLINE

19

13824

DRUM DRIVER

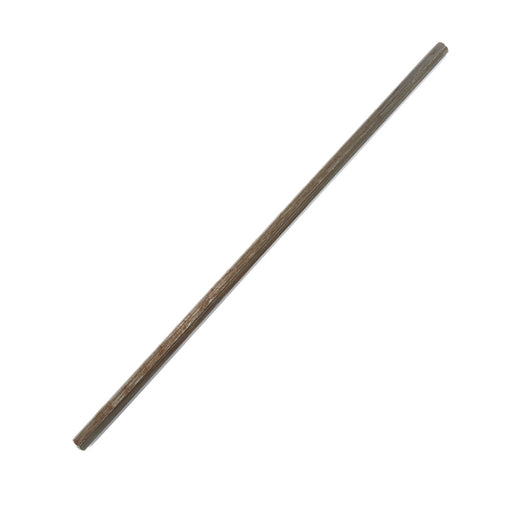

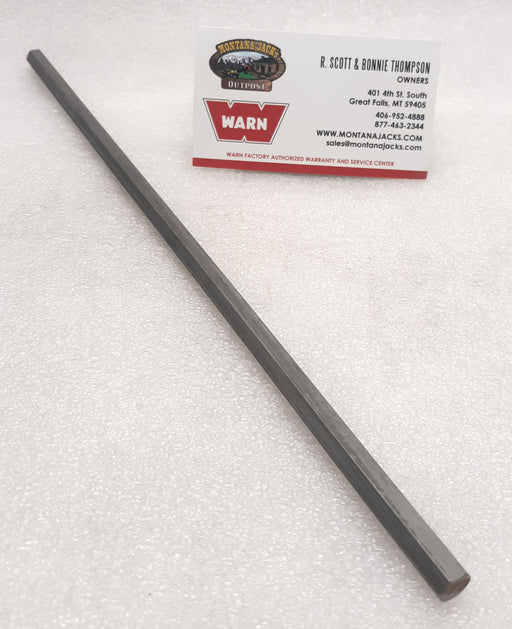

21

88251

DRIVE SHAFT

24

92823

DRUM ASSY STEEL SLEEVE

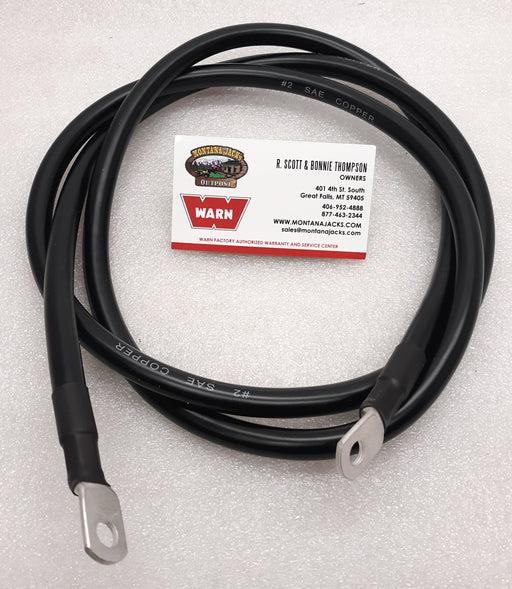

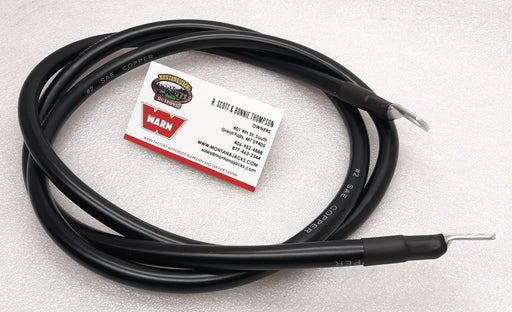

26

15901

GROUND CABLE 2GA

28

93331

S/P CONTROL PACK COVER ASSEMBLY

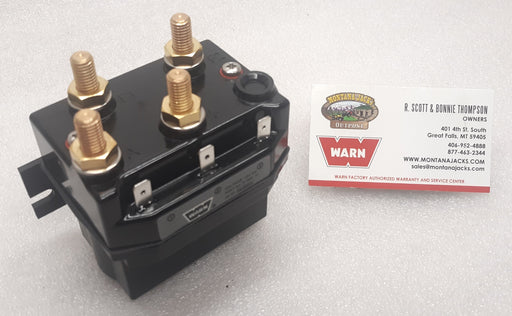

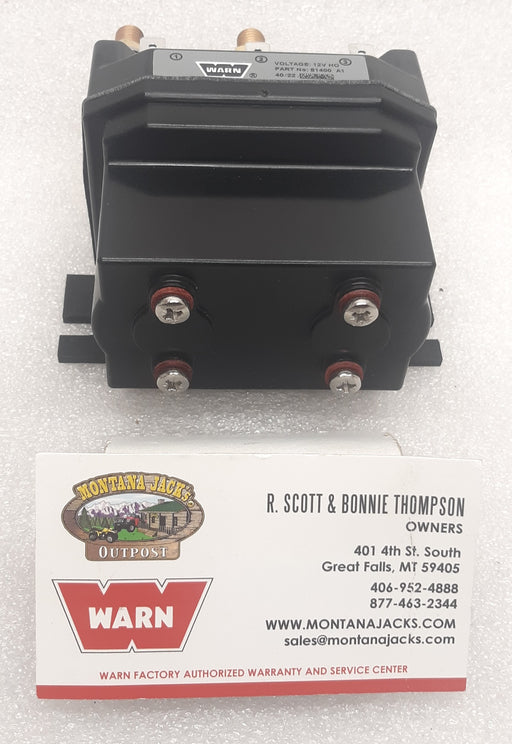

29

81400

S/P 12VDC CONTACTOR

31

89242

S/P, TIE PLATE

32 (comes with four)

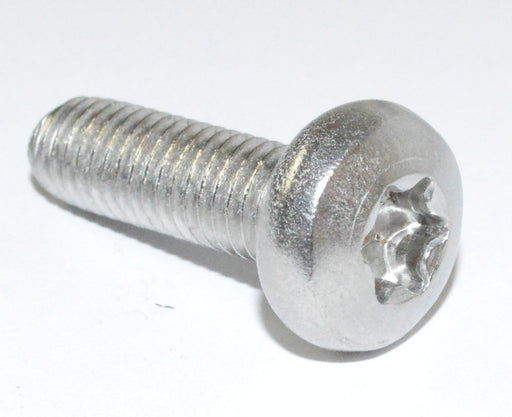

83475

TORX, PAN HEAD, M8-1.25 x 25

36

88682

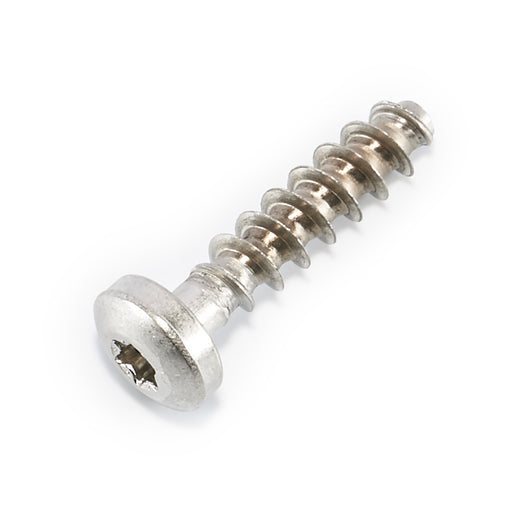

TORX, PAN HEAD, M6-1.0 x 25

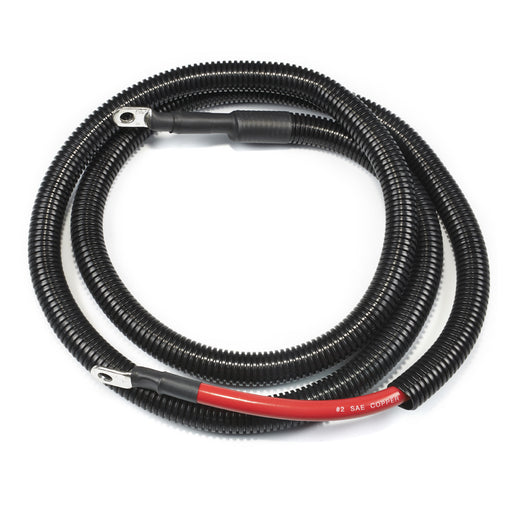

37

83350

POWER CABLE 2GA

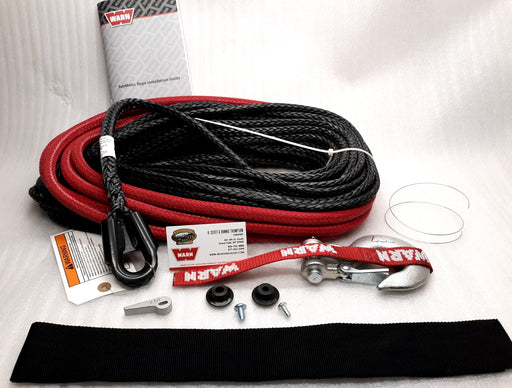

38

87915

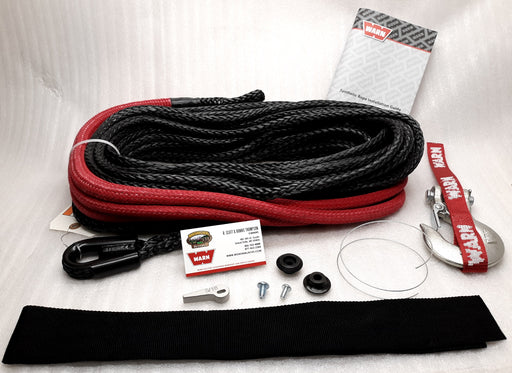

S/P, SYNTHETIC ROPE ASSY, 3/8x100’

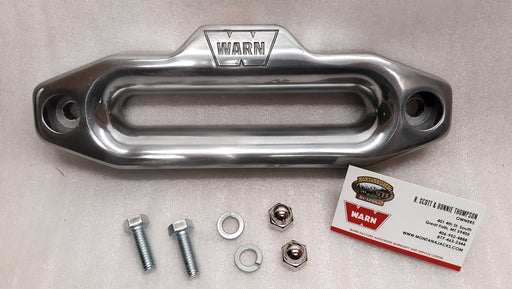

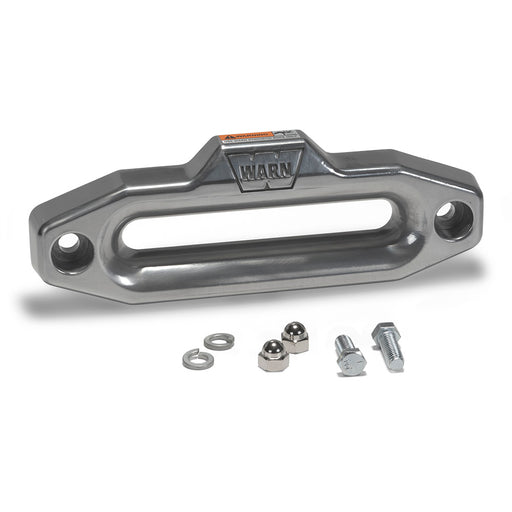

39

87914

S/P, FAIRLEAD, HAWSE

44

90052

ANCHOR_PUCK

45

93332

S/P CONTROL MODULE

46

93334

S/P REMOTE BATTERY
