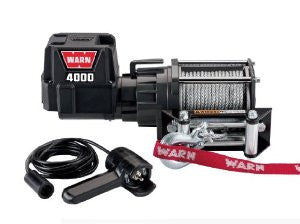

Warn 94000 - 4000 DC Utility Winch

by Warn
Original price $ 0.00 - Original price $ 0.00
Original price $ 0.00
$ 621.14
$ 621.14 - $ 621.14
Current price $ 621.14
Availability:
Only 1 left!

Warn 4000 DC Utility Winch


WARN 4000 DC
Versatile and powerful - great for trailers or the jobsite

Looking to make your job a bit easier? The WARN 4000 DC has the power to move heavy loads quickly and effortlessly. With an impressive pulling capacity and lots of standard features, this winch works hard at making your job easy.

  • 4,000 lb. (1814 kg) pulling capacity lets you move a variety of heavy objects
  • 12-volt power for portability, ideal for use on trailers or hitch mounts
  • Outstanding duty cycle, durability, and reliability
  • Powerful 1.9 horsepower permanent magnet DC motor with outstanding duty cycle
  • 43' of 7/32" (13m of 6mm) wire rope with hook and clasp
  • Remote plug accepts 12' (3.7m) corded remote (included)
  • Convenient easy-lift clutch lever
  • Durable, reliable three-stage planetary geartrain
  • Dynamic and mechanical braking for excellent control and holding power
  • Roller fairlead
4000 DC SPECS
Part Number: PN 94000
Rated Line Pull: 4,000 lbs. (1864 kgs)
Motor: Permanent Magnet
HP: 1.9 HP
Power: 12 volt DC
Switch Type: Remote with 12'(3.7 m) Lead
Drum Diameter: 2.375" (6.03 cm)
Gear Train: 3-Stage planetary
Clutch: Lever - Multi-Directional
Hole Pattern: 3 holes
Gear Ratio: 176:1
Brake: Dynamic and mechanical braking
Rope: Wire, 7/32" X 43' (13 m)
Fairlead: Roller
Electrical Leads: 2 - 6' (1.8 m) x 6 gauge cable
Warranty: 1 year limited
Replacement Wire Rope: PN 78987
12V DC PERFORMANCE SPECS (first layer of drum)
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 20.4(6.2) 31.5 Amps 1/4000(1814)
1000(453.6) 14.2(4.3) 65.3 Amps 3/3710(1683)
2000(907.2) 10.9(3.3) 96.1 Amps 3/3470(1574)
3000(1361) 7.7(2.4) 125.4 Amps 4/3250(1474)
4000(1814) 4.7(2.7) 155.4 Amps

Above performance specs are based on first layer of drum



Buy with confidence from Montana Jack's, we are your WARN Authorized Warranty and Service Center.
We are a Factory Direct WARN Distributor and we stand behind our WARN products for the full manufacturer's warranty period.
