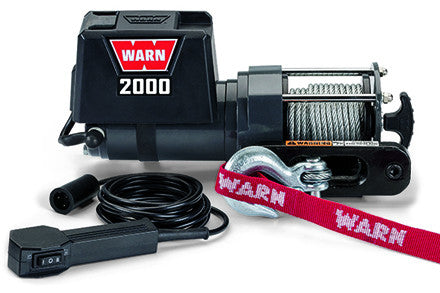

WARN 92000 - Utility Winch 2000 DC


WARN 2000 DC
A compact utility winch packed with full-sized features

Although this winch might be smaller in size, it's big on value. The WARN 2000 DC Utility Winch has all of the features you'll want, and it's small size allows it to be mounted in tight spots. Designed to pull lighter loads, this winch will help you move more material in less time.

  • 2,000 lb. (907 kg) capacity with plenty of power for smaller jobs
  • 12-volt power for portability - ideal for use on trailers or hitch mounts
  • Outstanding duty cycle, durability, and features
  • Strong 1.6 horsepower permanent magnet DC motor with outstanding duty cycle
  • 35' of 3/16" (10.7m of 4.7mm) wire rope with hook and clasp
  • Remote plug accepts 12' (3.7m) corded remote (included)
  • Ergonomic, multi-directional clutch lever
  • Durable, differential planetary geartrain
  • Dynamic braking for great control and holding power
  • Hawse fairlead
2000 DC SPECS
Part Number: PN 92000
Rated Line Pull: 2,000 lbs. (907 kgs)
Motor: Permanent Magnet
Switch Type: Remote Control
Brake: Self-locking gear train (Rated Load Holding)
Wire Rope: 3/16" X 35' (10.7 m)
HP: 1.6 HP 3.0"
Power: 12 volt DC
Gear Train: Split Ring Gear
Clutch: Knob, pull and turn
Drum Diameter: 1-1/4 in. (3.18 cm)
Fairlead: Hawse
Hole Pattern: 2 Holes on 3.1" (7.87 cm) center
Gear Ratio: 153:1
Electrical Leads: 2 - 6' (1.8 m)
Weight: 18 lbs. (8.2 kg.)
Warranty: 1 year limited
12V DC PERFORMANCE SPECS (first layer of drum)
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 7.2(2.2) 6.7 1/2000(907)
500(226.8) 6.8(2.0) 24.1 2/ 1504 (683)
1000(453.6) 5.7(1.7) 44.7 3/1348(612)
1500(680.4) 4.8(1.4) 72.0 4/1222(555)
2000(907) 4.2(1.3) 80.0 5/1117(507)

Above performance specs are based on first layer of drum



Buy with confidence from Montana Jack's, we are your WARN Authorized Warranty and Service Center.
We are a Factory Direct WARN Distributor and we stand behind our WARN products for the full manufacturer's warranty period.
