WARN Endurance 12.0 Truck Winch Parts

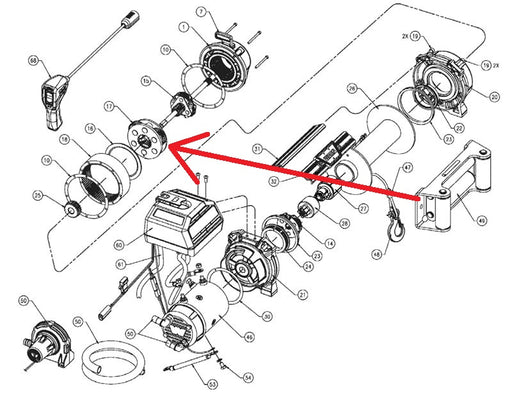

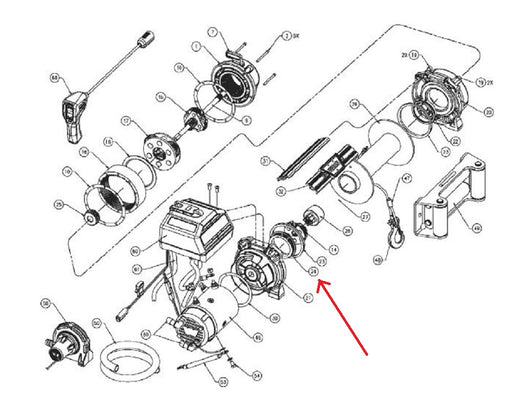

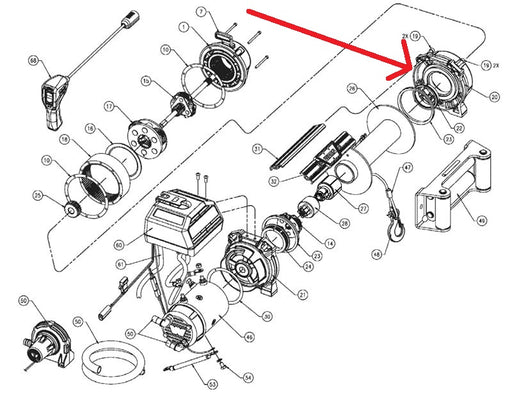

This is a parts list for WARN Endurance 12.0 Truck Winch Parts. The numbers in the circles correspond with the parts below. Choose the parts you need from above and order the part below. If you don't see the part you need, please call and ask for tech support at 1-877-463-2344 or e-mail us at sales@montanajacks.com.

WARN Endurance 12.0 Truck Winch Parts
ITEM #	PART #	Description

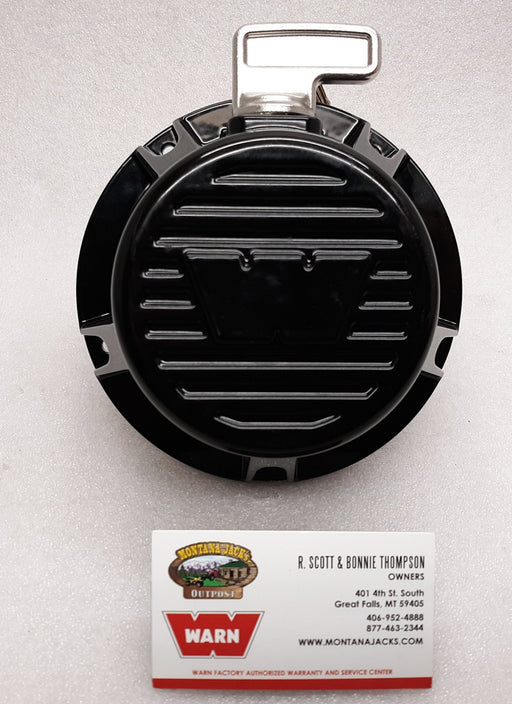

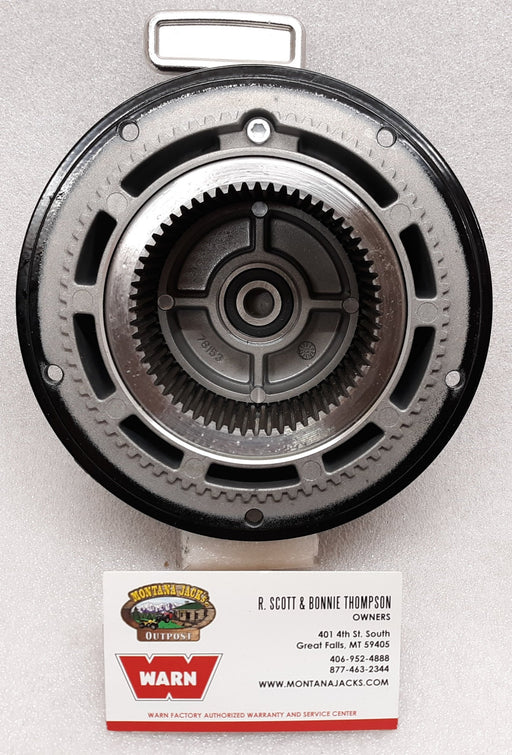

1	79595	S/P, END HSG, FAN COOLED (includes items 4, 5, & 7)
N/S	79621	S/P, LABEL KIT, 12.0
3 (comes with five)	35151	SOCKET HEAD CAPSCREW, 10-24 x 2-1/4”, SS
4	N/S	DETENT SCREW
5	N/S	O-RING SEAL
7	79596	CLUTCH LEVER (includes items 4 & 5)
9	N/A	HEX SHAFT, HS 12000
10 (comes with two)	13848	GASKET
14	28430	CARRIER ASSEMBLY, STAGE 1
15	84028	CARRIER ASSEMBLY, STAGE 2
16	13826	THRUST BEARING

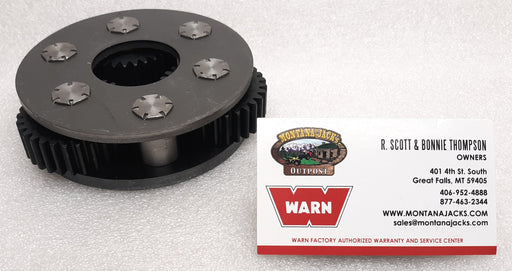

17	78846	CARRIER ASSEMBLY, STAGE 3
18	25308	RING GEAR
19 (comes with four)	77896	TPSCR,THREAD CUTTING 5/16-18 x 1-1/4

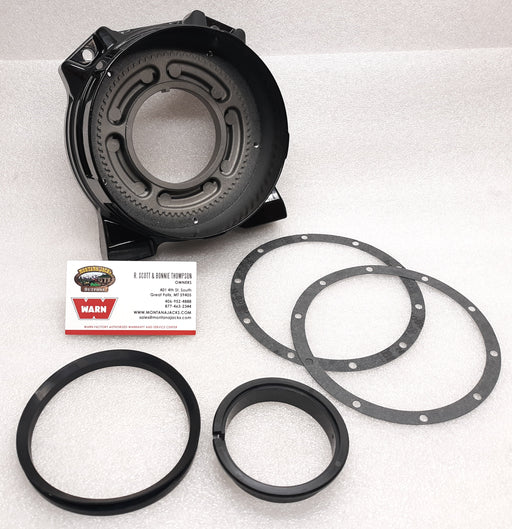

20	79597	S/P, DRUM SPRT, GRTRN, FC (Must include Label Kit Part No. 79621)
21	79598	S/P, DRUM SPRT, MTR, FC
22	13831	DRUM BUSHING
23 (comes with two)	63542	SEAL, V-RING
24	63544	BUSHING, DRUM, THICK WALL
25	14584	DRIVE SPLINED
26	26107	DRUM ASSEMBLY
27	79623	S/P, BRAKE ASSY, FAN COOLED (includes items 9 & 28)
28	39480	MOTOR COUPLER
30	63533	GASKET, MOTOR

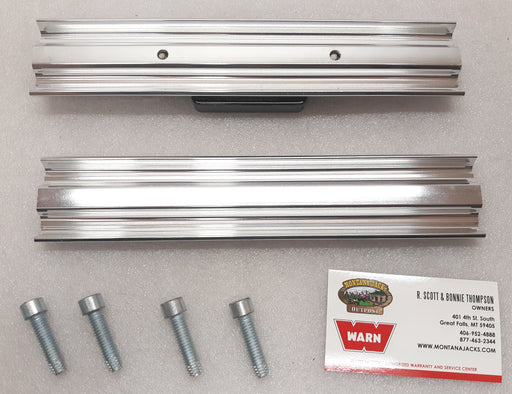

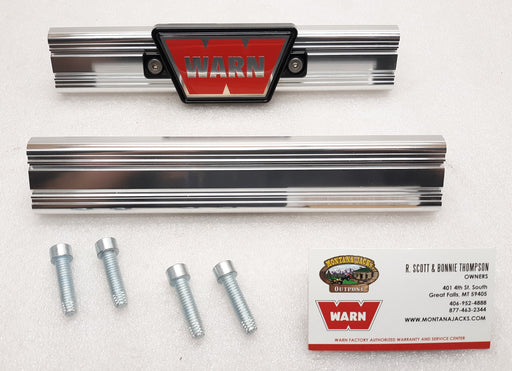

31	79603	S/P, TIE RODS (FAN COOLED ONLY) (REAR & includes #32)
32	N/A	FRONT W/EMBLEM
46	79599	S/P, MOTOR, FAN COOLED
47	74313	WIRE ROPE ASSEMBLY, 3/8 x 80’ (includes item 47A)
47A	79626	S/P, TERMINAL KIT, 3/8, FC
48	63979	CLEVIS HOOK, 7/16” LATCHING
49	5742	FAIRLEAD, ROLLER

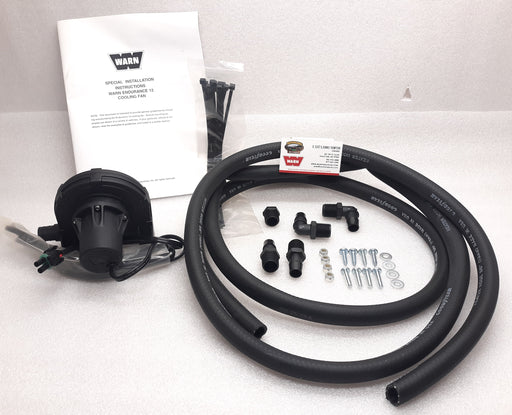

50	79620	FAN ASSY, KIT (2X FITTING, BARBED-TUBE, 5/8 I.D.) (HOSE, FAN, 10 FT) (MOUNTING HARDWARE)
N/S	2090	BOOT, ELECTRICAL TERMINAL
53	15901	CABLE ASSEMBLY, ELECTRIC, 2 GA x 72” (BLACK)
54	26744	HEX HEAD CAPSCREW, M8 x 1.25 x 12mm
60	79600	S/P,CNTRL-PACK, ENDURANCE 12.0
N/S	36729	(CONTACTOR, 12V) (INCLUDES ITEM 61)
61	33295	CABLE ASSEMBLY, ELECTRIC 2 GA x 72” (RED)
68	83669	S/P, REMOTE-CONTROL_FAN COOLED
	__________

Sold Out

WARN 63542 Winch V-Ring Drum Seal for Endurance 12.0 and 9.0Rc Winches

$ 6.83

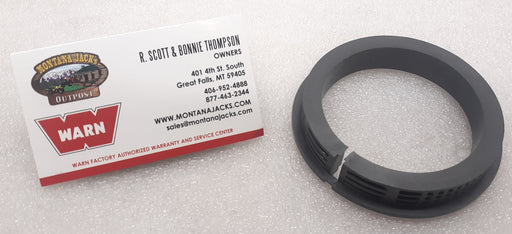

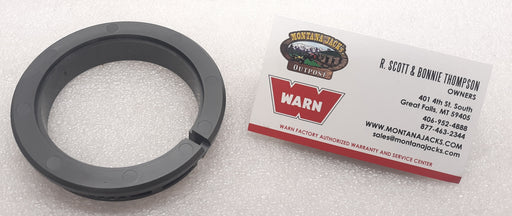

WARN 63544 Winch Drum Bushing for the Endurance 12.0

$ 19.97

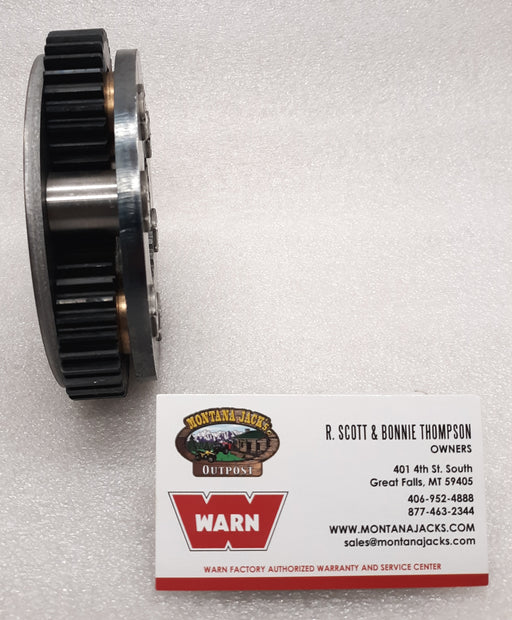

WARN 78846 Stage 3 Carrier Gear Assembly for Endurance 12.0 Truck/SUV Winch

$ 74.89

WARN 79595 Winch Gear End Housing for Endurance 12.0

$ 178.41

WARN 79596 Winch Clutch Lever for 9.5ti, 9.5cti & Endurance 12.0

$ 54.68

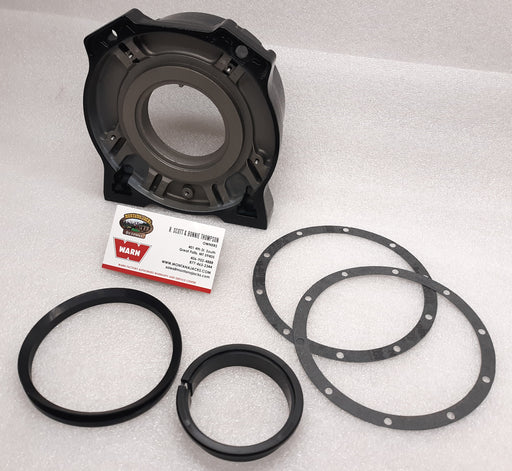

WARN 79597 Gear End Drum Support for Endurance 12.0 Truck Winch

$ 148.54

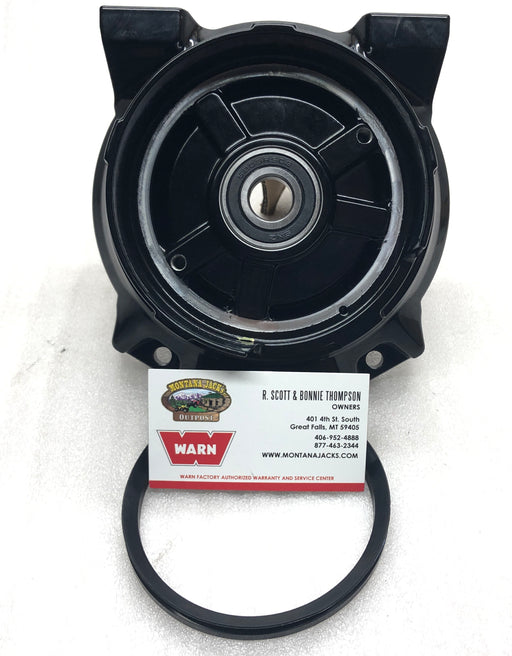

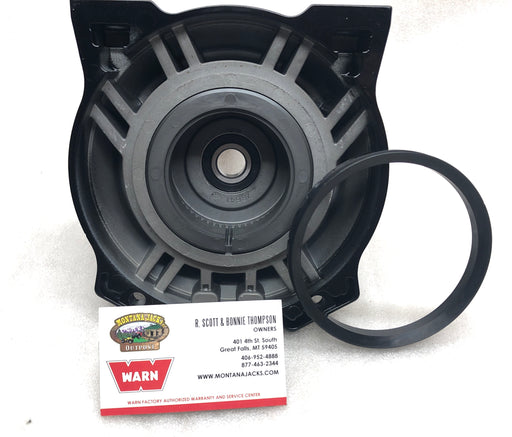

WARN 79598 Motor End Drum Support for Endurance 12.0 Truck/SUV Winch

$ 149.54

Sold Out

WARN 79599 Winch Motor for 12.0 Endurance Truck Winch, Fan cooled

$ 325.67

Sold Out

WARN 79600 Control Pack for Endurance 12.0 Winch

$ 499.57

WARN 79603 Winch Tie Rod for Endurance 12.0

$ 112.58

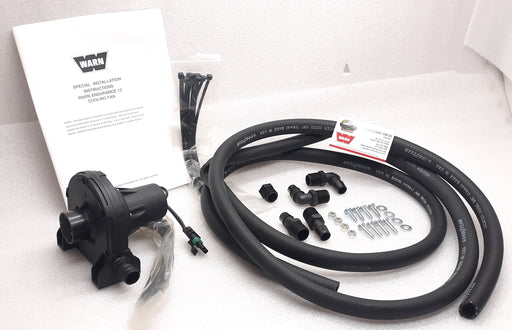

WARN 79620 Fan Kit for Endurance 12.0 Winch

$ 389.68

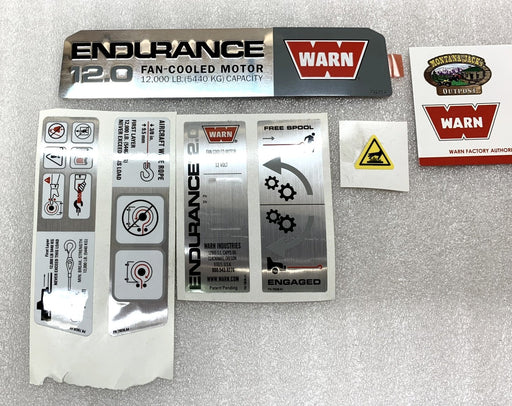

WARN 79621 Label Decal Kit for Endurance 12.0 Truck/SUV Winch

$ 36.21

WARN 79623 Winch Brake Service Kit for Endurance 12.0

$ 268.74

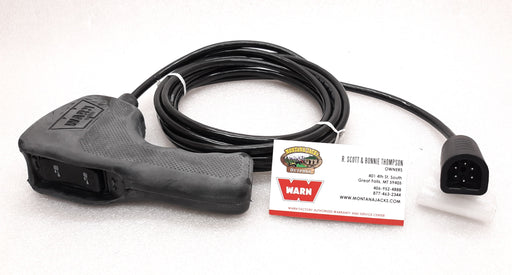

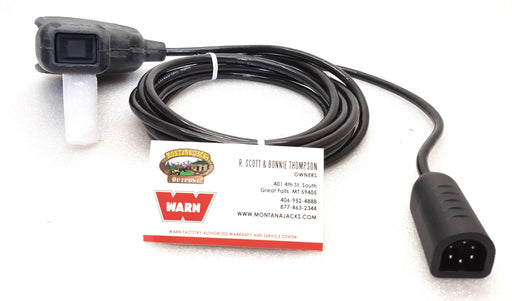

WARN 83669 Remote Control for Endurance 12.0 Winch

$ 99.82

WARN 84028 Winch Carrier Gear Assembly Stage 2, Endurance 12.0 & PowerPlant 12

$ 132.57
