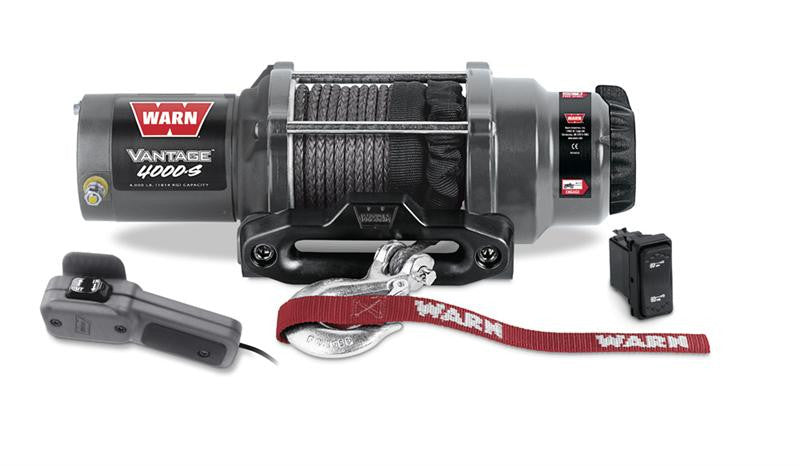

WARN 89041 Vantage 4000 Synthetic Winch

OPEN BOX WARN 89041 Vantage 4000 Synthetic UTV/ATV Winch

by Warn
Sold out
$ 483.69
$ 483.69 - $ 483.69
$ 483.69
$ 393.62
$ 393.62 - $ 393.62
$ 393.62
SKU WRN-89041-OB
Availability:
Out of stock
Vantage-4000-s

This winch has been REBOXED due to freight damage, item itself is still new, but because of the new packaging, manufacture's warranty is void, Montana Jack's Outpost will warranty against defects for 6 months.

Vantage 4000-S
High pulling capacity and synthetic rope for Side x Side applications
This is the perfect winch for Side x Side owners who need reliable big pulling power. With a stout 4,000 lb. pulling capacity, 55' of wire rope, and best-in-class performance, the Vantage 4000-S will pull the biggest Side x Sides with confidence.
  • 50' of 7/32" synthetic rope and black powder-coated hawse fairlead
  • Fully sealed motor and drive train to keep the elements out
  • Three-stage planetary gear train for smooth, efficient operation
  • High-strength composite gear housing and all-metal gears
  • Mechanical spring brake for control while winching
  • Includes dash-mounted mini rocker switch and corded remote control

Vantage-4000-s-action
This is the perfect winch for Side x Side owners who want a powerful 4,000 lb. capacity unit
with lightweight, easy-to-handle synthetic rope.
SPECS/PART NUMBERS
Part Number: 89041
Rated Line Pull: 4000 lbs. (1814 kgs)
Motor: 12V DC, 1.4 hp (1.0 kW) Permanent Magnet, Sealed
Controls: Dash Mounted Rocker
Gear train: 3-Stage Planetary
Gear Ratio: 180:1
Clutch (Freespool): Cam Activated
Brake: Spring
Drum diameter/length: 2.25"/4.7" (52mm/74mm)
Kit Shipping Weight: 32.0 lbs. (14.5 kgs)
Rope: Synthetic, 7/32 x 50' (4.0mm x 15 m)
Fairlead: Aluminum Hawse
Recommended Battery: 14 Amp/hr minimum
Duty Cycle: Intermittent
Battery leads: 6 gauge
Finish: Grey Powder Coat
Winch Weight: 15.45 lbs. (7.0 kgs)
PERFORMANCE DATA PULL BY LAYER
Line Pull
Lbs.(Kgs.)		 Line Speed
FT./min(M/min.)		 Motor
Current		 Pull by layer
layer/Lbs(Kgs.)
0 18.6 (5.7) 21.6 1/4000 (1814)
500 (227) 15.8 (4.8) 40.7 2/3360 (1524)
1000 (454) 13.7 (4.2) 61.8 3/2822 (1280)
1500 (680) 11.6 (3.5) 84.2 4/2371 (1075)
2000 (907) 10.0 (3) 106.4
2500 (1134) 8.7 (2.7) 129
3000 (1361) 7.3 (2.2) 152.5
3500 (1588) 6.2 (1.9) 176.8
4000 (1814) 5.3 (1.6) 200.8

Vantage-4000-s-winch
Winch Dimensions: 14.57" L. x 4.53" D. x 4.69" H. (370mm L. x 115mm D. x 119mm H.)
Mounting Bolt Pattern: 3.0" x 6.59" (76mm x 167mm)


Buy with confidence from Montana Jack's, we are your WARN Authorized Warranty and Service Center.
We are a Factory Direct WARN Distributor and we stand behind our WARN products for the full manufacturer's warranty period.
