This is a parts list for WARN 9.5xp Truck Winch Parts. The numbers in the circles correspond with the parts below. Choose the parts you need from above and order the part below. If you don't see the part you need, please call and ask for tech support at 1-877-463-2344 or e-mail us at sales@montanajacks.com.

WARN 9.5xp Truck Winch Parts (STARTING SERIAL N0. 1089000)

ITEM #

PART #

Description

1

68605

END HOUSING ASSY, 9.5 XP
   (Includes #2, 4)
   THRUST PLATE
   RING GEAR, SLIDING
   BUSHING

2

68611

CLUTCH LEVER, 9.5 XP
   CLUTCH LEVER DETENT SCREW
   SEAL, QUAD-X
   WASHER, SEAL RETAINER

3

13826

WASHER-THRUST, NYLON

4

13848

HOUSING GASKET
(comes with two)

5

13850

(comes with ten)
CPSCR, 10-24 x 2-1/4,
   HEX SOCKET HEAD

6

68606

DRUM SUPPORT, GEAR, 9.5 XP
   (Includes item #4, 13, & 14)

7

68044

RING GEAR, STEEL GRAY,75T

8

34339

CARRIER ASSEMBLY, STAGE 1

9

34342

CARRIER ASSEMBLY, STAGE 2

10

28432

CARRIER ASSEMBLY, STAGE 3

11

13874

SUN GEAR, 12T

12

27372

DRIVE SHAFT, 10.1

13

BUSHING, DRUM (Included in Kit #41)

14

SEAL, V-RING (Included in Kit #41)

15

14584

DRIVE SPLINE, W/RETAINING RING

16

32455

BRAKE ASSEMBLY
   (Includes item #'s 12, 15, & 17)

17

26006

COUPLER, MOTOR

18

26107

DRUM ASSEMBLY

19

SEAL, V-RING (Included in Kit #41)

20

BUSHING, DRUM (Included in Kit #41)

21

68607

DRUM SUPPPORT, MOTOR, 9.5 XP
   (Includes #'s 19 & 20)

22

GASKET, MOTOR

23

32408

TIE ROD  (comes with two)

24

60451

BOLT,SHCS,THREAD CUT
5/16-18 x 1-1/4
(comes with four)

25

68608

MOTOR, 4.5 BOSCH,MH
   (Includes item #'s 22, 27, 28, & 39)

26

15901

CABLE, ELEC. 2GA, BLACK, 72"

27

1402

WASHER, 5/16-HELICAL

28

26744

CPSCR, M8x1.25 x 12-HEX HEAD

29

CPSCR 1/4-20 x 1/4, BUTTON HEAD

30

16463

TERMINAL, KIT, 5/16 WR
   (Includes #29)

31

68610

COVER, CONTROL PACK,9.5 XP
   (Includes all harness wires)

32

68379

SOLENOID,HIGH CURRENT
(comes with two)

33

28396

SOLENOID,UPRIGHT TERMINALS
(comes with two)

34

68384

CABLE, ELEC. 2GA, RED, 72"

35

68609

CONTROL PACK, 9.5 XP,
   (Includes #31, 32, 33, & 34)

36

38312

WIRE ROPE ASSEMBLY, 5/16 x 100' W/THIMBLE

37

63979

HOOK, 3/8 LATCHING HOOK

38

72568

S/P,REMOTE CONTROL W/FLASHLIGHT

39

13455

NUT, M8x1.25, HEX
(comes with three)

40

5742

FAIRLEAD, ROLLER

41

68615

SEAL, KIT, 9.5 XP
   (Includes #'s 13, 14, 19, & 20)

42

68614

LABEL KIT,9.5 XP

__________

Filters

$
$
  • WARN 101577 Winch Control Pack for 9.5xp, 9.5xp-s
    WARN 101577 Winch Control Pack for 9.5xp, 9.5xp-s

    WARN 101577 Winch Contactor Pack for Mid-Frame Truck Winches

    Warn
    $ 541.81 - $ 541.81
    $ 541.81
    $ 541.81 - $ 541.81
    $ 541.81
    Only 2 left!

    WARN Winch Contactor Control Pack Single Contactor style For the following WARN Winch Models: M8000, M8 XD9000 9.5xp 9.5xp-s HS9500 (not the 9500i...

    View full details
    $ 541.81 - $ 541.81
    $ 541.81
    $ 541.81 - $ 541.81
    $ 541.81
  • WARN 102641 Stealth Series Winch Cover for M8, XD9, 9.5XP, VR8000, VR10000, VR12000
    WARN 102641 Stealth Series Winch Cover for M8, XD9, 9.5XP, VR8000, VR10000, VR12000

    WARN 102641 Stealth Series Winch Cover for M8, XD9, 9.5XP, VR8000, VR10000, VR12000

    Warn
    $ 92.88 - $ 92.88
    $ 92.88
    $ 92.88 - $ 92.88
    $ 92.88
    in stock

    WARN 102641 Stealth Series Winch Cover For the following WARN Truck/SUV Winch Models: M8 XD9 9.5XP VR8000, VR10000, VR12000 Tabor 8K, 9K, 10K, 12K...

    View full details
    $ 92.88 - $ 92.88
    $ 92.88
    $ 92.88 - $ 92.88
    $ 92.88
  • WARN 83350 Winch Power Cable 2 GA, 72" w/Protective Sheath

    WARN 109452 Winch Power Cable 2 GA, 72" w/Protective Sheath

    Warn
    $ 88.30 - $ 88.30
    $ 88.30
    $ 88.30 - $ 88.30
    $ 88.30
    Only 2 left!

    WARN Winch Power Cable 2 Gauge, 72" with Protective Sheath  For Numerous WARN winches, Including: M6000 9.5xps ZEON 10 (S), ZEON 10 (S) Platinum Z...

    View full details
    $ 88.30 - $ 88.30
    $ 88.30
    $ 88.30 - $ 88.30
    $ 88.30
  • WARN 13826 Nylon Thrust Washer, for XD9000i, M Series, 16.5ti Winches & others
    WARN 13826 Nylon Thrust Washer- Midrange

    WARN 13826 Nylon Thrust Washer, for XD9000i, M Series, 16.5ti Winches & others

    Warn
    $ 0.00 - $ 0.00
    $ 0.00
    $ 14.67
    $ 14.67 - $ 14.67
    $ 14.67
    in stock

    WARN Nylon Thrust Washer- Midrange For the following WARN Winch & Hoist models: M4500, MX4500, M6000, M8000, M10000, M12000, M15000, M12, M15 ...

    View full details
    $ 0.00 - $ 0.00
    $ 0.00
    $ 14.67
    $ 14.67 - $ 14.67
    $ 14.67
  • WARN 13848 Housing Gasket

    WARN 13848 Winch and Hoist Housing Gasket

    Warn
    $ 0.00 - $ 0.00
    $ 0.00
    $ 12.52
    $ 12.52 - $ 12.52
    $ 12.52
    in stock

    WARN Winch and Hoist Housing Gasket Outside diameter of gasket 5.5" Listing is for SINGLE GASKET, for pair of gaskets, see WRN-98274 For numerous W...

    View full details
    $ 0.00 - $ 0.00
    $ 0.00
    $ 12.52
    $ 12.52 - $ 12.52
    $ 12.52
  • WARN 14854 Splined Drive w/retaining ring

    WARN 14584 Splined Winch Drive Gear for M8000, XD9000, 9.5xp, PowerPlant12 & others

    Warn
    $ 0.00 - $ 0.00
    $ 0.00
    $ 55.09
    $ 55.09 - $ 55.09
    $ 55.09
    in stock

    WARN Splined Winch Drive Gear For the following WARN Winch & Hoist Models: M6000, M8000 XD9000, XD9000i, 9.0rc, Tabor 9K 9.5xp, 9.5xp-s, 9.5ti...

    View full details
    $ 0.00 - $ 0.00
    $ 0.00
    $ 55.09
    $ 55.09 - $ 55.09
    $ 55.09
  • WARN 16463 Terminal Kit 5/16"

    WARN 16463 Winch Cable Terminal Kit 5/16" for M8000, XD9000, 9.5xp, VR8000 & others

    Warn
    $ 0.00 - $ 0.00
    $ 0.00
    $ 18.47
    $ 18.47 - $ 18.47
    $ 18.47
    in stock

    WARN Winch Cable Terminal Kit 5/16" For the following WARN Winch Models: M4500, M6000, MX6085, M8000 VR8000, X8000i XD9000, XD9000i, Tabor 9K 9.5t...

    View full details
    $ 0.00 - $ 0.00
    $ 0.00
    $ 18.47
    $ 18.47 - $ 18.47
    $ 18.47
  • WARN 24335 Roller Fairlead, BLACK, for ZEON, VR, XD, & Others
    WARN 24335 Roller Fairlead, BLACK, for ZEON, VR, XD, & Others

    WARN 24335 Roller Fairlead, BLACK, for 8" DRUM!! 10" mounting

    Warn
    $ 408.88 - $ 408.88
    $ 408.88
    $ 408.88 - $ 408.88
    $ 408.88
    Only 2 left!

    WARN Roller Fairlead, BLACK Heavy Duty with brass bushings for Industrial winches with 8" drum Also fits all WARN Truck Winch Models with 10" fairl...

    View full details
    $ 408.88 - $ 408.88
    $ 408.88
    $ 408.88 - $ 408.88
    $ 408.88
  • WARN 26006 Winch Motor Coupler for M8000, XD9000, 9.5xp, 9.0rc
    Sold out

    WARN 26006 - OBSOLETE - Replaced with 98394

    Warn
    $ 0.00 - $ 0.00
    $ 0.00
    $ 0.00 - $ 0.00
    $ 0.00
    Out of stock

    WARN Winch Motor Coupler OBSOLETE - Replaced with 98394 WRN-26006

    $ 0.00 - $ 0.00
    $ 0.00
    $ 0.00 - $ 0.00
    $ 0.00
    Sold out
  • WARN 26107 Winch Drum for M6000, M8000, 9.5XP, XD9000, XD9000i, 9.5ti, & others

    WARN 26107 Winch Drum, VR Series, XD, M8000, other fitment in listing

    Warn
    $ 104.01 - $ 104.01
    $ 104.01
    $ 104.01 - $ 104.01
    $ 104.01
    in stock

    WARN Winch Drum AssemblyDiscontinued - Replaced by 98767 Fits the following WARN Winch Models: M6000, M8000 VR8(s), VR8000(s), VR10(s),VR10000(s),...

    View full details
    $ 104.01 - $ 104.01
    $ 104.01
    $ 104.01 - $ 104.01
    $ 104.01
  • WARN 26744 Winch Motor Ground Bolt
    WARN 26744 Winch Motor Ground Bolt

    WARN 26744 Winch Motor Ground Bolt, M8 x 1.25 x 12mm Cap Screw

    Warn
    $ 4.28 - $ 4.28
    $ 4.28
    $ 4.28 - $ 4.28
    $ 4.28
    in stock

    WARN Cap Screw, M8 x 1.25 x 12mm For Numerous WARN Winch Models, Including: M8274-50 M8000, M8000S VR Series, Gen I and Gen II XD9000, XD9000i 9.5...

    View full details
    $ 4.28 - $ 4.28
    $ 4.28
    $ 4.28 - $ 4.28
    $ 4.28
  • WARN 27372 Winch Driveshaft for M8000, XD9000, 9.5xp & others
    WARN 27372 Winch Driveshaft for M8000, XD9000, 9.5xp & others

    WARN 27372 Winch Driveshaft for M6000, M8000, XD9000, XD9000i, 9.5xp, 9.5xp-s

    Warn
    $ 21.36 - $ 21.36
    $ 21.36
    $ 21.36 - $ 21.36
    $ 21.36
    in stock

    WARN Winch Driveshaft Fits the following WARN Winch Models: M6000, some versions of the MX6085 M8000 XD9000, XD9000i 9.5xp, 9.5xp-s 10.1" long x ...

    View full details
    $ 21.36 - $ 21.36
    $ 21.36
    $ 21.36 - $ 21.36
    $ 21.36
  • WARN 28432 Carrier Assembly Stage 3

    WARN 28432 Winch/Hoist Carrier Assy. Stage 3, for M8000, XD9000i, 9.5si, &others

    Warn
    $ 67.83 - $ 67.83
    $ 67.83
    $ 67.83 - $ 67.83
    $ 67.83
    in stock

    WARN Carrier Assembly Stage 3 Fits the following WARN Winch and Hoist Models: M6000, M8000,  CE M12000 XD9000, XD9000i -There are different gear r...

    View full details
    $ 67.83 - $ 67.83
    $ 67.83
    $ 67.83 - $ 67.83
    $ 67.83
  • WARN 32408 Winch Tie Rod, Aluminum .625 X 8.92, Fitment chart in listing.

    WARN 32408 Winch Tie Rod, Single w/bolts, .625 X 8.92, Fitment chart in listing.

    Warn
    $ 0.00 - $ 0.00
    $ 0.00
    $ 27.84
    $ 27.84 - $ 27.84
    $ 27.84
    in stock

    WARN Aluminum Tie Rod with bolts .625 X 8.92 For the following WARN Winch Models: M6000, M8000, MX12085 XD9000 9.5xp, 9.5xp-s HS9500 M12, M12-S, M...

    View full details
    $ 0.00 - $ 0.00
    $ 0.00
    $ 27.84
    $ 27.84 - $ 27.84
    $ 27.84
  • WARN 32408WB Winch Tie Rod Set w/bolts, .625 X 8.92, Fitment chart in listing.

    WARN 32408WB Winch Tie Rods, Set of 2 w/bolts, .625 X 8.92, Chart in listing

    Warn
    $ 43.48 - $ 43.48
    $ 43.48
    $ 43.48 - $ 43.48
    $ 43.48
    in stock

    WARN Winch Aluminum Tie Rod Set with Bolts For the following WARN Winch Models: M6000, M8000, MX12085 XD9000 9.5xp, 9.5xp-s M12, M12-S, M12000, M1...

    View full details
    $ 43.48 - $ 43.48
    $ 43.48
    $ 43.48 - $ 43.48
    $ 43.48
  • WARN 34339 Carrier Assembly for XD9000 (i), 9.5xp, M6000
    WARN 34339 Carrier Assembly for XD9000 (i), 9.5xp, M6000

    WARN 34339 Carrier Assembly for XD9000 (i), 9.5xp, M6000

    Warn
    $ 61.19 - $ 61.19
    $ 61.19
    $ 61.19 - $ 61.19
    $ 61.19
    in stock

    WARN 34339 Carrier Assembly, Stage 1 Fits the following WARN winch models: M6000 XD9000 & XD9000i - There are different gear ratios for these ...

    View full details
    $ 61.19 - $ 61.19
    $ 61.19
    $ 61.19 - $ 61.19
    $ 61.19
  • WARN 34342 Stage 2 Carrier, M6000, XD9000, 9.5ti, 9.5xp, 9.5cti, HS9500i, HY2000
    Sold out

    WARN 34342 - Discontinued - Replaced by 98763

    Warn
    $ 0.00 - $ 0.00
    $ 0.00
    $ 0.00 - $ 0.00
    $ 0.00
    Out of stock

    WARN 34342 - Discontinued - Replaced by 98763 For the following WARN Winch and Hoist Models: M6000 XD9000 & XD9000i - There are different gear...

    View full details
    $ 0.00 - $ 0.00
    $ 0.00
    $ 0.00 - $ 0.00
    $ 0.00
    Sold out
  • WARN 34373 Wire Rope Tensioner
    WARN 34373 Tensioner plate

    WARN 34373 Wire Rope Tensioner for Series 6 Industrial Winch

    Warn
    $ 207.66 - $ 207.66
    $ 207.66
    $ 207.66 - $ 207.66
    $ 207.66
    Only 1 left!

    WARN 34373 Wire Rope Tensioner for Series 6 Industrial Winch Prevents Wire Rope Tangling When Freespooling. Assists In Uniform Wire Rope Spooling ...

    View full details
    $ 207.66 - $ 207.66
    $ 207.66
    $ 207.66 - $ 207.66
    $ 207.66
  • WARN 38314 Wire Rope - 5/16 in. x 100 ft.

    WARN 38314 Wire Winch Rope - 5/16 in. x 100 ft.

    Warn
    $ 232.53 - $ 232.53
    $ 232.53
    $ 232.53 - $ 232.53
    $ 232.53
    Only 2 left!

    WARN Wire Winch Rope - 5/16 in. x 100 ft.  For the following WARN Winch Models: M8000 XD9000 Tabor 9K 9.5xp HS9500 An replacement for damaged wi...

    View full details
    $ 232.53 - $ 232.53
    $ 232.53
    $ 232.53 - $ 232.53
    $ 232.53
  • WARN 5742 Roller Fairlead Assembly for WARN Truck Winches
    WARN 5742 Roller Fairlead Assembly for WARN Truck Winches

    WARN 5742 Roller Fairlead Assembly for WARN Truck Winches

    Warn
    $ 0.00 - $ 0.00
    $ 0.00
    $ 234.97
    $ 234.97 - $ 234.97
    $ 234.97
    in stock

    WARN Roller Fairlead Assembly for WARN Truck Winches For WARN Truck/SUV Winches over 4000lbs/1814kgs capacity, including: M8274-50 & previous ...

    View full details
    $ 0.00 - $ 0.00
    $ 0.00
    $ 234.97
    $ 234.97 - $ 234.97
    $ 234.97
  • WARN 63542 Winch V-Ring Drum Seal for Endurance 12.0 and 9.0Rc Winches
    WARN 63542 Winch V-Ring Drum Seal for Endurance 12.0 and 9.0Rc Winches

    WARN 63542 Winch V-Ring Drum Seal, SINGLE, fitment in listing

    Warn
    $ 12.89 - $ 12.89
    $ 12.89
    $ 12.89 - $ 12.89
    $ 12.89
    in stock

    WARN Winch V-Ring Drum Seal Listing is for SINGLE seal For the following WARN Truck/SUV Winch Models: 9.5ti 9.5cti 9.5xp PowerPlant 9.5 PowerPlant...

    View full details
    $ 12.89 - $ 12.89
    $ 12.89
    $ 12.89 - $ 12.89
    $ 12.89
  • WARN 68044 Winch Ring Gear for 9.5xp
    WARN 68044 Winch Ring Gear for 9.5xp
    Sold out

    WARN 68044 Winch Ring Gear - USE WRN-98527

    Warn
    $ 0.00 - $ 0.00
    $ 0.00
    $ 0.00 - $ 0.00
    $ 0.00
    Out of stock

    WARN Winch Ring Gear 75 tooth DISCONTINUED - Use WRN-98527 The 98527 is the same ring gear, but a lighter color of gray For the following WARN Winc...

    View full details
    $ 0.00 - $ 0.00
    $ 0.00
    $ 0.00 - $ 0.00
    $ 0.00
    Sold out
  • WARN 68606 Winch Drum Support Kit, Gear End, for 9.5xp, 9.5xp-s
    WARN 68606 Winch Drum Support Kit, Gear End, for 9.5xp, 9.5xp-s

    WARN 68606 Winch Drum Support Kit, Gear End, for 9.5xp, 9.5xp-s

    Warn
    $ 127.07 - $ 127.07
    $ 127.07
    $ 127.07 - $ 127.07
    $ 127.07
    Only 2 left!

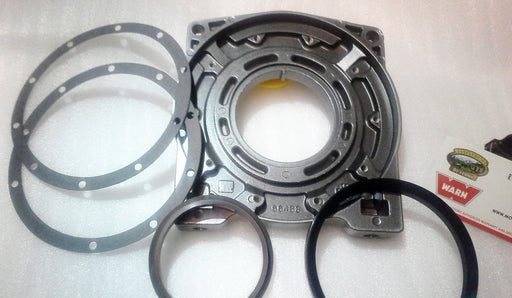

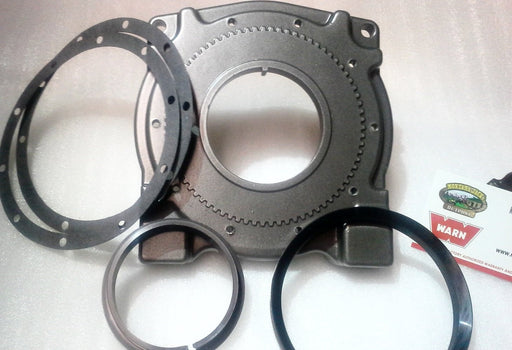

    WARN Winch Drum Support Kit, Gear End For the following WARN Winch Models: 9.5xp, 9.5xp-s Kit includes: Gear end drum support Drum support bushi...

    View full details
    $ 127.07 - $ 127.07
    $ 127.07
    $ 127.07 - $ 127.07
    $ 127.07
  • WARN 68607 Winch Drum Support Kit, Motor End, for 9.5xp, 9.5xp-s
    WARN 68607 Winch Drum Support Kit, Motor End, for 9.5xp, 9.5xp-s

    WARN 68607 Winch Drum Support Kit, Motor End, for 9.5xp, 9.5xp-s

    Warn
    $ 118.74 - $ 118.74
    $ 118.74
    $ 118.74 - $ 118.74
    $ 118.74
    in stock

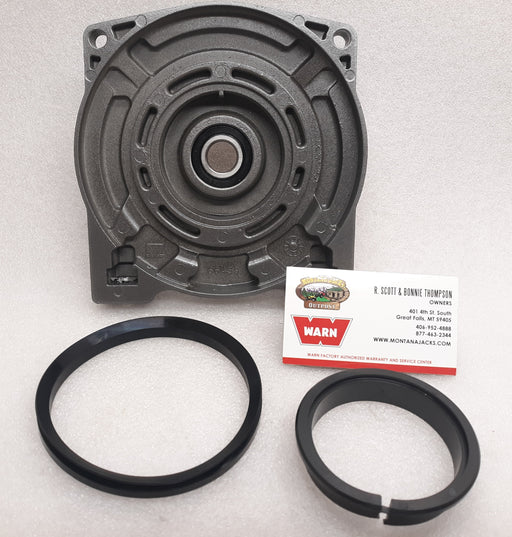

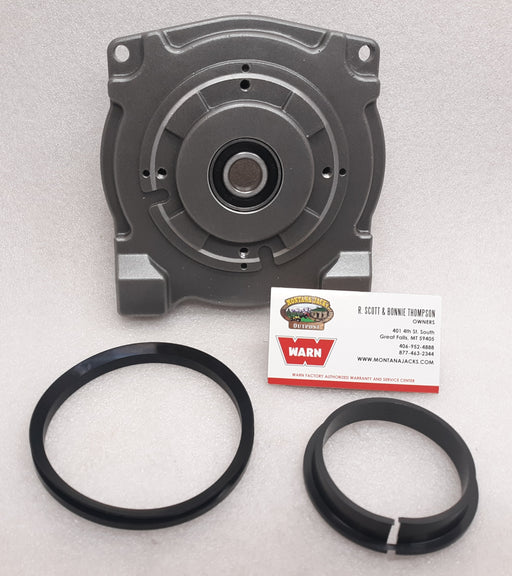

    WARN Winch Drum Support Kit, Motor End For the following WARN Winch Models: 9.5xp, 9.5xp-s Kit includes: Motor end drum support Drum support bus...

    View full details
    $ 118.74 - $ 118.74
    $ 118.74
    $ 118.74 - $ 118.74
    $ 118.74
