WARN 9.5xp-s Synthetic Truck Winch Parts

This is a parts list for WARN 9.5xp-s Synthetic Truck Winch Parts. The numbers in the circles correspond with the parts below. Choose the parts you need from above and order the part below. If you don't see the part you need, please call and ask for tech support at 1-877-463-2344 or e-mail us at sales@montanajacks.com.

WARN 9.5xp-s Synthetic Truck Winch Parts
ITEM #	PART #	Description
1	68605	END HOUSING ASSY, 9.5 XP (Includes #2, 4) THRUST PLATE RING GEAR, SLIDING BUSHING
2	68611	CLUTCH LEVER, 9.5 XP CLUTCH LEVER DETENT SCREW SEAL, QUAD-X WASHER, SEAL RETAINER
3	13826	WASHER-THRUST, NYLON
4	13848	HOUSING GASKET (comes with two)
5	13850	(comes with ten) CPSCR, 10-24 x 2-1/4, HEX SOCKET HEAD

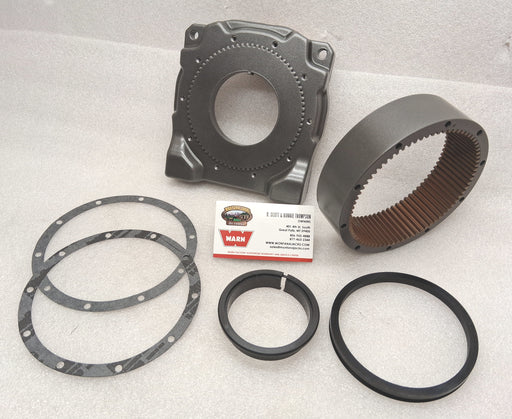

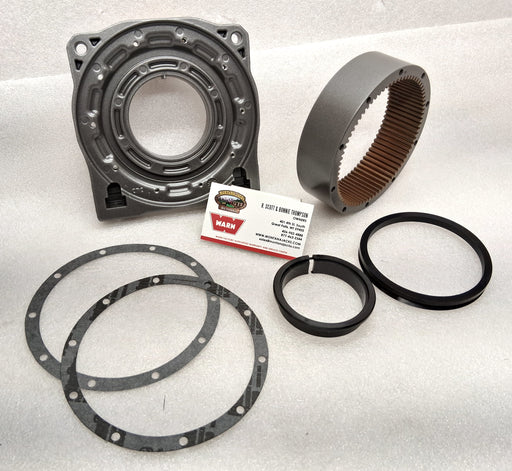

6	68606	DRUM SUPPORT, GEAR, 9.5 XP (Includes item #4, 13, & 14)
7	68044	RING GEAR, STEEL GRAY,75T
8	34339	CARRIER ASSEMBLY, STAGE 1
9	34342	CARRIER ASSEMBLY, STAGE 2
10	28432	CARRIER ASSEMBLY, STAGE 3
11	13874	SUN GEAR, 12T
12	27372	DRIVE SHAFT, 10.1
13		BUSHING, DRUM (Included in Kit #41)
14		SEAL, V-RING (Included in Kit #41)
15	14584	DRIVE SPLINE, W/RETAINING RING
16	32455	BRAKE ASSEMBLY (Includes item #'s 12, 15, & 17)
17	26006	COUPLER, MOTOR
18	26107	DRUM ASSEMBLY
19		SEAL, V-RING (Included in Kit #41)
20		BUSHING, DRUM (Included in Kit #41)
21	68607	DRUM SUPPPORT, MOTOR, 9.5 XP (Includes #'s 19 & 20)
22		GASKET, MOTOR
23	32408	TIE ROD (comes with two)
24	60451	BOLT,SHCS,THREAD CUT 5/16-18 x 1-1/4 (comes with four)
25	68608	MOTOR, 4.5 BOSCH,MH (Includes item #'s 22, 27, 28, & 39)
26	15901	CABLE, ELEC. 2GA, BLACK, 72"
27	1402	WASHER, 5/16-HELICAL
28	26744	CPSCR, M8x1.25 x 12-HEX HEAD
29		CPSCR 1/4-20 x 1/4, BUTTON HEAD
30	16463	TERMINAL, KIT, 5/16 WR (Includes #29)
31	68610	COVER, CONTROL PACK,9.5 XP (Includes all harness wires)
32	68379	SOLENOID,HIGH CURRENT (comes with two)
33	28396	SOLENOID,UPRIGHT TERMINALS (comes with two)
34	68384	CABLE, ELEC. 2GA, RED, 72"
35	68609	CONTROL PACK, 9.5 XP, (Includes #31, 32, 33, & 34)
36	38312	WIRE ROPE ASSEMBLY, 5/16 x 100' W/THIMBLE
37	63979	HOOK, 3/8 LATCHING HOOK
38	72568	S/P,REMOTE CONTROL W/FLASHLIGHT
39	13455	NUT, M8x1.25, HEX (comes with three)
40	5742	FAIRLEAD, ROLLER
41	68615	SEAL, KIT, 9.5 XP (Includes #'s 13, 14, 19, & 20)
42	68614	LABEL KIT,9.5 XP
	__________

Sold Out

WARN 26006 Winch Motor Coupler for M8000, XD9000, 9.5xp, 9.0rc

WARN 26006 - OBSOLETE - Replaced with 98394

$ 0.00

WARN 26744 Winch Motor Ground Bolt, M8 x 1.25 x 12mm Cap Screw

$ 4.28

WARN 27372 Winch Driveshaft for M8000, XD9000, 9.5xp & others

WARN 27372 Winch Driveshaft for M6000, M8000, XD9000, XD9000i, 9.5xp, 9.5xp-s

$ 21.36

WARN 32408WB Winch Tie Rod Set w/bolts, .625 X 8.92, Fitment chart in listing.

WARN 32408WB Winch Tie Rods, Set of 2 w/bolts, .625 X 8.92, Chart in listing

$ 43.48

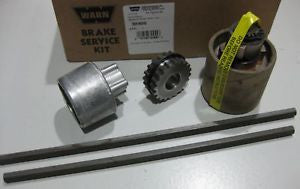

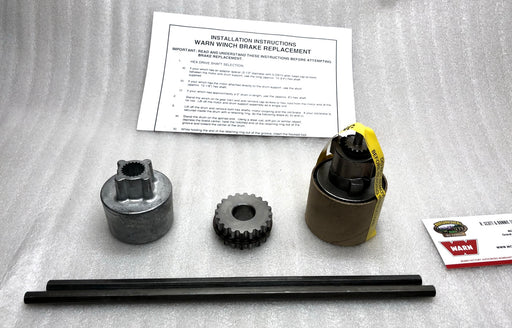

WARN 32455 Brake Assembly Kit, VR Series, 9.5xp-s, XD9000, M6000, M8000 Winches

$ 187.39

Sold Out

WARN 34342 Stage 2 Carrier, M6000, XD9000, 9.5ti, 9.5xp, 9.5cti, HS9500i, HY2000

WARN 34342 - Discontinued - Replaced by 98763

$ 0.00

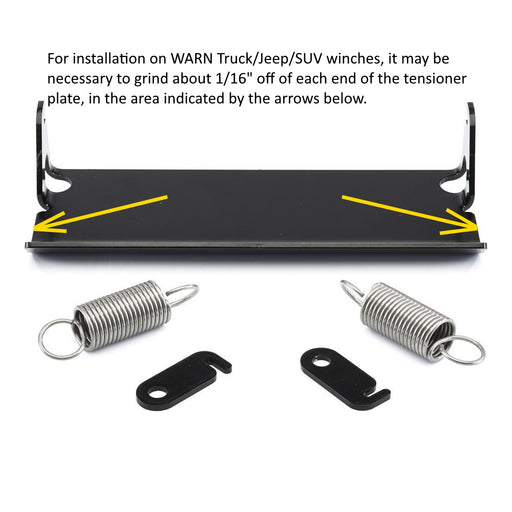

WARN 34373 Wire Rope Tensioner for Series 6 Industrial Winch

$ 207.66

WARN 63542 Winch V-Ring Drum Seal for Endurance 12.0 and 9.0Rc Winches

WARN 63542 Winch V-Ring Drum Seal, SINGLE, fitment in listing

$ 12.89

Sold Out

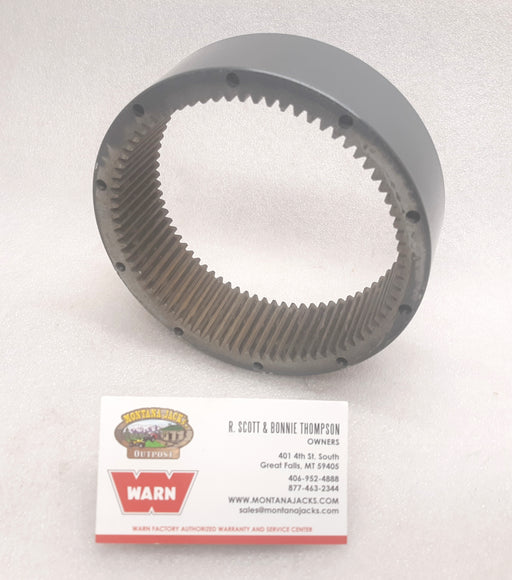

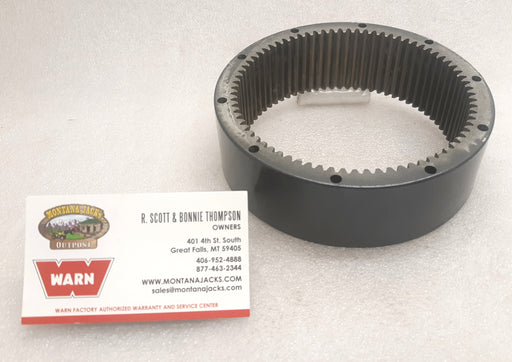

WARN 68044 Winch Ring Gear - USE WRN-98527

$ 0.00

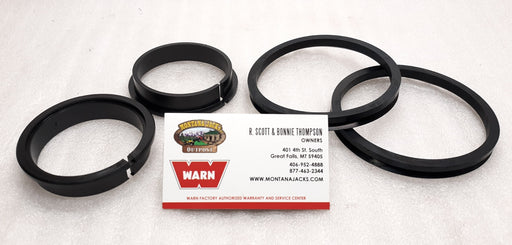

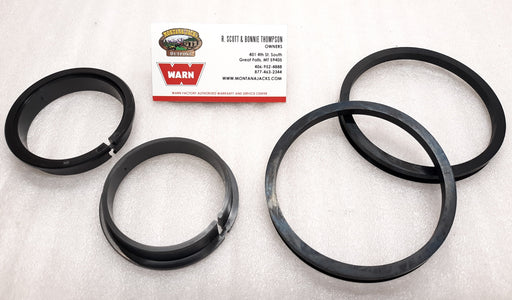

WARN 68615 Winch Seal Kit for 9.5xp and 9.5xp-s Truck/SUV Winches

$ 49.97

WARN 82215 Contactor Bracket for M6000, M8000, 9.0Rc, 9.5xp

$ 38.76

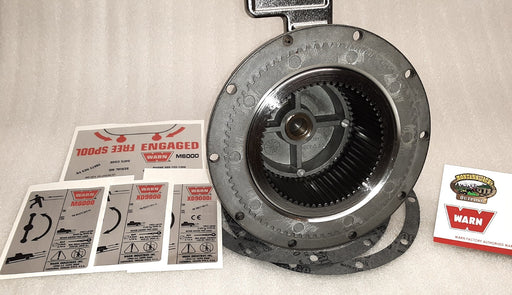

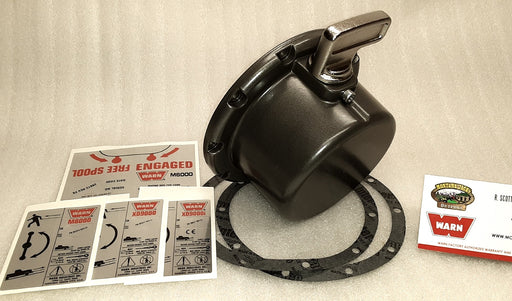

WARN 82554 Gear End Housing, Cast Lever, For M8000, XD9000, 9.5xp, HS9500

$ 183.99

WARN 90913 Winch Control Pack Cover for Mid Frame

$ 113.43

WARN 98279 Winch Tie Rod Set w/bolts, .625 x 8.92, Fitment chart in listing.

$ 43.48

WARN 98394 Winch Motor Coupler for M8000, XD9000, 9.5xp, 9.0rc....26006

$ 29.68

WARN 98763 Stage 2 Carrier, M6000, XD9000, 9.5ti, 9.5xp, 9.5cti, HS9500i, HY2000

$ 73.84
