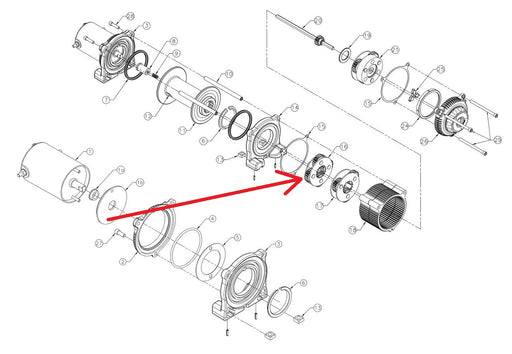

This is a parts list for WARN 4.0ci Winch Parts. The numbers in the circles correspond with the parts below. Choose the number you need from above and order the number below. If you don't see the part you need, please call and ask for tech support at 1-877-463-2344 or e-mail us at sales@montanajacks.com.

WARN 4.0ci Winch Parts

ITEM #

PART #

1


68898

2

69638

3

69636

4

65473

5

65473

6

69637 (comes with two)

7

65473

8

69634

9

69634

10

69639 (comes with two)

11

69635

12

68851

13

69626

14

69636

15

65473

16

69631

17

69630

18

69628

19

69629

20

69633

21

65327

24

65327

25

69632

26

69627

27

69626

28

69626

29

69626

44

39557

45

69646

46

69645

47

29256

60

69644

61

69652

62

69651

63

69650

64

69649

65

65673

66

64849

67

69648

68

64851
Sold Out WARN 69637 Drum Bushings (pair)

WARN 21296 - Discontinued - Replaced by 69637

$ 0.00

Sold Out WARN 65327 Winch Brake Kit for the 3.0ci ATV Winch

WARN 65327 ATV Winch Brake Kit for the 3.0ci & 4.0ci

$ 98.35

WARN 68851 Wire Rope, ProVantage 4500, Vantage 4000, 4.0ci, DC1000, 7/32" x 55'

WARN 68851 Wire Rope, ProVantage 4500, Vantage 4000, 4.0ci, DC1000, 7/32" x 55'

$ 63.57

WARN 68898 Winch Motor Kit for 4.0ci

WARN 68898 Winch Motor Kit for 4.0ci ATVUTV Winch

$ 178.86

WARN 69626 Winch Fastener Kit 3.0ci/4.0ci

WARN 69626 Winch Fastener Kit 3.0ci/4.0ci

$ 14.62

WARN 69628 Ring Gear Assembly for 3.0ci and 4.0ci ATV Winch

WARN 69628 Ring Gear Assembly for 3.0ci and 4.0ci ATV Winch

$ 52.51

WARN 69629 Bronze Thrust Washer for 3.0ci and 4.0ci ATV Winch

WARN 69629 Bronze Thrust Washer for 3.0ci and 4.0ci ATV Winch

$ 21.68

WARN 69630 Carrier Gear Assembly Stage 2, for 3.0ci and 4.0ci ATV Winch

WARN 69630 Carrier Gear Assembly Stage 2, for 3.0ci and 4.0ci ATV Winch

$ 29.68

WARN 69631 Carrier Gear Assembly, Stage 3, for 4.0ci ATV Winch

WARN 69631 Carrier Gear Assembly, Stage 3, for 4.0ci ATV Winch

$ 44.93

WARN 69632 Cam Follower Replacement

WARN 69632 Cam Follower for 3.0ci and 4.0ci ATV Winches, steel

$ 24.87

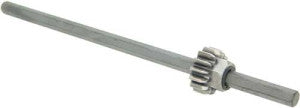

WARN 69633 Drive Shaft Assembly for 4.0ci ATV Winch

WARN 69633 Drive Shaft Assembly for 4.0ci ATV Winch

$ 21.54

Sold Out WARN 69634 Winch Coupler w/Spring for 3.0ci or 4.0ci ATV Winch

WARN 69634 Winch Coupler w/Spring for 3.0ci or 4.0ci ATV Winch

$ 19.54

WARN 69635 Aluminum Winch Drum for 4.0ci ATV Winch

WARN 69635 Aluminum Winch Drum for 4.0ci ATV Winch

$ 44.36

WARN 69636 Drum Supports for 4.0ci ATV Winch

WARN 69636 Drum Support Kit for 4.0ci ATV Winch

$ 49.52

WARN 69637 Drum Bushings (pair)

WARN 69637 Drum Bushings, ProVantage, Vantage, RT/XT, fitment chart in listing

$ 26.21

WARN 69638 Winch Motor Collar for 3.0ci and 4.0ci ATV Winch

WARN 69638 Winch Motor Collar for 3.0ci and 4.0ci ATV Winch

$ 29.34

WARN 69639 Tie Rod Kit (Pair), for 4.0ci ATV Winch

WARN 69639 Tie Rod Kit (Pair), for 4.0ci ATV Winch

$ 29.57

WARN 76429 ATV Winch Contactor for ProVantage 3500/4500, RT/XT 40, 4.0ci

WARN 76429 ATV Winch Contactor for ProVantage 3500/4500, RT/XT 40, 4.0ci

$ 92.87

WARN 77835 Synthetic Winch Rope w/roller fairlead, ProVantage 4500, Vantage 4000

WARN 77835 Synthetic Winch Rope w/roller fairlead, ProVantage 4500, Vantage 4000

$ 134.26

WARN 78388 Synthetic Winch Rope, ProVantage 4500, Vantage 4000, RT/XT 40, 4.0ci

WARN 78388 Synthetic Winch Rope, ProVantage 4500, Vantage 4000, RT/XT 40, 4.0ci

$ 115.40
