WARN 71550 9.0Rc 12 Volt Winch
Sold out
Original price
$ 0.00
-
Original price
$ 0.00
Original price
$ 0.00
$ 2,527.66
$ 2,527.66
-
$ 2,527.66
Current price
$ 2,527.66
| /
Availability:
Out of stock

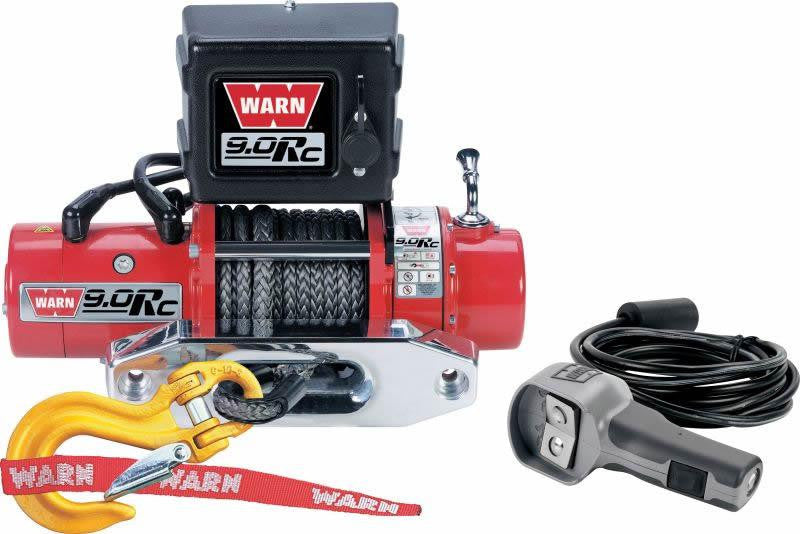

WARN 9.0Rc 12 Volt Winch
This item ships direct from WARN, please call for availability!
|
WARN 9.0Rc
A compact, lightweight winch for rock sports
|
Competitive rock crawling means tackling tough climbs, intense approach angles and tight turns. That's why rock crawling rigs need a low-profile, lightweight winch like the WARN 9.0Rc that delivers maximum power in a compact, 54-lb. unit. The 9.0Rc is a winch built for rock crawlers looking for efficiency, reliability and legendary WARN performance.
- 4.8 hp series wound motor delivers 9,000 lbs. of pulling capacity, and fast line speed under load
- Next-generation control pack delivers long duty cycles
- New-style remote control
- 50' of 3/8" (15 m of 9.5 mm) diameter synthetic rope combined with a rugged, 360-degree swivel hook and thimble
- Ballistic nylon sliding sleeve that provides extra rope protection against abrasion and wear
- Aluminum hawse fairlead
- Exclusive multi-segment cam actuated brake for positive operator control during winching
- Gloss red paint with primer undercoat gives superior corrosion resistance
|
| 9.0Rc SPECS/PART NUMBER |
|
Winch Model: WARN 9.0Rc |
|
Part Number: 71550 |
|
Rated Line Pull: 9,000 lbs. (4080 kgs) single-line |
|
Motor: Series Wound, 12V 4.8 hp |
|
Electrical controls: Contactor |
|
Remote Control: Remote switch, 12' (3.7m) lead |
|
Geartrain: 3-Stage Planetary |
|
Gear ratio: 216:1 |
|
Clutch (freespooling): Sliding Ring Gear |
|
Brake: Automatic mechanical cone brake |
|
Drum diameter/Length: 2.75 in/4.75 in (7.0cm/12cm) |
|
Weight: 54 lbs. (24.8kgs.) |
|
Rope: 50 ft, 3/8 in (15m, 9.5mm) Spydura synthetic Rope |
|
Fairlead: Polished Aluminum Hawse |
|
Recommended Battery: 650 CCA minimum for winching |
|
Battery leads: 2 gauge, 72 in (1.83m) |
|
Finish: Gloss red paint over primer undercoating |
|
| PERFORMANCE SPECIFICATIONS |
Line Pull
Lbs.(Kgs.) |
Line Speed
FT./min(M/min.) |
Motor
Current |
Pull by layer
layer/Lbs(Kgs.) |
| 0 |
32 (9.75) |
85 amps |
1/9000 (4082) |
| 2000 |
16 (4.88) |
187 amps |
2/7280 (3302) |
| 4000 |
11.4 (3.47) |
284 amps |
3/6670 (3026) |
| 6000 |
8.9 (2.71) |
367 amps |
4/6230 (2826) |
| 8000 |
6.8 (2.07) |
458 amps |
|
| 9000 |
5.6 (1.70) |
408 amps |
|
|
| |
| Above performance specs are based on first layer of drum |
|
|
Winch Dimensions: 16.8" L. x 6.3" D. x 7.6" H. (427mm L. x 160mm D. x 194mm H.) |
|
Mounting Bolt Pattern: 6" x 4.5" (151mm x 114.3mm) |
|
Buy with confidence from Montana Jack's, we are your WARN Authorized Warranty and Service Center.
We are a Factory Direct WARN Distributor and we stand behind our WARN products for the full manufacturer's warranty period.
WRN-71550
|
|
