Find your mount number in the table below, then scroll down too see the mounts.
Please pay attention to the red footnotes, they're listed below the main table

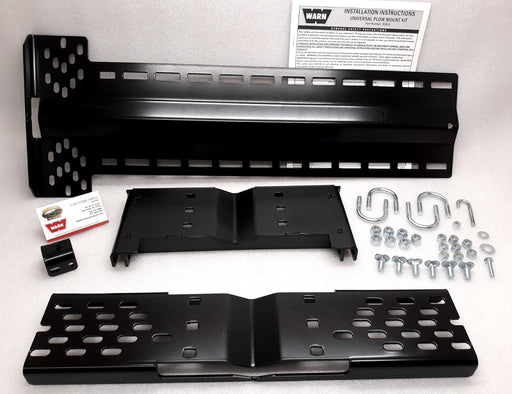

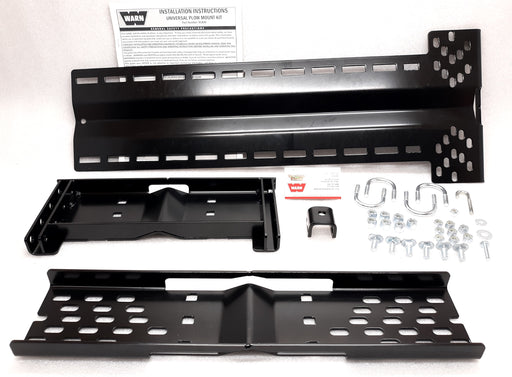

NOTE!! - If there is no mount listed for your quad, we have a Universal Center Mount that will fit most, part # WRN-91810, it is listed below.
| ARCTIC CAT | ||||
| YEAR | MODEL |
CENTER PLOW MOUNT KITS AQ |
FRONT PLOW MOUNT KITS AR - AS |
COMMENT |

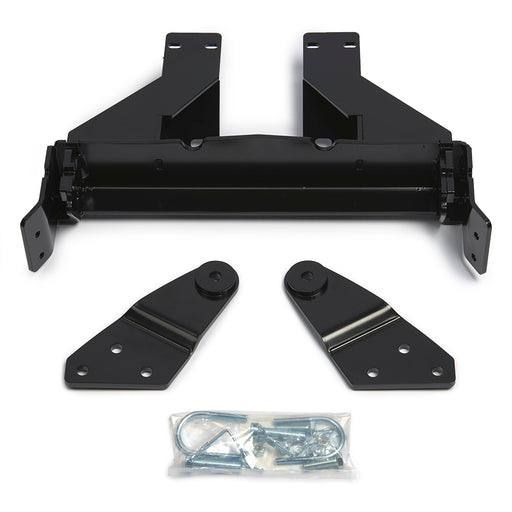

| 16-17 | Alterra 700 & 700XT | 63294 | 97596 | Installation Video |

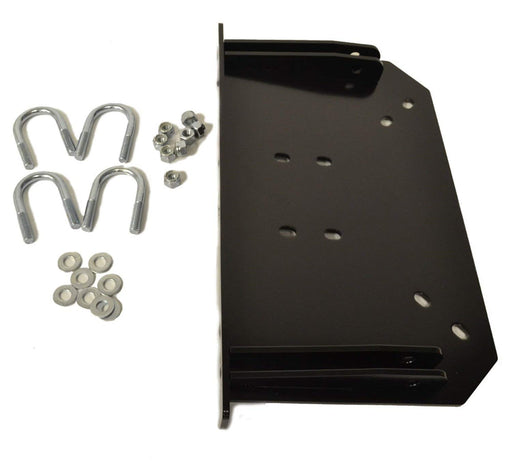

| 16-18 | Alterra 400 | 85260 | 96970 | Installation Video |
| 16-17 | Alterra 450 | Installation Video | ||

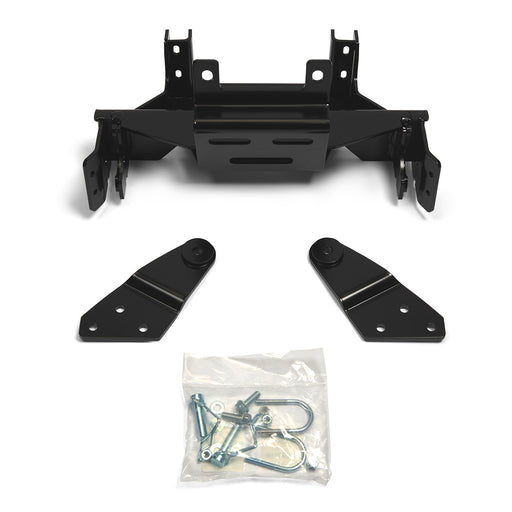

| 16-17 | Alterra 700 Touring | 97212 | Installation Video - 97257 | |
| 02-05 | 250 2X4, 4X4 | |||
| 06-13 | 250 2X4 | |||
| 02-005 | 300 2X4 | |||
| 2010 | 300 2X4 | |||
| 12-16 | 300 2x4 | |||
| 08-12 | 350 4X4 | 85260 | ||
| 08-12 | 366 4X4 Automatic | 85260 | ||

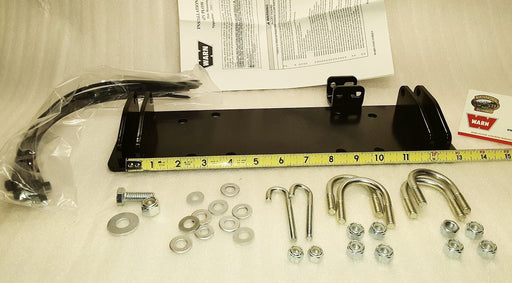

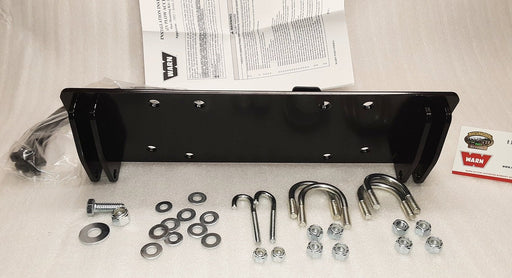

| 2002 | 375 Automatic 2X4, 4X4 | 63294 | 84354 | |
| 2002 | 400 i 2X4, 4X4 | 63294 | 84354 | |
| 03-04 | 400 2X4 (Automatic) | 63294 | 84354 | |
| 03-08 | 400 4X4 (Automatic) (ACT) (VP) | 63294 | 84354 | |
| 2004 | 400 Automatic TBX 4X4 | 63294 | 84354 | |
| 05-07 | 400 Automatic (TBX) (LE) 4X4 | 63294 | 84354 | |
| 07-10 | 400 Automatic TRV 4X4 | 63294 | 84354 | |
| 06-12 | 400 Automatic VP 4X4 | 63294 | 84354 | |
| 13-15 | 400 4X4 (CR) | 85260 | 96970 | |
| 16-17 | 400 (ALT) | 85260 | 96970 | |
| 11-12 | 425 4X4 (CR) (CR EFI) | 85260 | 96970 | |
| 13-15 | 450 4x4 (CR) | 85260 | 96970 | |
| 10-12 | 450 4x4 (EFI) (GT) | 63294 | 84354 | |
| 2016 | 450 (ALT) | 85260 | 96970 | |
| 98-01 | 500 4X4 | 37853 | ||
| 00-01 | 500 Automatic 4X4 | 60940 | ||
| 2002 | 500i Automatic 4X4 | 63294 | 84354 | |
| 02-04 | 500 4X4, Automatic (TBX) 4X4 | 63294 | 84354 | |
| 05-09 | 500 4x4 (Auto) (Manual) | 63294 | 84354 | |
| 04-08 | 500 Automatic TRV 4X4 | 63294 | 84354 | |
| 09-16 | 500 4X4 (H1) (XT) (TRV) (MID-SIZE) | 63294 | 84354 | |
| 15-16 | 500 4X4 (XR) (XT) | 63294 | 84354 | |
| 2017 | 500 4X4 (XR) (ALT XT) | 63294 | 97596 | |
| 13-17 | 500 4X4 | 63294 | 84354 | |
| 2017 | 500 4X4 (ALT TRV) | 63294 | 97212 | |
| 2017 | 500 4X4 (ALT) | 85260 | 96970 | |
| 09-14 | 550 4X4 (XT) (LTD) (GT) (H1 EFI) | 63294 | 84354 | |
| 09-17 | 550 4x4,(TRV LTD) (TRV XT) (TRV CUR) (TRV GT) (TRV H1) | 63294 | 84354 | |
| 15-17 | 550 4X4 (XR EFI) (XR XT EFI) (XR LTD EFI) (ALT EFI) (ALT XT EFI) (ALT) | 63294 | 97596 | |
| 16-17 | 550 4X4 (ALT TRV) (ALT TRV XT) | 63294 | 97212 | |
| 2004 | 650 4X4 | 63294 | 84354 | |
| 05-11 | 650 TBX H1 LE TRV 4X4 | 63294 | 84354 | |
| 06-11 | 700 4x4 (H1 EFI)(H1 EFI TBX)(TRV)(TRV H1 EFI) | 63294 | 84354 | |
| 06-11 | 700 4x4 (Auto) (Auto EFI) (Diesel)(TRV Cruiser) | 63294 | 84354 | |
| 12-16 | 700 4x4 (GT)(GT LTD)(Mud Pro)(Mud Pro LTD)(LTD)(XT) | 63294 | 84354 | |
| 12-16 | 700 4x4 (TBX)(TRV LTD)(TRV XT)(TBX SE)(TRV SE) | 63294 | 84354 | |
| 15-17 | 700 4X4 (XR)(XR LTD)(XR XT)(ALT)(ALT XT) | 63294 | 97596 | |
| 2017 | 700 4X4 (ALT TRV XT) | 63294 | 97212 | |
| 11-16 | 1000 (XT) (EPS) (TRV GT) (GT) | 63294 | 84354 | |
| 2017 | 1000 4X4 (ALT TRV XT) | 63294 | 84354 | |
| 09-10 | 1000 H2 TRV 4X4 | 63294 | 84354 | |
| 2010 | 1000 H2 Cruiser TRV 4X4 | 63294 | 84354 | |
| 13-15 | 1000 4X4 (TRV LTD)Â | 63294 | 84354 | |
| 96-98 | Bear Cat 454 4X4 | 37853 | ||
| 2010 | MudPro 650 H1 4X4 | |||
| 09-16 | MudPro 700 H1 EFI 4X4 (LTD EPS) (LTD) | 63294 | 84354 | |
| 10-16 | MudPro 1000 H2 EFI 4X4 (LTD EPS) (SE) | 63294 | 84354 | |

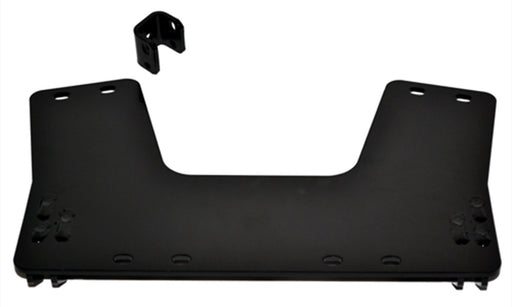

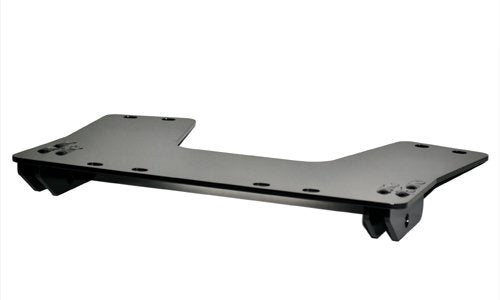

| 08-10 | Thundercat 1000 H2 (LE) 4X4 | 80582 | 84354 | |
| FOOTNOTES | |
| AQ | Compatible with 78100 and 86528 plow bases |
| AR | Compatible with appropriate 92100 (ATV) or 79805 (Side X Side) plow bases |
| AS | Not compatible with 2.5ci or A2000 Winches |
Mounts showing "Sold Out" can normally be drop shipped from WARN quickly, please call to verify availability.
