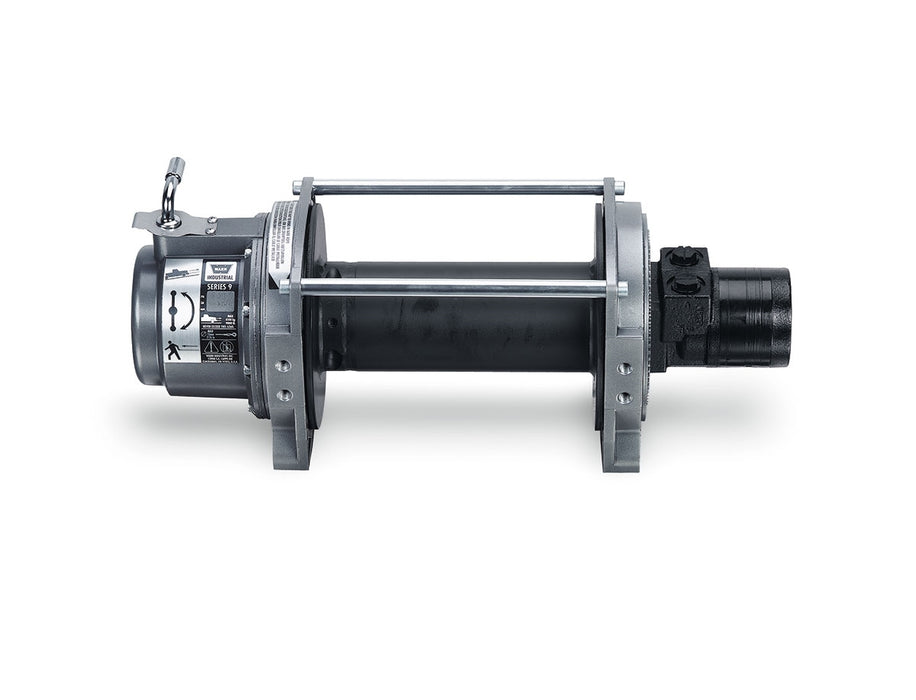

WARN Series 9 Industrial Hydraulic Winch
|
|
| Dependable Workhorse with 7,500 lbf. of Pulling Power |
- Perfect for tow, utility and trailer applications
- Hardened steel, two-stage planetary geartrain provides faster line speeds
- Heavy-duty automatic disc brake provides dependable operation
- 3.0 cu. in. hydraulic motor
- Meets SAE J706 and CE standards
- Wire rope, roller fairlead, and tensioner sold separately
|
PN 30279 (Anti-clockwise, 3.0 cu in motor) |
|
|
| 9 HYD SPECS/PART NUMBERS |
|
Part Number: 30279 (Anti-clockwise, 3.0 cu in motor) Note: Due to the hydraulic motor sizing, this winch is designed for increased linespeed with a Rated Pulling Force of 7500 lbf (3402 kgf). |
|
Rated Pulling Force for PN 30279: 7500 lbf (3402 kgf) |
|
Drum Barrel Diameter: 4.00 in (102 mm) |
|
Drum Flange Diameter: 8.24 in (209 mm) |
|
Distance Between Flanges: 9.95 in (253 mm) |
|
Recommended Maximum Wire Rope Diameter: 1/2 in (12.7 mm) |
|
Recommended Minimum Wire Rope Breaking Strength: 15,100 lbf (6849 kgf) |
|
Duty Cycle (intermittent per SAE J706 section 6.2) for PN 30279: 305 ft (93 m) |
|
Mounting Bolt Torque: 35-40 ft*lbf (47-54 N*m) |
|
Maximum Layers of Wire Rope: 4 (with 3/8" dia. rope) |
|
Gear Reduction: 27:1 |
|
Brake Type: Disk |
Standards Compliance PN 30279:
SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC |
|
| ACCESSORIES |
|
Wire Rope Tension Plate 10'': PN 31149 |
|
Fairlead Black 10'': PN 24336 |
|
Fairlead Chrome 10'': PN 30859 |
|
Remote Clutch Mechanical: PN 38316 |
|
Remote Clutch Air: PN 71370 |
|
Wire Rope Assembly 3/8''x125' EIPS: PN 23674 |
PN 30279
PERFORMANCE DATA BY LAYER - 3/8" (9.5 mm) dia. rope |
|
| Drum |
Line Load * |
Line Speed 10 GPM |
Line Speed 15 GPM |
Drum Capacity |
| Layer |
lbf |
kgf |
kN |
ft/min |
m/min |
ft/min |
m/min |
ft |
m |
| 1 |
7500 |
3402 |
33.4 |
35.0 |
10.7 |
47.0 |
14.3 |
25 |
7.6 |
| 2 |
6400 |
2903 |
28.5 |
41.1 |
12.5 |
55.0 |
16.8 |
54 |
16.5 |
| 3 |
5585 |
2533 |
24.8 |
47.1 |
14.4 |
63.1 |
19.2 |
88 |
26.8 |
| 4 |
4953 |
2247 |
22.0 |
53.1 |
16.2 |
71.1 |
21.7 |
126 |
38.4 |
* Never exceed the Rated Pulling Force. Installation of a Rated Capacity Limiter is recommended. |
PN 30279
FIRST LAYER PERFORMANCE |
| Line Load |
Pressure Drop at 10 GPM |
Pressure Drop at 15 GPM |
Duty Cycle |
| lbf |
kgf |
psi |
BAR |
psi |
BAR |
min/10min |
| 0 |
0 |
250 |
17.2 |
400 |
27.6 |
N/A |
| 1500 |
680 |
640 |
44.1 |
810 |
55.8 |
N/A |
| 3000 |
1361 |
1070 |
73.8 |
1290 |
88.9 |
N/A |
| 4500 |
2041 |
1530 |
105.5 |
1750 |
120.7 |
N/A |
| 6000 |
2722 |
2000 |
137.9 |
2200 |
151.7 |
N/A |
| 7500 |
3402 |
2600 |
179.3 |
(1) |
(1) |
N/A |
| 9000 |
4082 |
(1) |
(1) |
(1) |
(1) |
N/A |
Note: (1) Do Not Exceed 2600 psi motor pressure drop. |
|
|
