WARN 26502 M8 12V Truck/SUV Winch, 8000 lbs., Lifetime Warranty!

by Warn
Original price $ 0.00 - Original price $ 0.00
Original price $ 0.00
$ 1,410.24
$ 1,410.24 - $ 1,410.24
Current price $ 1,410.24
Availability:
Only 2 left!

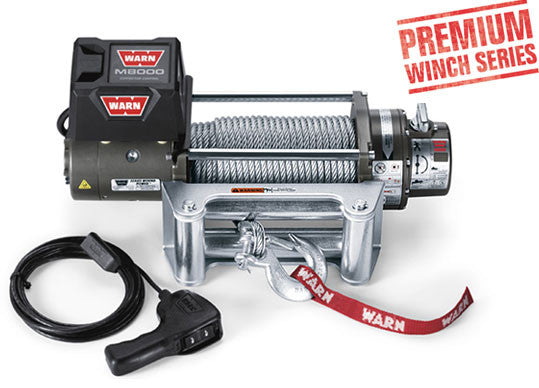

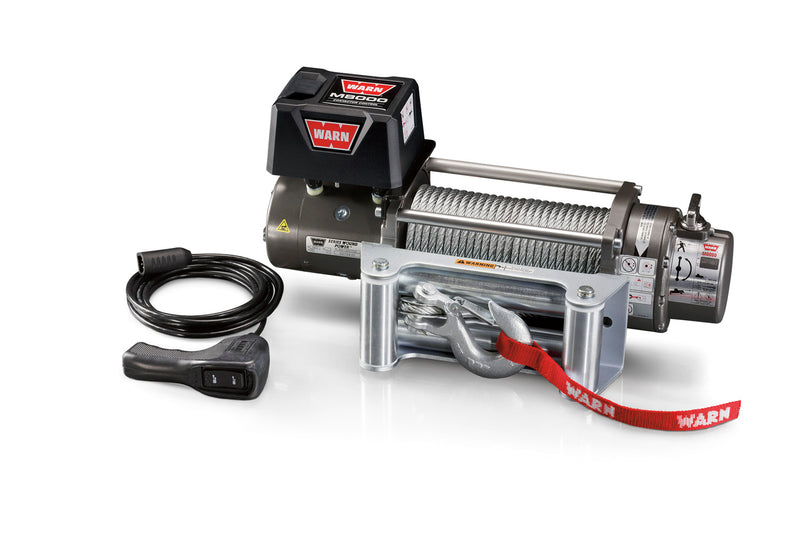

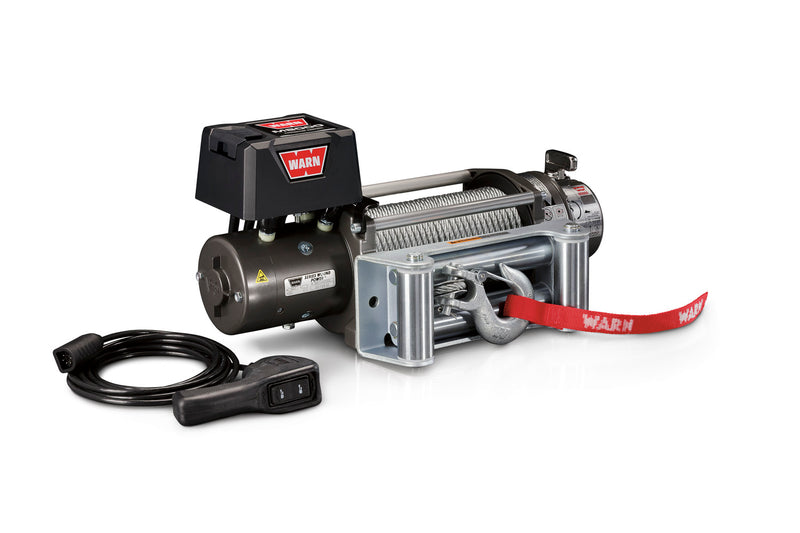

WARN M8 12V Winch



WARN M8
Compact, tough and reliable
The M8 winch has been trusted by off-roaders for over twenty years. This 8,000 lb. capacity winch offers outstanding reliability and value. Its low-profile design allows for a variety of mounting options, making it perfect for most trucks, Jeeps and SUVs.
  • Premium Series winch that delivers classic design, proven performance, and legendary WARN reliability
  • Contactor control box and hand-held, corded remote control
  • Low-profile design and separate control box allows for a wide range of mounting options
  • Exclusive brake design provides superior control while winching

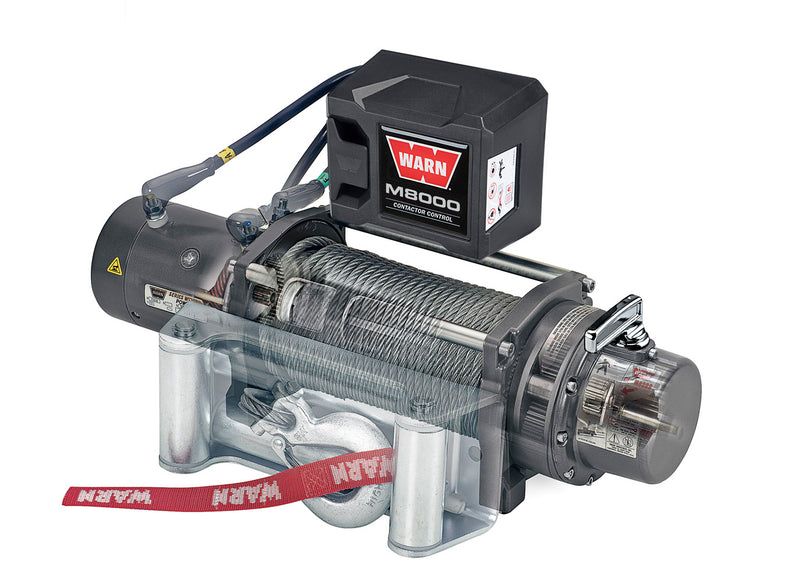

  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Series-wound, high-speed motor provides fast line speed and strong
  • pulls
  • Chip-resistant powder-coated finish
  • 100' of steel or synthetic rope
M8 SPECS/PART NUMBERS
Winch model: M8
Part number: 26502 (wire rope, 12V)
Part Number: 88502 (wire rope, 12V, CE, International sales only)
Rated line pull: 8,000 lbs., (3630 kgs.) single-line
Motor: Series Wound, 12V 4.8 hp
Electrical controls: Contactor
Remote Control: Remote switch, 12' (3.7m) lead
Gear train: 3-Stage Planetary
Gear ratio: 216:1
Clutch (freespooling): Sliding ring gear
Brake: Automatic mechanical cone
Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 74 lbs. (34 kgs)
Rope: Steel -- 100', 5/16" diam. (30m, 8mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Argent gray powder coat
12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 30.2 (9.20) 80 amps 1/8000 (3629)
2000 (910) 14.2 (4.33) 200 amps 2/7280 (3302)
4000 (1810) 9.9 (3.02) 285 amps 3/6670 (3026)
6000 (2720) 7.3 (2.22) 350 amps 4/6230 (2826)
8000 (3630) 4.8 (1.46) 435 amps
Above performance specs are based on first layer of drum
Winch Dimensions: 21.04" L. x 6.3" D. x 7.6" H.
(534mm L. x 160m D. x 193mm H.)

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)

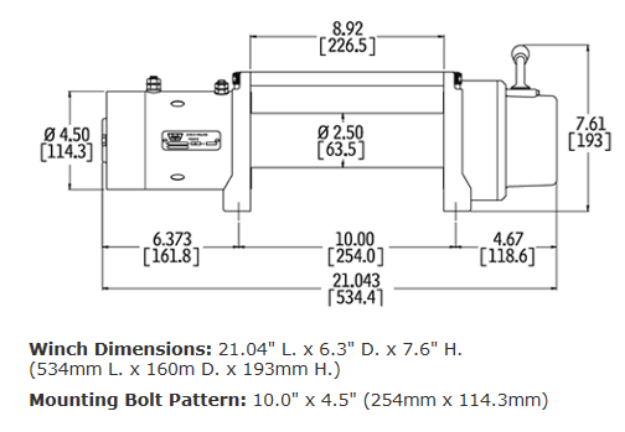

 M8 dimensions

 Winch Dimensions: 21.04" L. x 6.3" D. x 7.6" H.
(534mm L. x 160m D. x 193mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)

Buy with confidence from Montana Jack's, we are your WARN Authorized Warranty and Service Center.
We are a Factory Direct WARN Distributor and we stand behind our WARN products for the full manufacturer's warranty period.
