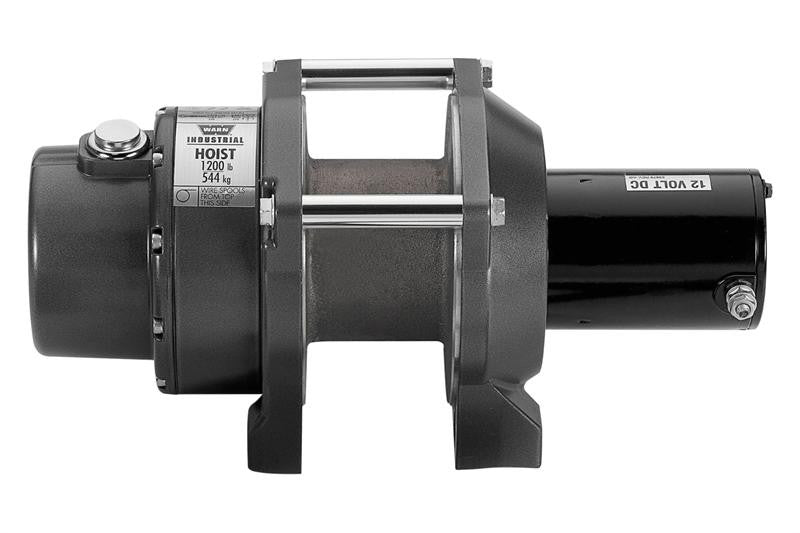

The DC1200 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC1200 hoist is built on a compact midsize framed with integrated tie bars that's easy to install. Controls and accessories available separately.
DC1200 SPECS/PART NUMBERS
Part Number: 64254 12V
Rated Capacity: 1200 lbf (544 kgf)
Drum Barrel Diameter: 3.5 in (89 mm)
Drum Flange Diameter: 6.0 in (152 mm)
Distance Between Flanges: 2.7 in (69 mm)
Recommended Maximum Wire Rope Diameter: 3/16 in (4.8 mm)
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)
Mounting Bolt Torque: 32-34 ft*lbf (43 - 46 N*m)
Maximum Layers of Wire Rope: 4
Gear Reduction: 216:1
Brake Type: Automatic Cone
Contactor/Remote Type: Not Included
Standards Compliance: CE Machinery Directive 98/37/EC and 2006/42/EC CE Electromagnetic Compatibility 2004/108/EC ASME B30.5
ACCESSORIES
Control Pack-12V: PN 63926
Contactor Only-12V (Standard bracket): PN 83321
Contactor Cover (with remote plug): PN 36648
Contactor Cover (w/o remote plug): PN 35169
Remote Control Only: PN 88528
PERFORMANCE BY LAYER - 12V
Drum Layer
Line Load *
No Load Line Speed
Drum Capacity
lbf
kgf
kN
ft/min
m/min
ft
m
1
1200
544
5.3
23.5
7.2
13
4.0
2
1090
494
4.8
25.8
7.9
27
8.2
3
1000
454
4.4
28.2
8.6
42
12.8
4
920
417
4.1
30.6
9.3
58
17.7
* Never exceed the Rated Capacity. Installation of a Rated Capacity Limiter is recommended.
FIRST LAYER PERFORMANCE - 12V
Line Load
Current Draw
Line Speed
Duty Cycle
lbf
kgf
Amps
ft/min
m/min
min/10min
0
0
20
23.5
7.2
2.5
300
136
39
21.0
6.4
2.2
600
272
57
19.0
5.8
1.9
900
408
77
17.0
5.2
1.6
1200
544
100
15.0
4.6
1.3
